VOLT

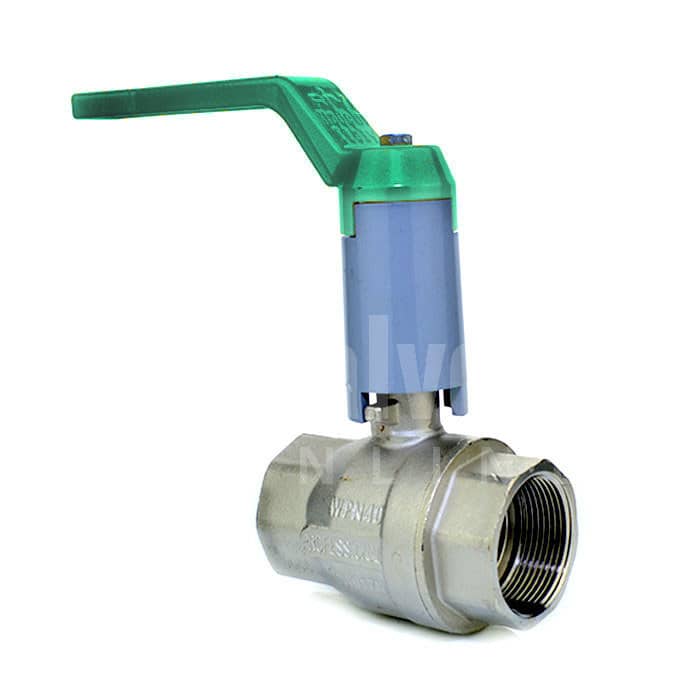

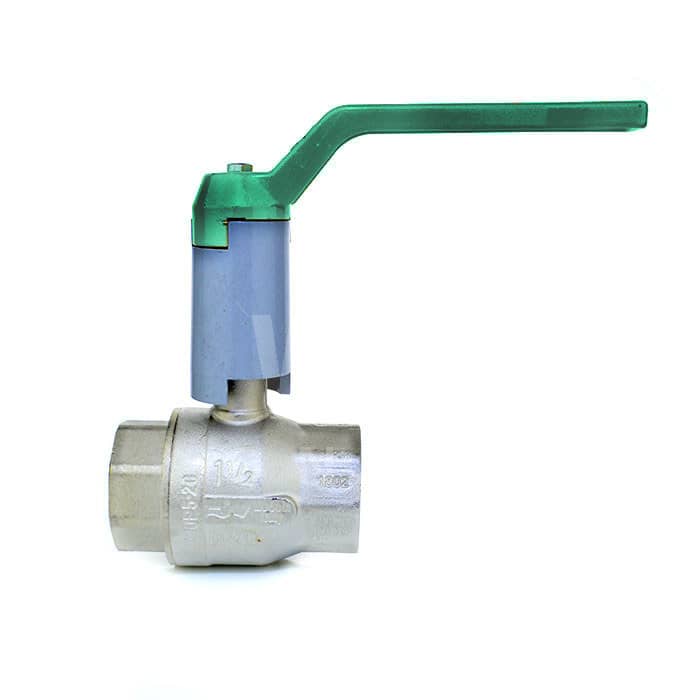

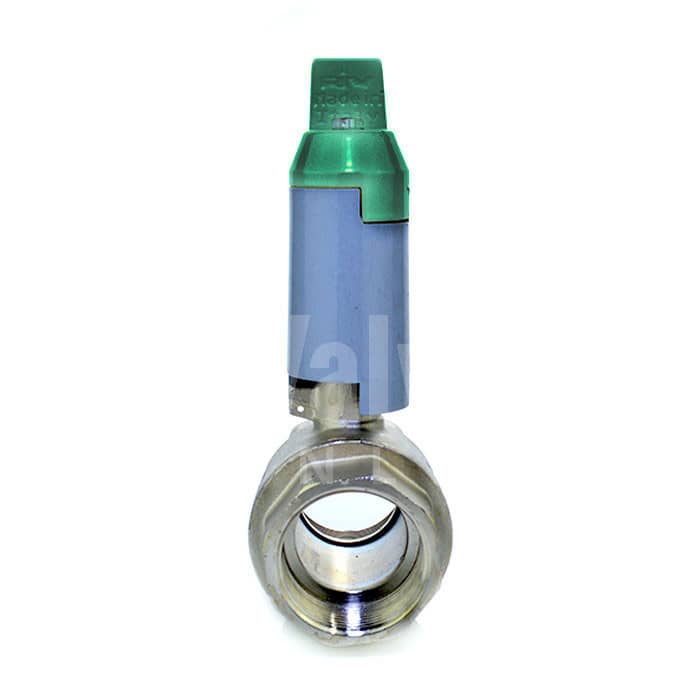

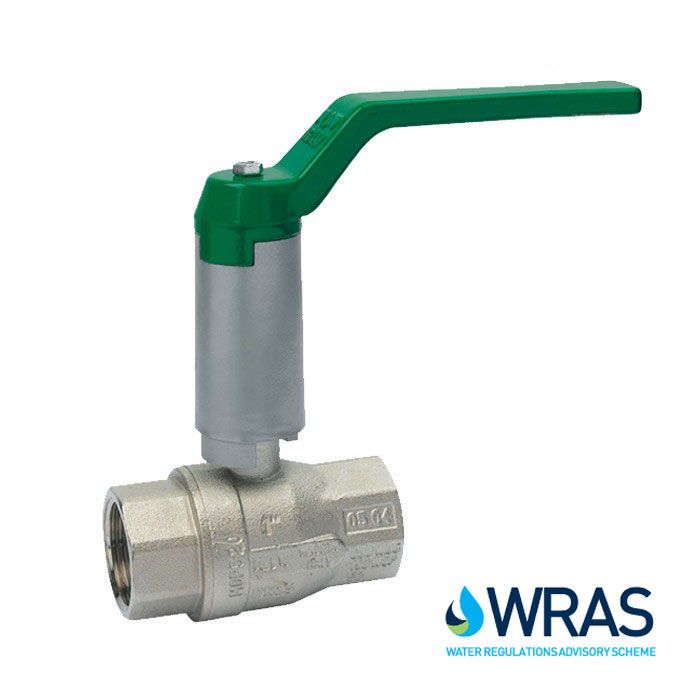

WRAS Approved Brass Ball Valve with Extended Neck
SKU BV5067
Price on request Not the right one? Identify your valve by photo
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- WRAS Approved Brass Ball Valve
- Extended Neck
- Brass Nickel Plated Body
- Green Handle
- PTFE seals
- BSPP End Connections
- Sizes 1/2" to 4"
- Temperature range: -20°C to 110°C
- WRAS Approved
Description
Our WRAS Approved Brass Ball Valve with Neck Extension is suitable for a range of media and applications; isolation of industrial and domestic process, heating, hot water, cold water, oil and air.
The extended neck rotates when the handle is turned and is ideal for use with thermal insulation.
Pressure rating: PN40 (1/4" to 1/2"), PN32 (3/4" to 1"), PN25 (1 1/4" to 2 1/2") and PN16 (3" to 4").
Technical specification
- End Connection
- BSP, BSPP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 2 Piece, Full Bore, Female x Female
- Industry / Approvals
- WRAS, HVAC
- Lever
- Manual Lever with Neck Extension
- Temperature Range
- -20°C to 110°C
- Pressure
- Up to: PN40 (1/2"), PN32 (3/4" to 1"), PN25 (1 1/4" to 2 1/2"), PN16 (3" to 4")
- Actuatable?
- No - Manual Only
