Images are illustrative and may not show every size or variation.
VOLT
2 Piece Direct Mount Stainless Steel Ball Valve
SKU BV5501
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Suitable for Actuation
- 2 Piece ball valve with Bare Stem
- Direct Mount
- A351 CF8m 316 Stainless Body & Ball
- PTFE Seats
- Up to 1000 PSI / PN63
- Temperature up to 180°C
- BSP Screwed End Connection
- Sizes: 1/4” – 4”
Description

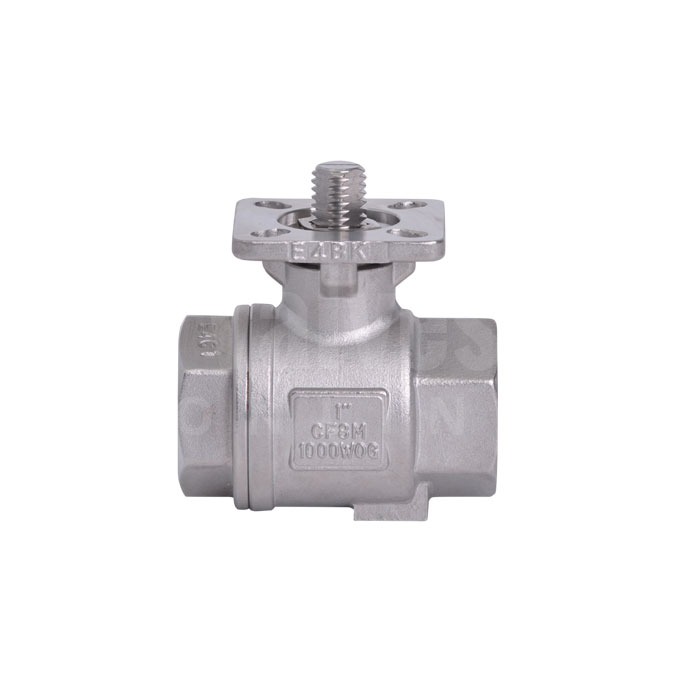

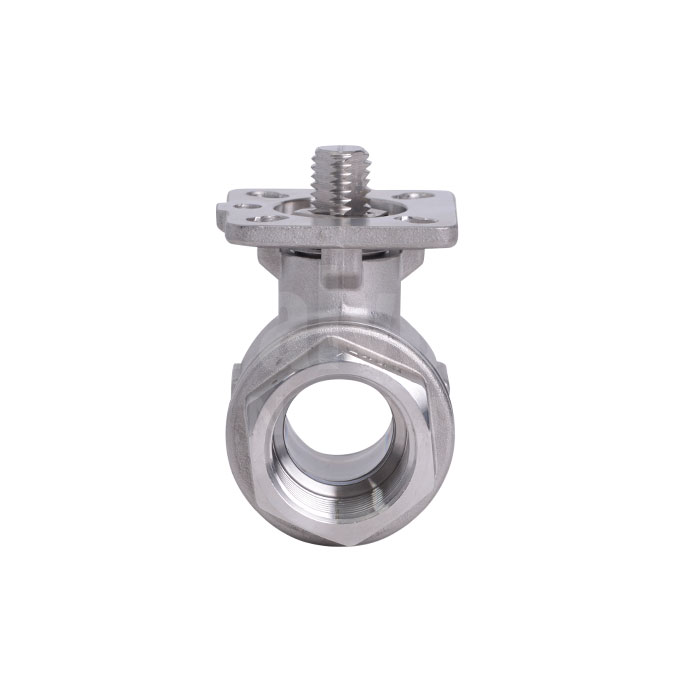

A Stainless Steel full bore 2 piece Ball Valve with a Direct Mount ISO top plate for easy actuation.
The valve offers safe operation in many industrial and chemical applications.
This ball valve comprises of an A351 CF8M Stainless Steel body, ball and stem with PTFE seats, Screwed BSP end connections and supplied bare stem.
Used for automatic automation on a wide range of liquid and gaseous duties. Easy to actuate with either pneumatic or electric actuators
Technical specification
- End Connection
- BSP
- Body Material
- Stainless Steel
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 2 Piece, Full Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process
- Lever
- No - Bare Shaft Only
- Temperature Range
- -20°C to +180°C
- Pressure
- Up to 1000 PSI / PN63
- Actuatable?
- Yes - features ISO Direct Mount Top Plate
