Images are illustrative and may not show every size or variation.
VOLT

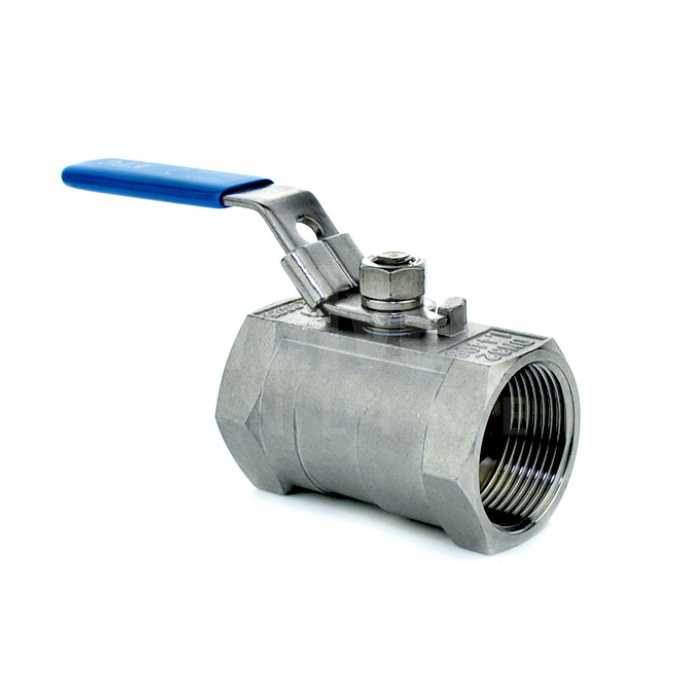

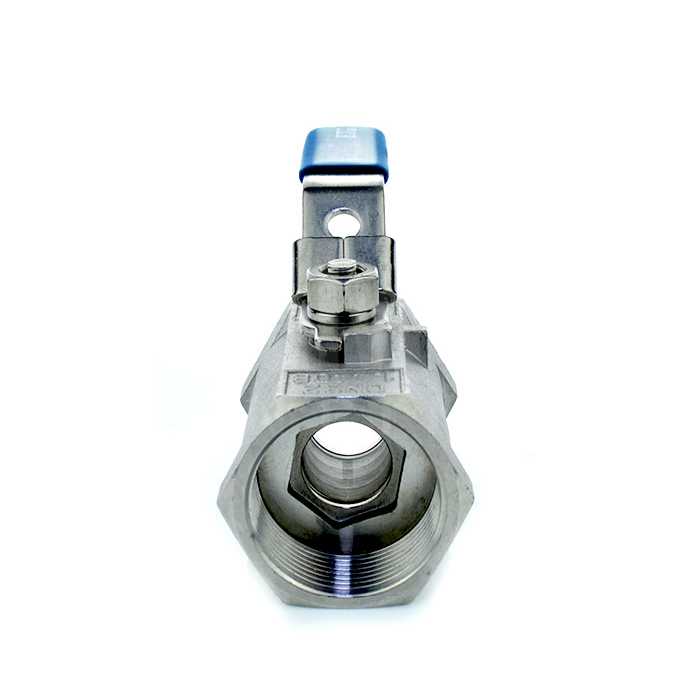

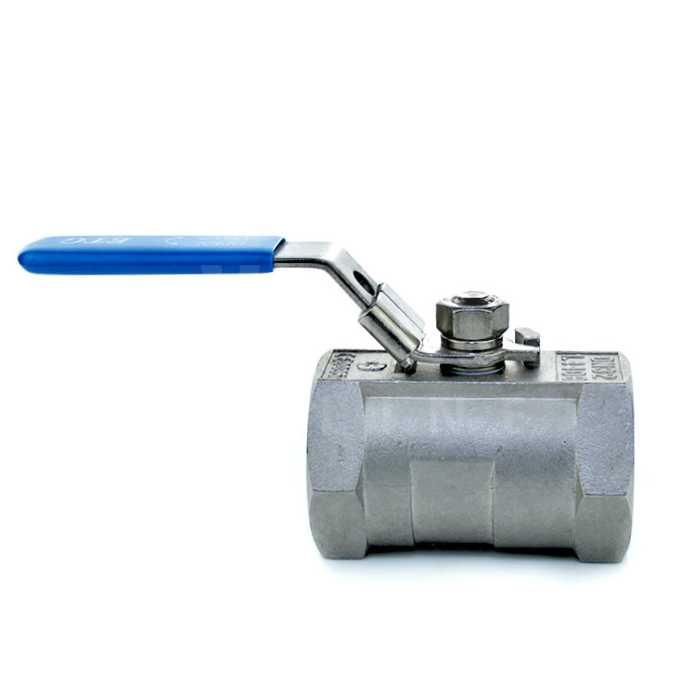

1 Piece Stainless Steel Economy Ball Valve
SKU BV5104
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Economy Ball Valve
- CF8M Stainless Steel One-Piece Body
- Screwed BSPP, NPT, BSPT
- Sizes: 1/4" to 2 1/2", Reduced Bore
- Temperature range: -20°C to +180°C
- 800 PSI Rated
Description
Series 10LC Stainless Steel Economy Ball Valve is a non-maintainable one piece, reduced bore ball valve; providing safe operation for both general and industrial chemical applications.
An economical, compact and reliable, female/female ball valve with CF8M Stainless Steel body and PTFE seat.
Used to 'shut-off' medium flows on a wide range of liquid and gaseous duties including drain and blow down, gauge isolation and test points.
Features a blow-out proof stem and insulated grip, lockable lever handle.
A budget range of economical, unbranded products designed to offer maximum savings.
Technical specification
- End Connection
- BSPT, BSPP, NPT
- Body Material
- Stainless Steel
- Seal Material
- PTFE
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65)
- Design
- 1 Piece, Reduced Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process
- Lever
- Lockable Manual Lever
- Temperature Range
- -20°C to +180°C
- Pressure
- Up to 800 PSI
- Actuatable?
- No - Manual Operation Only
