VOLT

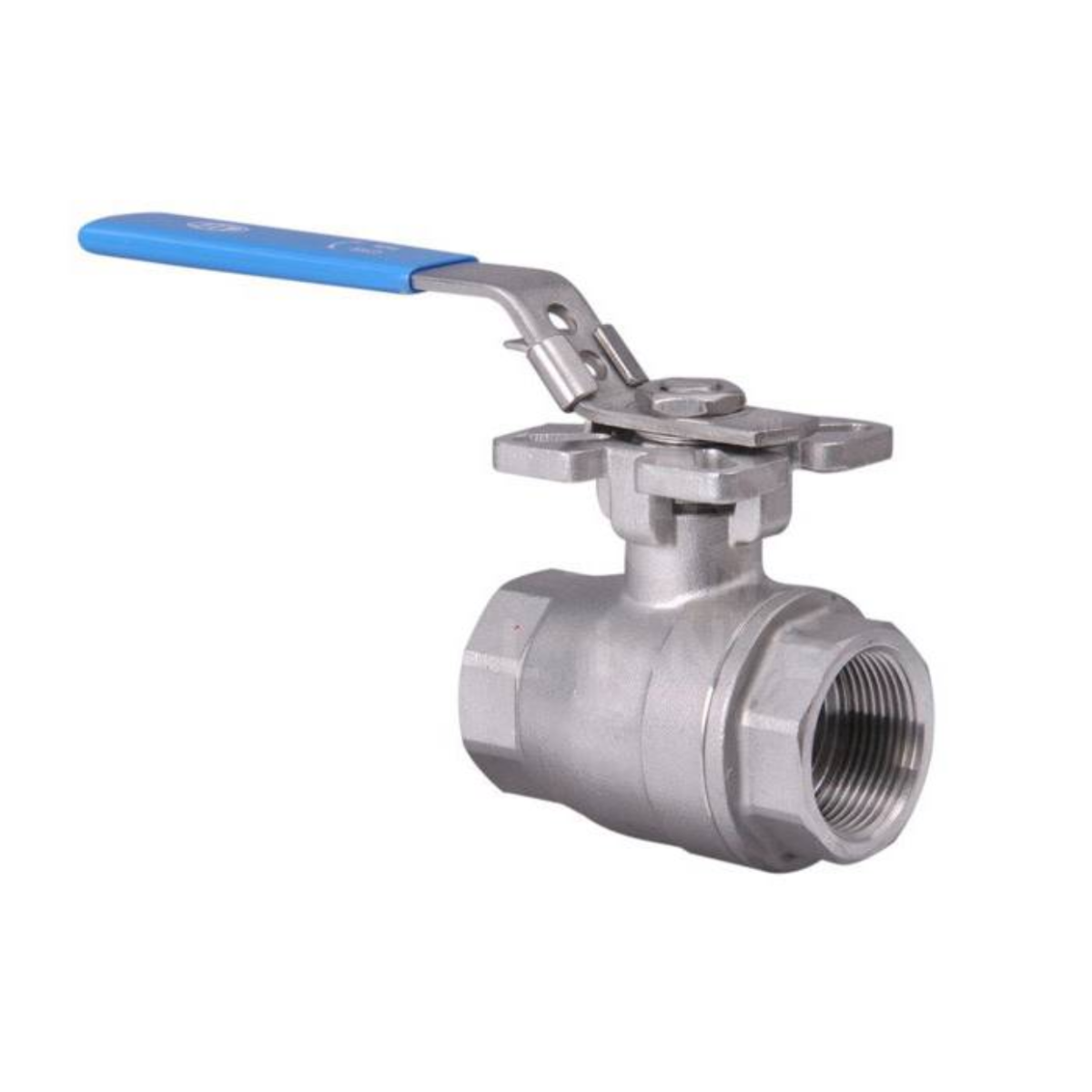

2 Piece Heavy Duty Stainless Steel Ball Valve
SKU BV5015
from£64.03ex VAT Not the right one? Identify your valve by photo
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Heavy Duty 2 Piece Ball Valve
- CF8M Stainless Steel Body
- BSPP End Connections
- Full Bore
- TFM 4215 High Temperature Seats
- Sizes 1/2" to 3"
- Pressure Rating:
- 2000 PSI up to 1"
- 1500 PSI up to 3"
- Temperature Range: -20°C to 200°C
Description
2 Piece Heavy Duty Stainless Steel Ball Valve, Full Bore, Direct Mount is suitable for steam and high temperature media.
An ATEX approved, high pressure ball valve with CF8M Stainless Steel body, TFM 4215 ball seats and Grafoil body / stem seals.
Features an ISO 5211 mounting top for easy actuation and a Ta-Luft self adjusting stem.
Nace MR-0175 compliant.
Silicone free valve suitable for use with oil based paints.
Technical specification
- End Connection
- BSP, BSPP
- Body Material
- Stainless Steel
- Seat Material
- TFM 4215
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
- Design
- 2 Piece, Full Bore, Female x Female
- Industry / Approvals
- ATEX, HVAC, High Temperature
- Lever
- Manual Lockable Lever
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to: 2000 PSI (1/2" to 1"), up to: 1500 PSI (1 1/4" to 3")
- Actuatable?
- Yes - ISO Mounting Pad
