Images are illustrative and may not show every size or variation.
VOLT

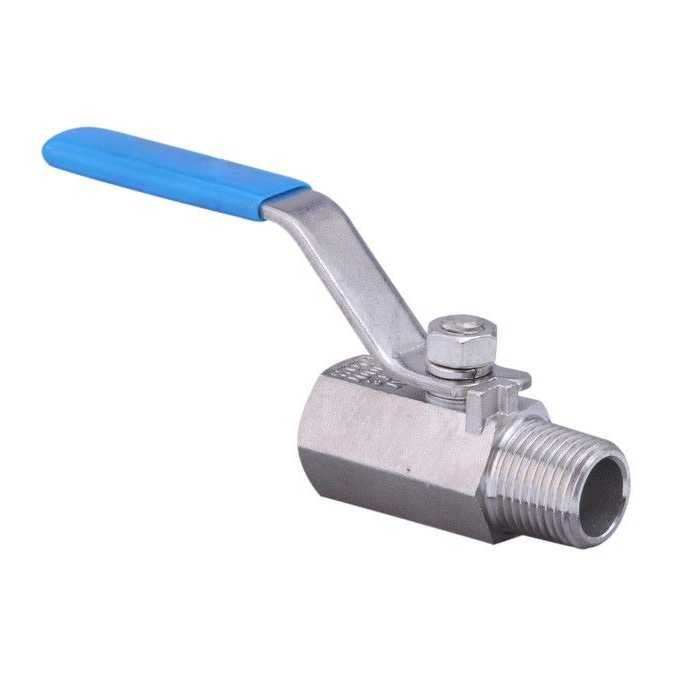

1 Piece Male / Female Stainless Steel Screwed Ball Valve
SKU BV5080
from£9.15ex VAT Not the right one? Identify your valve by photo
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Male x Female Ball Valve
- CF8M Stainless Steel Body
- 1 Piece, Reduced Bore
- BSPT or NPT
- Sizes: 1/4" to 1/2"
- Temperature range: -20°C to +180°C
- Operating pressure: 1000 PSI WOG
Description
1 Piece Male / Female Stainless Steel Ball Valve is a non-maintainable one piece, reduced bore ball valve with screwed end connections.
An economical, compact and reliable ball valve with CF8M Stainless Steel body and PTFE seals providing safe operation for both general and industrial chemical applications.
Used to 'shut-off' medium flows on a wide range of liquid and gaseous duties including drain and blow down, gauge isolation and test points.
Features a blow-out proof stem and insulated grip, lockable lever handle.
Investment cast with low torque.
Technical specification
- End Connection
- BSP, NPT
- Body Material
- Stainless Steel
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15)
- Design
- 1 Piece, Reduced Bore, Male x Female
- Industry / Approvals
- General / Industrial / Process
- Lever
- Manual Lockable Lever
- Temperature Range
- -20°C to +180°C
- Pressure
- Up to: 1000 PSI WOG
- Actuatable?
- No - Manual Only
