VOLT Type HQ005 Electric Actuator - 50Nm

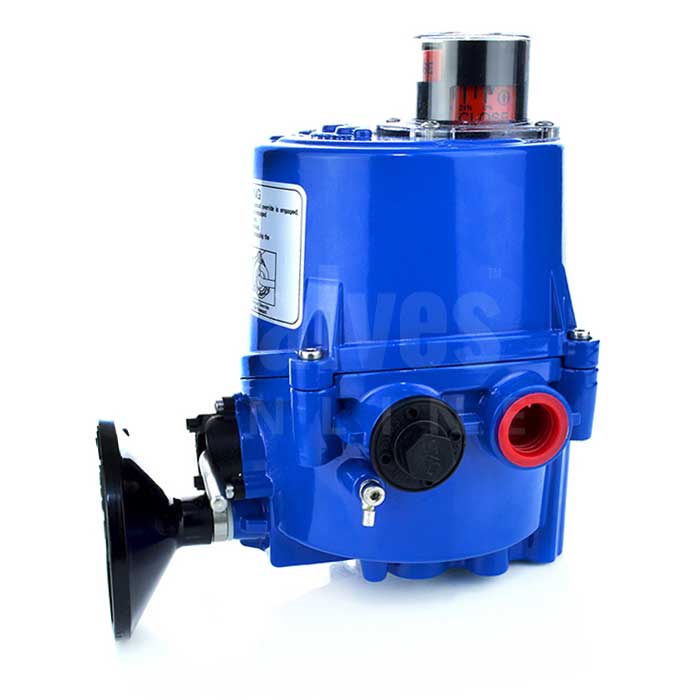

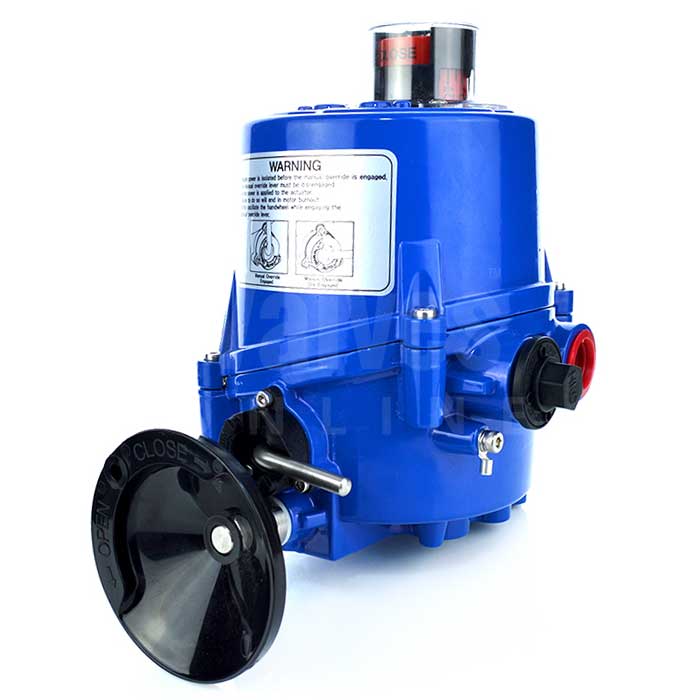

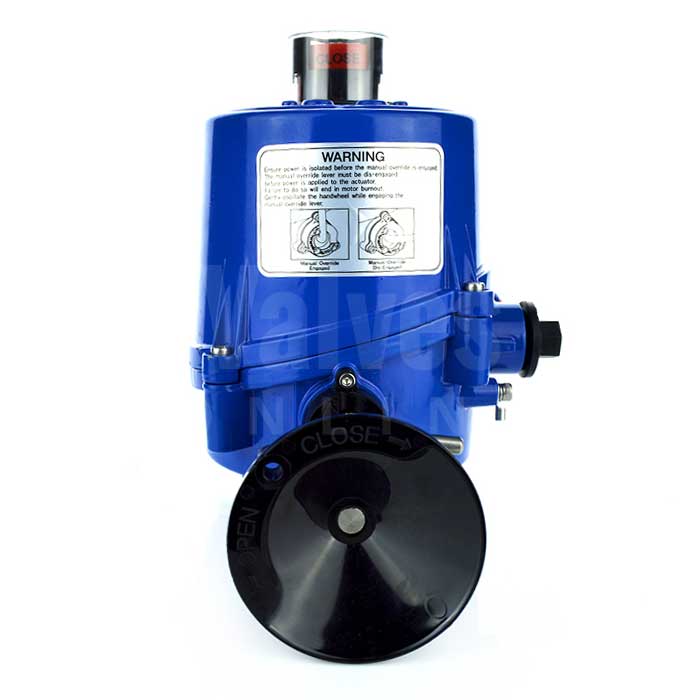

The VOLT HQ005 50Nm Electric Actuator is a rotary quarter turn electric actuator specially designed for ball valves, butterfly valves, plug valves, dampers and other similar applications.

Power supply in 24V DC/AC 110/230V AC with output torques to 50Nm. Offered in three versions: ON/OFF, Modulating version (accepts 4-20 mA and 0-10V signals) and Failsafe Battery Backup.

Equipped with many extras including a unique brushless DC motor fitted as standard, anti-condensation heaters, limit switches and Declutch able manual override. This compact yet powerful unit offers repeatability, long life and cost benefits.

Available options include: modulating positioner card for all voltages (single phase & 24V AC/DC) and torque overload indication system via flashing LED lamps.

Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.

All VOLT Actuators and Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuators and actuated packages are rigorously inspected and 100% factory tested prior to dispatch.

HQ005 24v AC DC Wiring Diagram

HQ005 24v AC DC PCU Wiring Diagram

HQ005 24v AC DC with Battery Backup Wiring Diagram

HQ005 Single Phase Wiring Diagram

HQ005 Single Phase PCU Wiring Diagram

HQ005 Single Phase with Battery Backup Wiring Diagram
