ATEX Electric Actuated Mars Series 88 Ball Valve
SKU EX5167
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Electric Actuated Mars Series 88
- Full Bore
- Stainless Steel Ball Valve
- BSP, NPT, Socket Weld or Butt Weld
- 1/2" to 2"
- RPTFE Seat
- ATEX Approved Valve
- ATEX Approved HQ006 Electric Actuator
- 24VDC, 24VAC, 110VAC, 230VAC
Description
This electric actuated Mars Series 88 Ball Valve comprises of the Mars Series 88 Stainless Steel ATEX apporved ball valve fitted with a HQ006 ATEX approved electric actuator, combined together offering a powerful, compact unit.

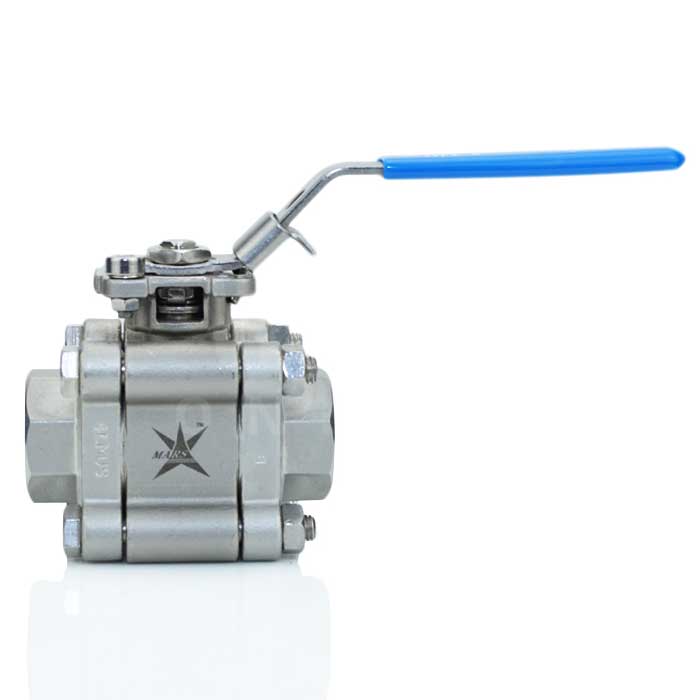

The Mars Series 88 ball valve has a 3-piece stainless steel body with reinforced PTFE seats and screwed BSP, NPT, socket weld or butt weld end connections in sizes 1/2" to 2".
The HQ006 ATEX approved actuator is available in options for the following operating voltages; 24V DC, 24V AC, 110V AC, and 220V AC, and is housed in a IP67 weatherproof enclosure. The actuator housing is hard anodised inside and out prior to painting to increase corrosion resistance and is supplied, fitted to your valve selection.
High quality electrical components and alloy gearing ensure reliability and extended life span and is fitted, as standard, with limit switches, an anti-condensation heater and high-visibility beacon indication.
Technical specification
- End Connection
- BSP, NPT, Socket Weld, Butt Weld OD
- Body Material
- Stainless Steel
- Seat Material
- RPTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 3 Piece, Full Bore
- Industry / Approvals
- ATEX
- Temperature Range
- -20⁰C to + 180⁰C
- Pressure
- Up to: 2000 PSI Rated
- Actuator
- HQ006 Exd Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC, 230V AC
- Actuator Features
- ATEX
