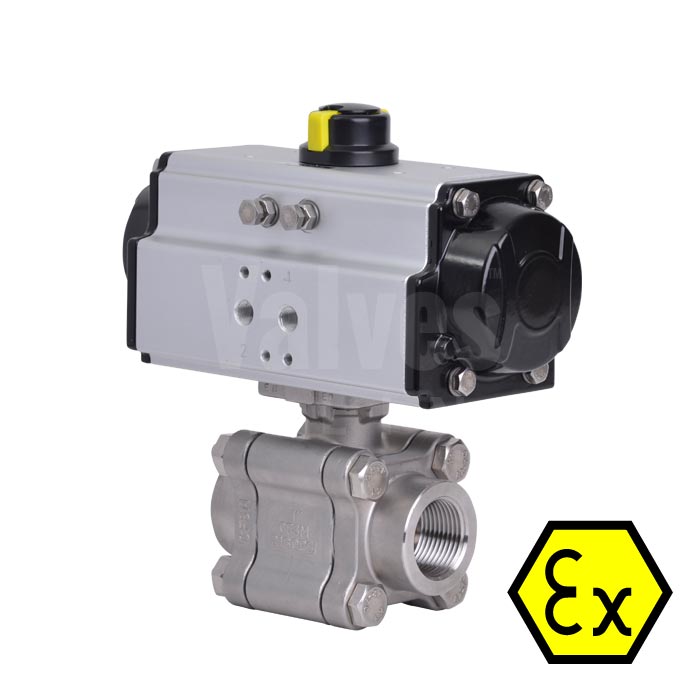

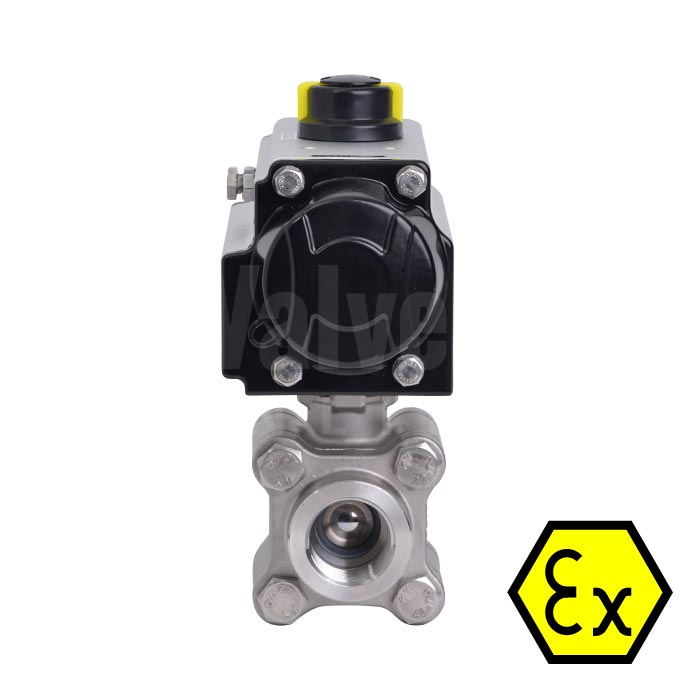

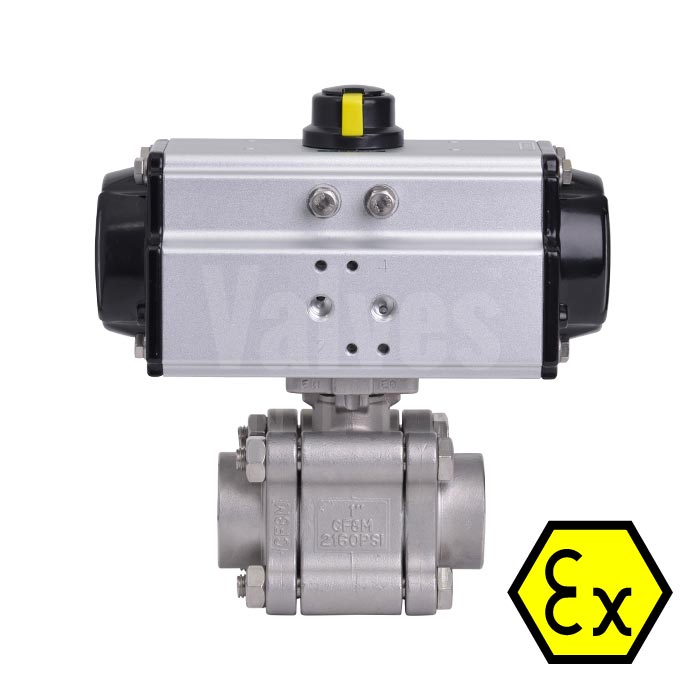

ATEX Pneumatic Actuated Series 88 Ball Valve
SKU PX4109
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Actuated Mars Series 88
- Fire safe seats and Anti-static device API607
- ATEX approved Valve and Actuator
- RPTFE Seats
- Stainless steel body
- Up to 2000 PSI Rated
- Screwed BSP, NPT or Socket Weld connections
- Sizes from 1/4” - 4”
- Spring close or double acting actuator options
Description
Series 88 Heavy duty, stainless steel, fully encapsulated, three piece, full bore ball valve, with Fire Safe seats and Antistatic device. The valve is fitted with either a double acting or spring return (Spring open on request) Pneumatic Actuator.
The Actuator is ATEX approved and the valve is certified Firesafe to API607. Options for end connections are BSP or NPT and Socket Weld. The valve and actuator are linked together directly and not needing conventional box section and drive coupling.
Pilot Solenoids and Switch Boxes are available for hazardous areas.
Technical specification
- End Connection
- BSP, NPT, Socket Weld
- Body Material
- Stainless Steel
- Seat Material
- RPTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Full Bore, Female x Female
- Industry / Approvals
- ATEX
- Temperature Range
- -20°C to 180°C
- Pressure
- Up to: 2000 PSI Rated
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
