Images are illustrative and may not show every size or variation.
VOLT

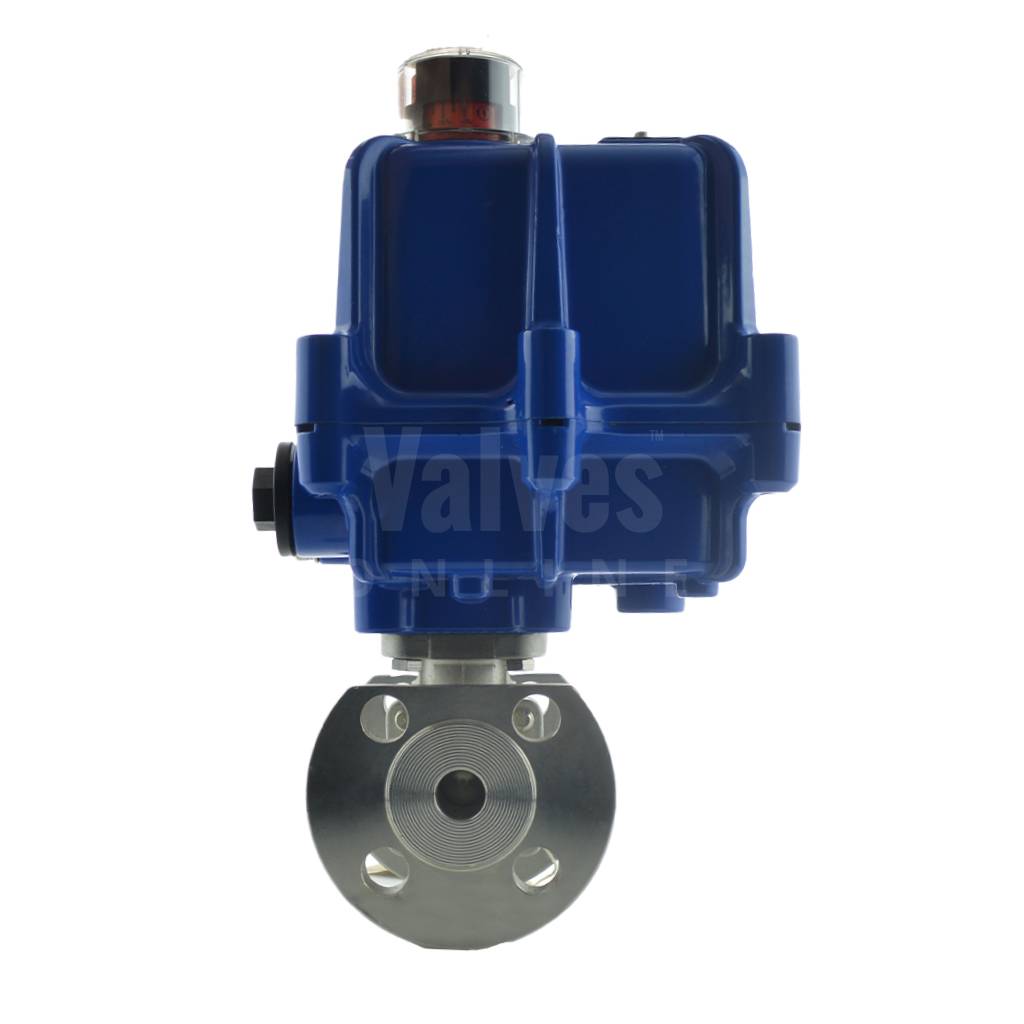

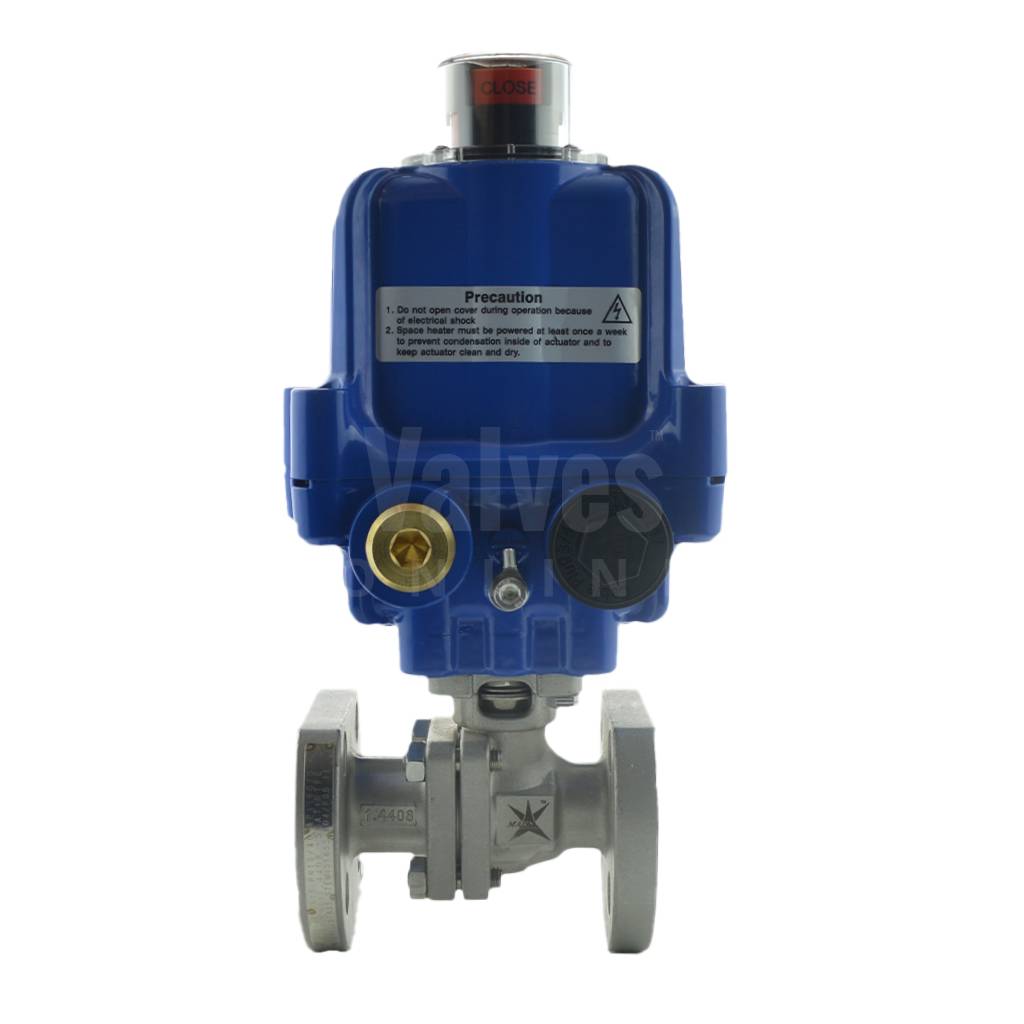

ATEX Electric Actuated ANSI 150 Mars 90D Ball Valve
SKU EX5126
from£852.64ex VAT Not the right one? Identify your valve by photo
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars Series 90D-10 ball valve
- Fire-safe and antistatic
- 2-piece stainless steel body
- RTFE seats and graphite seals
- Full-bore
- Sizes available: 1/2” to 4” with ANSI 150 flanges
- Media temp. : -20°C to 180°C
- ANSI 150 pressure rated
- The valve is ATEX approved
- Powerful electric actuator
Description
An electrically actuated, high performance, full bore, flanged ball valve with ANSI 150 flanges.
The valve has a 2-piece, stainless steel body that is Certified firesafe to API 607 4th Edition with an antistatic spring loaded stem-to-ball and stem-to-body anti-static device as standard.
The seats are RTFE
Technical specification
- End Connection
- Flanged ANSI 150
- Body Material
- Stainless Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Industry / Approvals
- ATEX
