VOLT

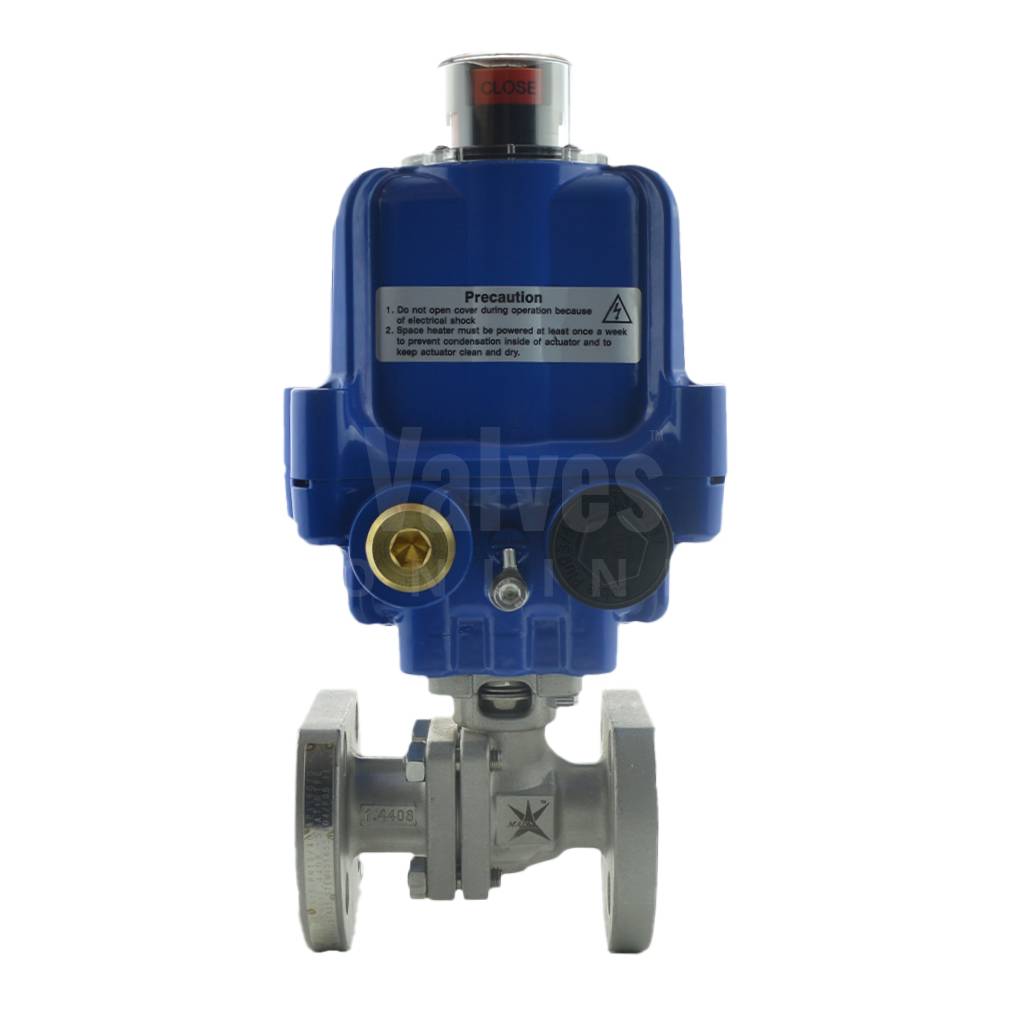

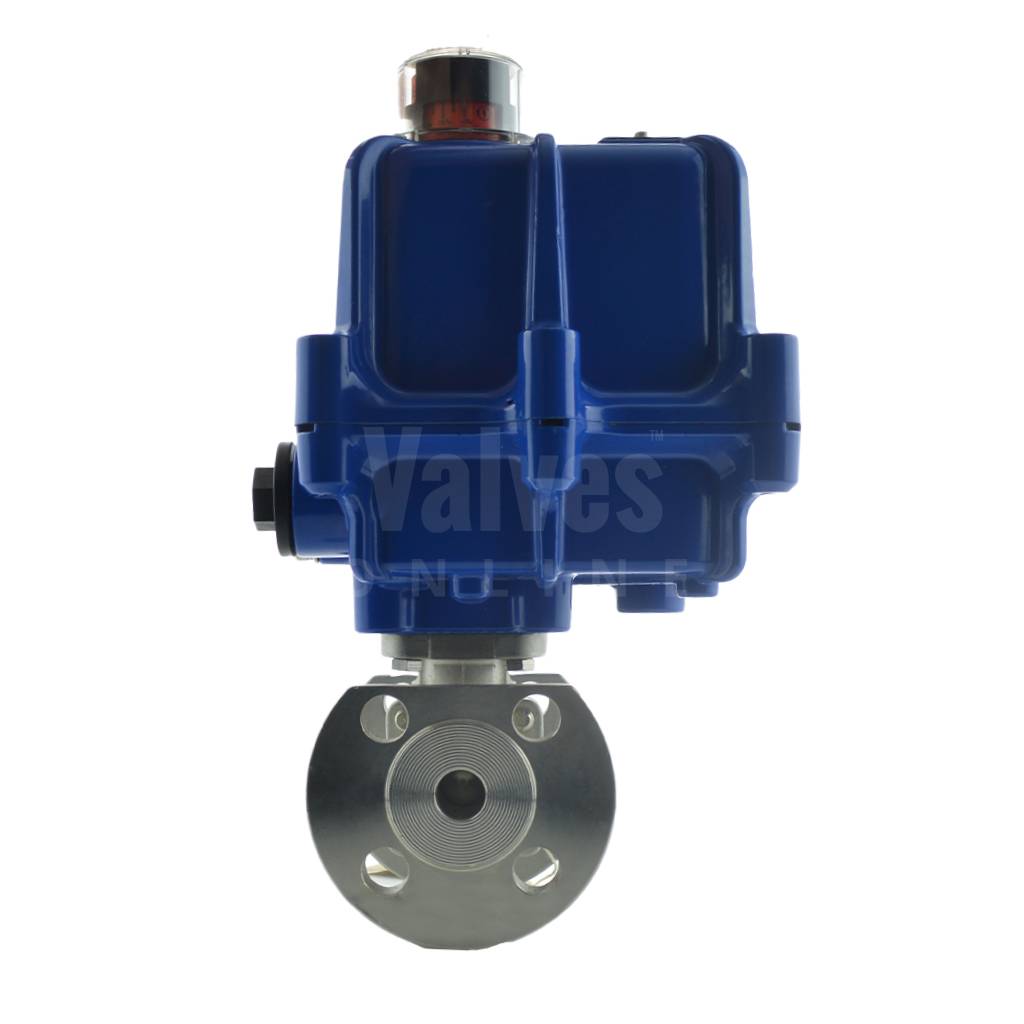

ATEX Electric Actuated PN16 Mars 90D Ball Valve
SKU EX5124
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars Series 90D-40 ball valve
- Fire-safe and antistatic
- 2-piece stainless steel body
- RTFE seats and graphite seals
- Full-bore
- Sizes available: 1/2” to 4”
- PN16 flanges
- Media temp. : -20°C to 180°C
- PN16 pressure rated
- The valve is ATEX approved
Description

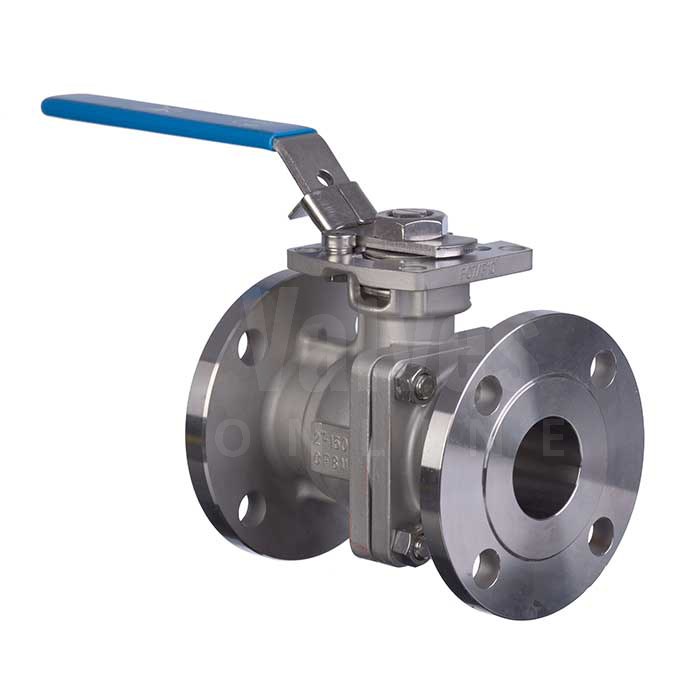

An electrically actuated, high performance, full bore, flanged ball valve with PN16 flanges.
The valve has a 2-piece, stainless steel body that is Certified firesafe to API 607 4th Edition with an antistatic spring loaded stem-to-ball and stem-to-body anti-static device as standard.
The seats are RTFE with graphite seals and can be replaced and maintained
The valve is available in the following sizes: 1/2” (DN15), 3/4” (DN20), 1” (DN25), ), 11/4” (DN32), 11/2” (DN40), 2” (DN50), 21/2” (DN65), 3” (DN80), and 4” (DN100)
The valve has a media temperature range of -20°C to 180°C, is pressure rated PN16, and is ATEX approved.
Electrically driven with a high performance electric actuator with voltage options: 24V DC, 24V AC, 110V AC and 230V AC.
Actuator has a working temperature range of -20°C to 70°C.
The actuator is fitted with limit switches, an anti-condensation heater, and is ATEX approved.
Technical specification
- End Connection
- Flanged PN16
- Body Material
- Stainless Steel
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Industry / Approvals
- ATEX
- Actuator
- HQ Electric Actuator
