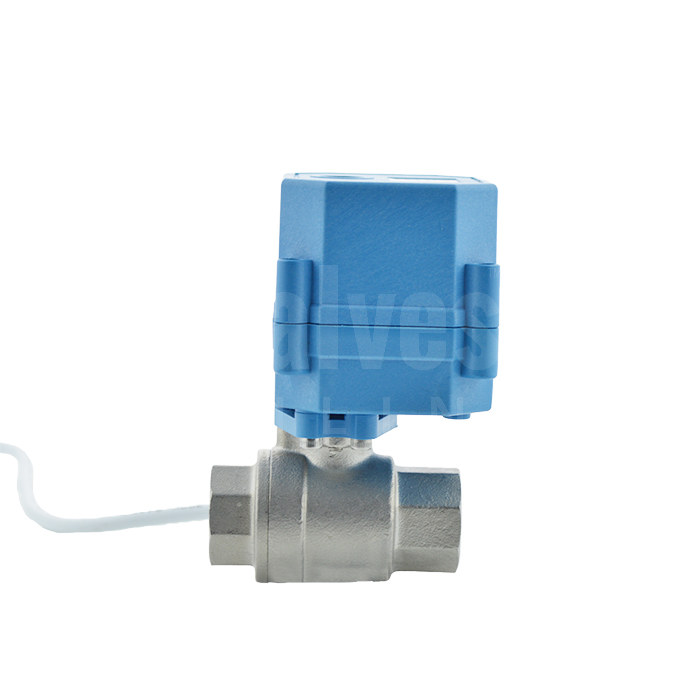

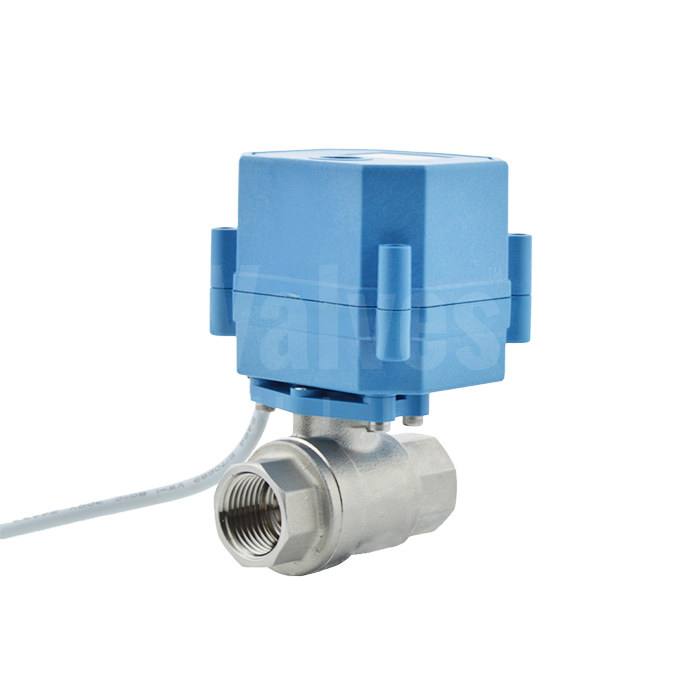

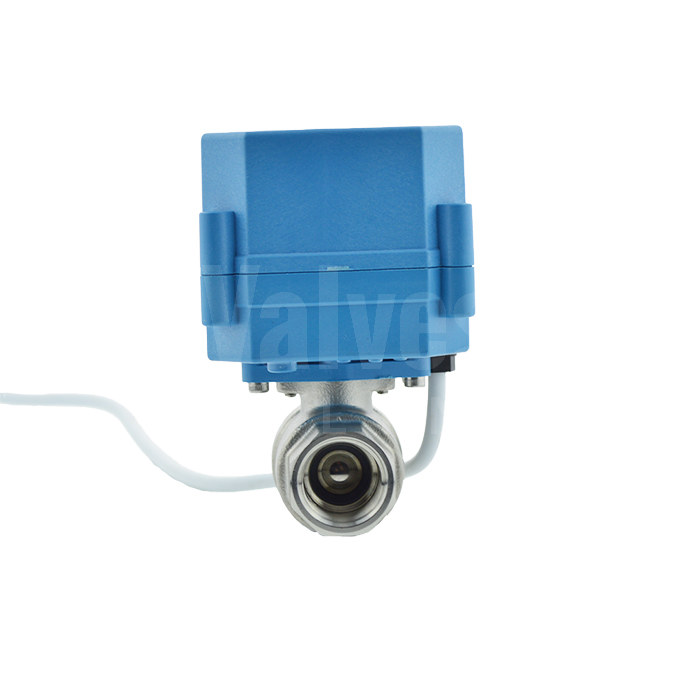

VOLT Motorised Electric Ball Valve
SKU EA4100
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Electric Powered Compact Ball Valve
- 304 Stainless Steel Ball Valve
- 1/4" to 1"
- BSP Connections
- Full Bore
- WRAS Approved Ball Valve
- 0 - 10 Bar Pressure
- Failsafe Open, Failsafe Closed & Power Open/Close Options
Description
This economy electric actuated full-bore stainless-steel (304) ball valve, offers a positive alternative to solenoid valves. Unrestricted full bore with operating times of 5 seconds. The standard unit is power to open and failsafe closed, with the option of 3 wire, power to open and power to close.
The actuator is a powerful yet compact operator in ABS engineered plastic. Supplied with 0.5 mtr cable and optical indicator as standard. Choice of power supply 24 V DC/AC or 110/240 VAC
Available Options
Benefits over solenoid valves
Available on request
Technical specification
- End Connection
- BSP
- Body Material
- Stainless Steel
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25)
- Design
- 2 Piece, Full Bore, Female x Female
- Industry / Approvals
- WRAS
- Actuator
- Compact Electric Actuator
- Actuator Voltages
- 9 to 24V AC or DC, 110 to 240V AC
- Main Features
- 1/4" to 1" Stainless Steel Compact
