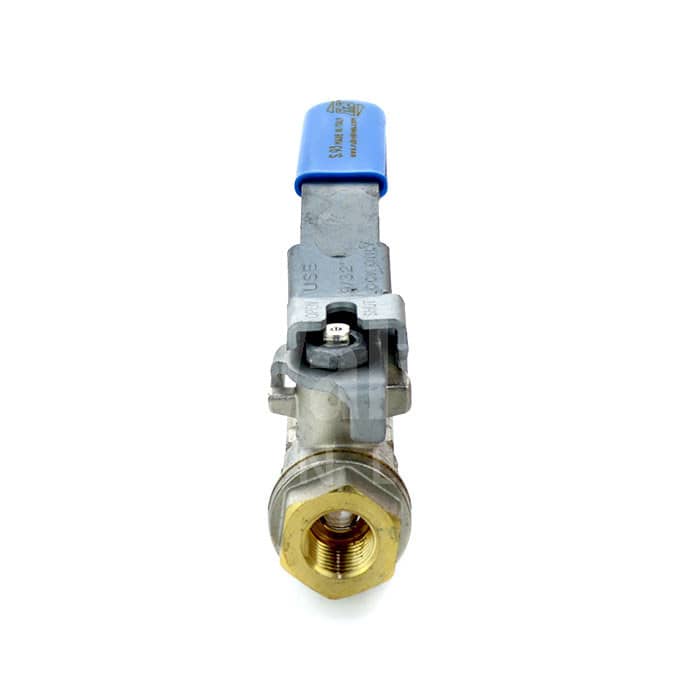

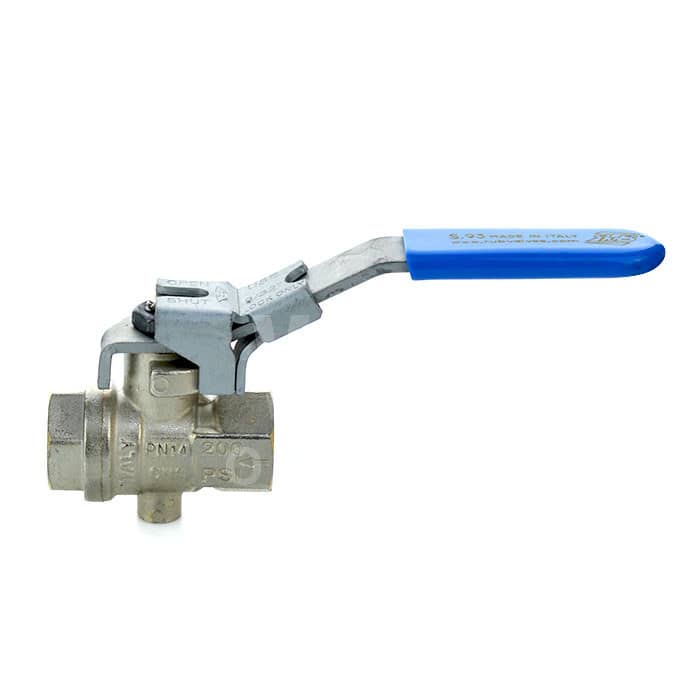

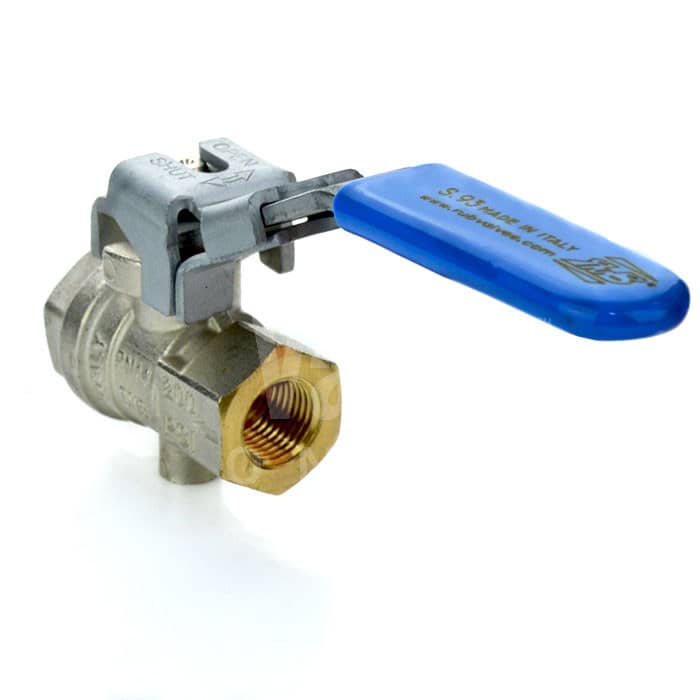

Vented Brass Ball Valve with Locking Lever
SKU BV5051
from£16.65ex VAT Not the right one? Identify your valve by photo
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Vented ball valve
- Nickel-plated brass body
- Full-bore
- M5 tapped vent hole in sizes 1/4” to 1”, and 1/4” tapped hole in sizes 1 1/4”, 1 1/2”, and 2”
- PTFE seats
- Sizes available: 1/4” to 2”
- Screwed BSPP end connections
- Locking lever
- Working temperature range: -20°C to +110°C
- Pressure rating: PN14
Description
Our Vented Brass Ball Valve with Locking Lever is suitable for a range of media and applications; isolation of industrial and domestic process, heating, hot water, cold water, oil and air.
A full bore, screwed BSPP manual valve with M5 Tapped Vent Hole available in sizes: 1/4" to 2".
Lockable ball valves are locked in the closed position only to ensure safe maintenance.
Please note: Padlocks are NOT supplied with locking lever handle valves.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- Full Bore, Female x Female
- Industry / Approvals
- HVAC
- Lever
- Manual Lockable Lever
- Temperature Range
- -10°C to 100°C
- Pressure
- PN14 Rated
- Actuatable?
- No - Manual Only
