Images are illustrative and may not show every size or variation.
VOLT

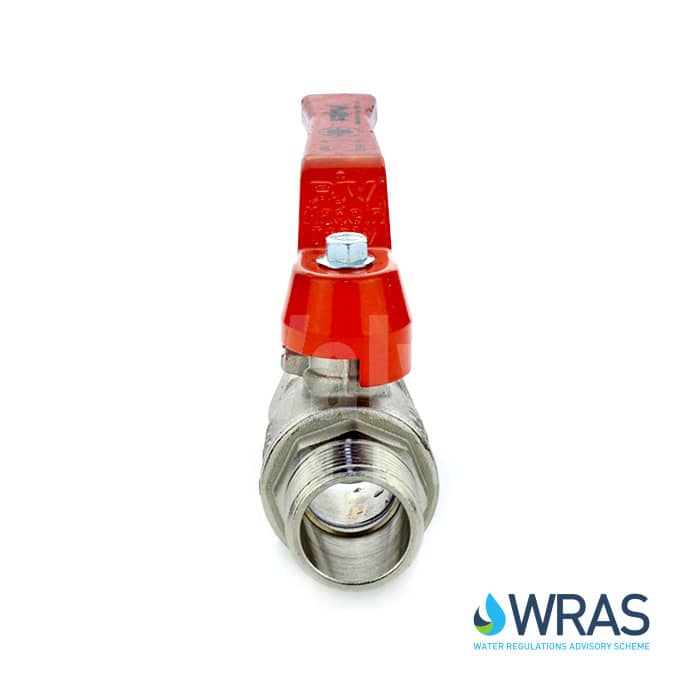

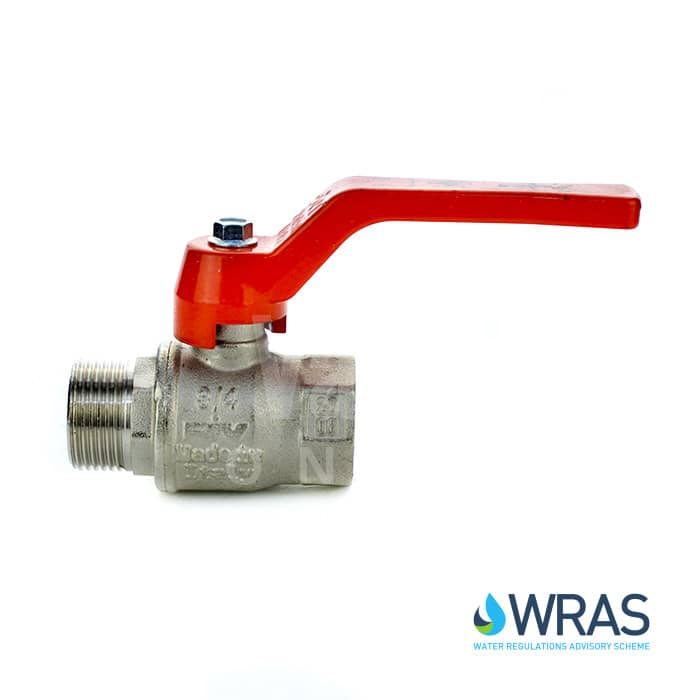

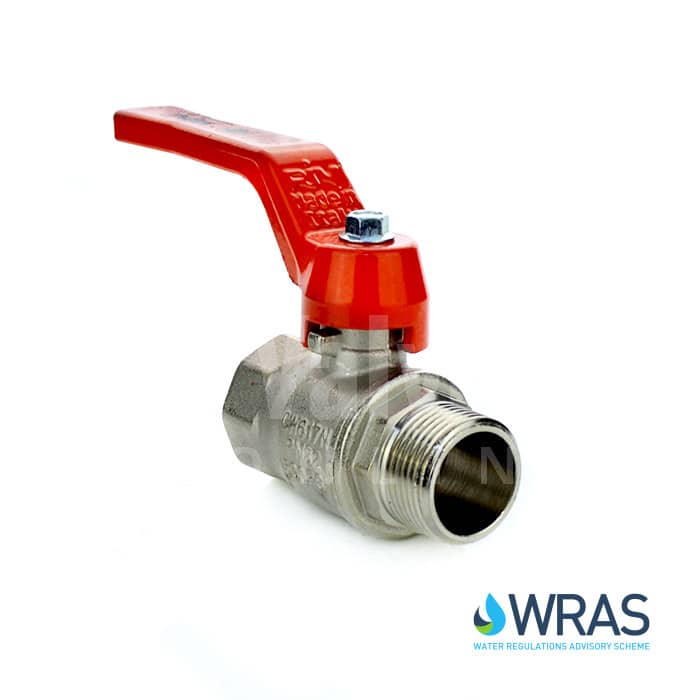

Standard Pattern Brass Ball Valve Male x Female - Red Aluminium Lever
SKU BV5023
from£6.53ex VAT Not the right one? Identify your valve by photo
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Standard Pattern Male x Female Brass Ball Valve
- Red Aluminium Handle
- Brass Nickel Plated Body
- Male x Female Screwed BSPP Ends
- Full Bore
- Sizes: 1/4" to 4"
- WRAS Approved
Description
This WRAS Approved Male x Female Standard Pattern Brass Ball Valve features a red aluminium lever handle and is suitable for general air and water duty, compressed air lines and isolaton of liquids.
Available in sizes 1/4" to 4", this full bore ball valve has a blowout proof stem, PTFE seats and screwed BSPP male x female end connections.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 2 Piece, Full Bore, Male x Female
- Industry / Approvals
- General / Industrial / Process, WRAS, HVAC
- Lever
- Manual Red Aluminium Handle
- Temperature Range
- -20°C to 110°C
- Pressure
- Up to: PN40 (1/4" to 1/2"), PN32 (3/4" to 1"), PN25 (1 1/4" to 2 1/2"), PN16 (3" & 4")
- Actuatable?
- No - Manual Only
