VOLT

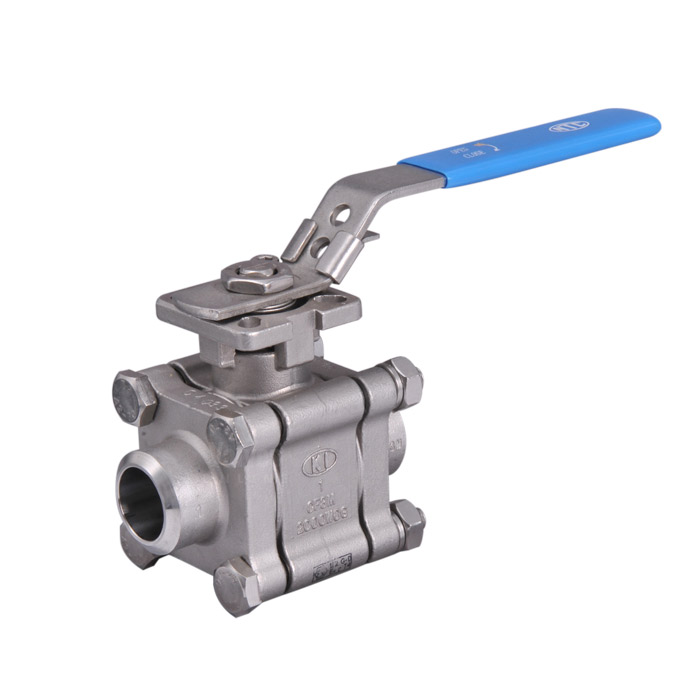

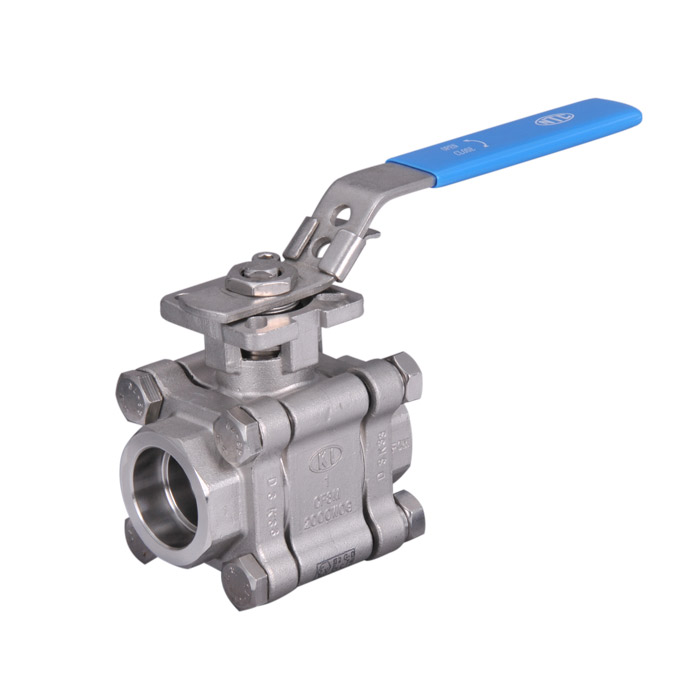

Stainless Steel Ball Valve 3 Piece Heavy Duty Full Bore
SKU BV5087
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- 3 Piece Stainless Steel Ball Valve
- Heavy Duty, Full Bore, Stainless Steel Body
- Screwed BSP, Socket Weld, Butt Weld or NPT End Connections
- Sizes: 1/4" to 2"
- TFM 4215® (25% Carbon Filled TFM) Ball Seats, 3 Piece
- Temperature range: -20 °C to +200°C
- Operating pressure:
- 1/4" to 1" 2000 PSI
- 1 1/4" to 2" 1500 PSI
- ATEX approved Anti-Static Device
Description
A Stainless-Steel Ball Valve, 3 Piece fully maintainable heavy duty ball valve. Used for manual isolation or for actuation utilising the ISO Top mounting platform.
The valve benefits from a unique encapsulated body bolt design and ease of maintenance.
This 3 piece ball valve features TFM 4215® (25% Carbon Filled TFM) Ball Seats, Grafoil Body Seals and Stem Packing. Ta-Luft self-adjusting stem sealing. Nace MR-0175 compliant.
ISO 15848 Certified. EN14432 Certified. DNV & Lloyds approved.
The valve is Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497-5 and Anti-static device fitted for Ball-Stem-Body. ATEX approved.
Options available on request:
Technical specification
- End Connection
- BSP, NPT, Socket Weld, Butt Weld OD
- Body Material
- Stainless Steel
- Seal Material
- Grafoil
- Seat Material
- TFM 4215 Seats 25% Carbon Filled
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 3 Piece, Full Bore, Fire Safe, Female x Female
- Industry / Approvals
- ATEX
- Lever
- Lockable Manual Lever
- Temperature Range
- -20°C to +200°C
- Pressure
- Up to 2000 PSI (1/4" to 1") & 1500 PSI (1 1/4" to 2")
- Actuatable?
- Yes - features ISO Direct Mounting Pad
