VOLT

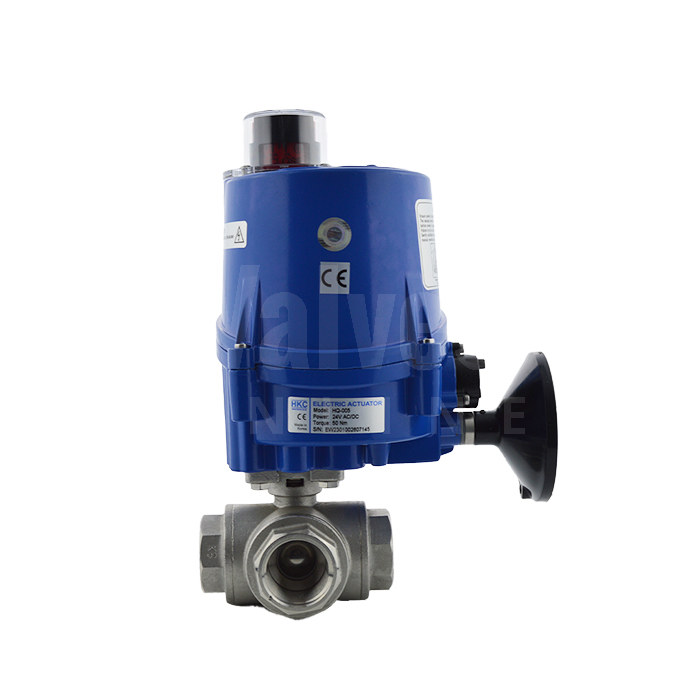

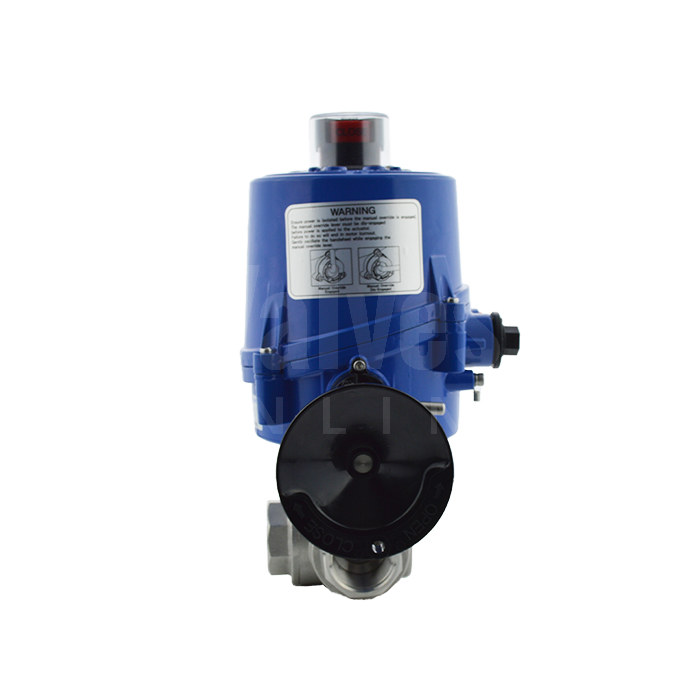

Series 39 Electric Actuated 3 Way Screwed Stainless Steel Ball Valve
SKU EA4118
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Three way, L or T port
- Stainless Steel 316 CF8M
- Reinforced PTFE seat
- Screwed BSP or NPT end connection
- Sizes 1/4" to 2"
- Pressure range: Up to 1000 PSI
- Temperature range: -20°C to 200°C
- Voltage options: 24V DC, 24V, 110V and 230V AC
Description
A reduced bore, 3 way, stainless steel, screwed ball valve fitted to a powerful electric rotary actuator offering quarter turn on/off control. The 3 Way Ball Valve is ideal for diversion of fluids on either L or T port configuration. The valve offers screwed BSP or NPT options coupled with RPTFE seats.
The actuator is fitted directly onto the valve's unique mounting pad and features limit switches, optical indicator, anti-condensation heaters and manual override as standard. Available in a range of voltages.
Electric Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSP, NPT
- Body Material
- Stainless Steel
- Seat Material
- Reinforced PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 3 Way
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to: 1000 PSI
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24V DC, 24V, 110V, 230V AC
- Actuator Features
- On / Off, Manual Override, Limit Switches, Optical Indicator, Anti-Condensation Heaters
