Images are illustrative and may not show every size or variation.
VOLT
Series 33 Pneumatic Actuated 3 Way Flanged Stainless Steel Ball Valve
SKU PF4119
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Actuated
- Stainless Steel Ball Valve
- Reinforced PTFE seat
- Flanged PN16 or ANSI 150
- 3 Way, L or T Port
- Sizes 1/2" to 4"
- Pressure range: Up to 1000 PSI
- Temperature range: -20°C to 200°C
Description
Pneumatic Actuated 3 Way diverting Flanged PN16 or ANSI 150 Stainless Steel Ball Valve provides safe operation for both general and industrial chemical applications, offering superior performance and reliability. A pneumatically actuated 3 way full bore valve with Stainless Steel body and reinforced PTFE seat.

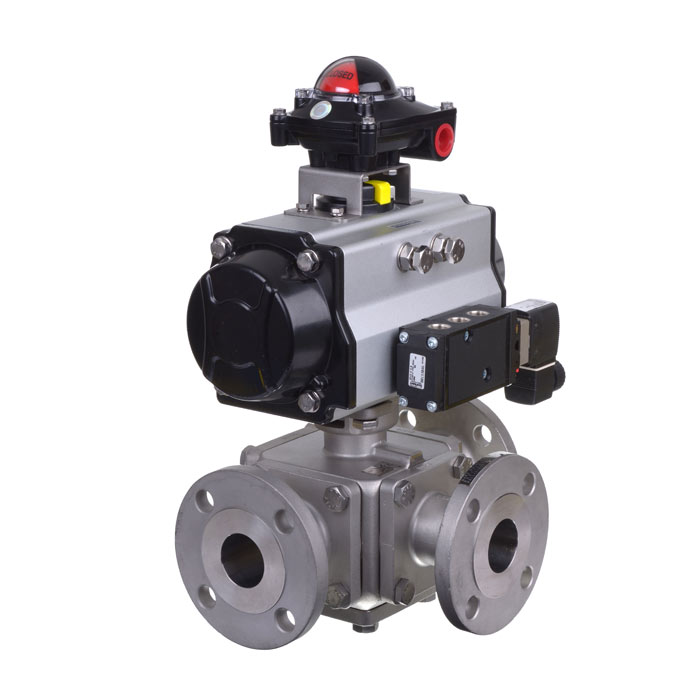

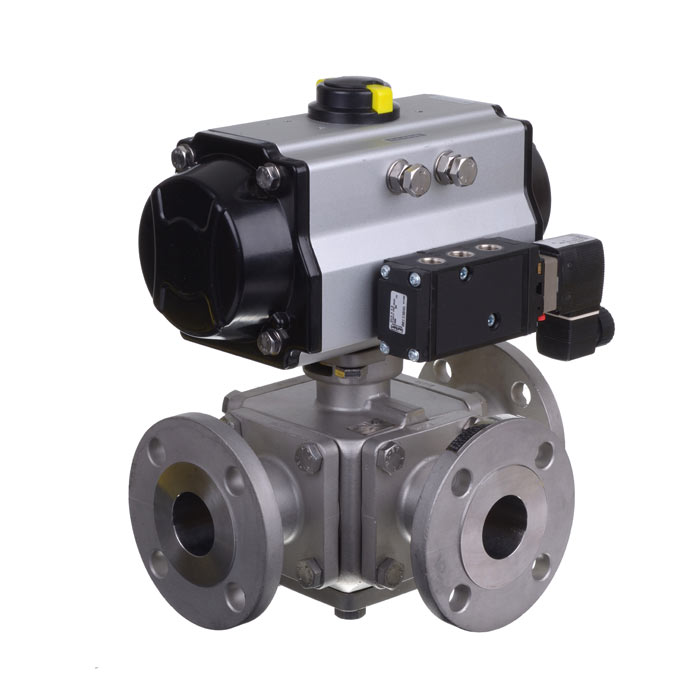

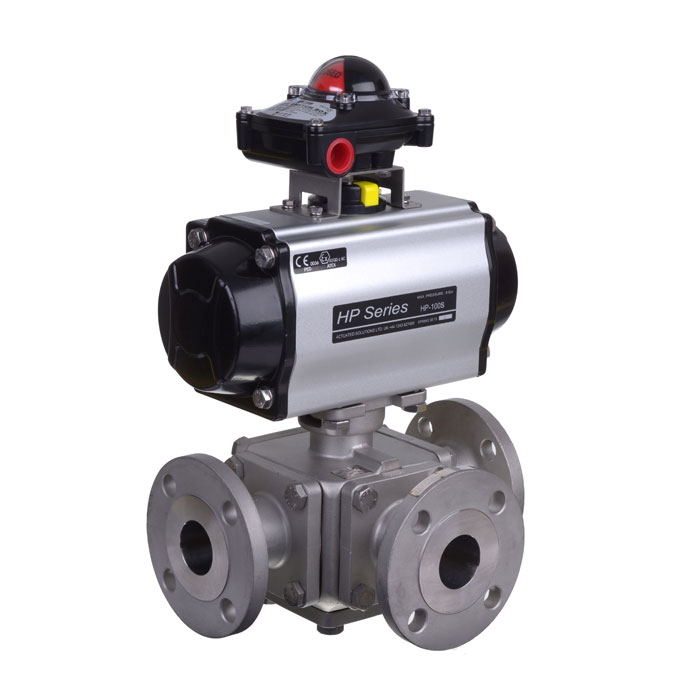

Actuation is either Single or Double acting with a range of configurable options including limit switches, solenoid valves and positioners.
In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
All VOLT Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- Flanged PN16, Flanged ANSI 150
- Body Material
- Stainless Steel
- Seat Material
- Reinforced PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Way
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to: 1000 PSI
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
