Images are illustrative and may not show every size or variation.
VOLT

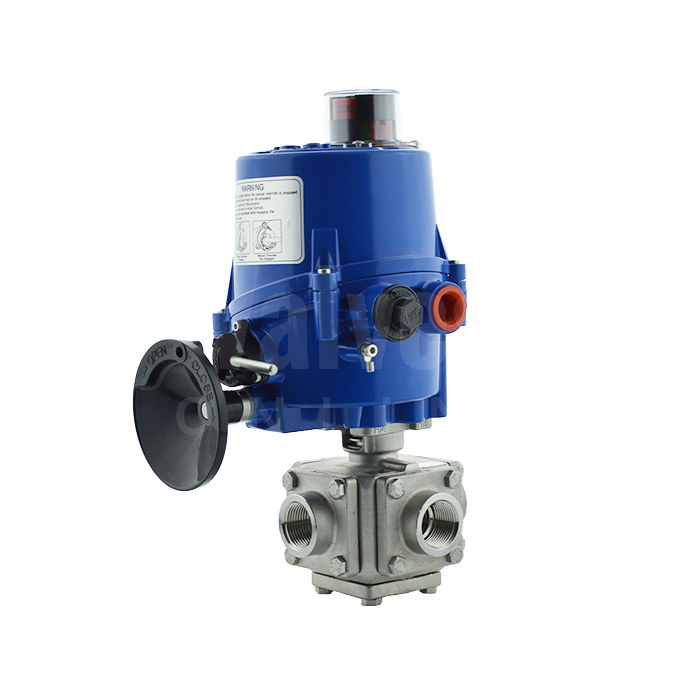

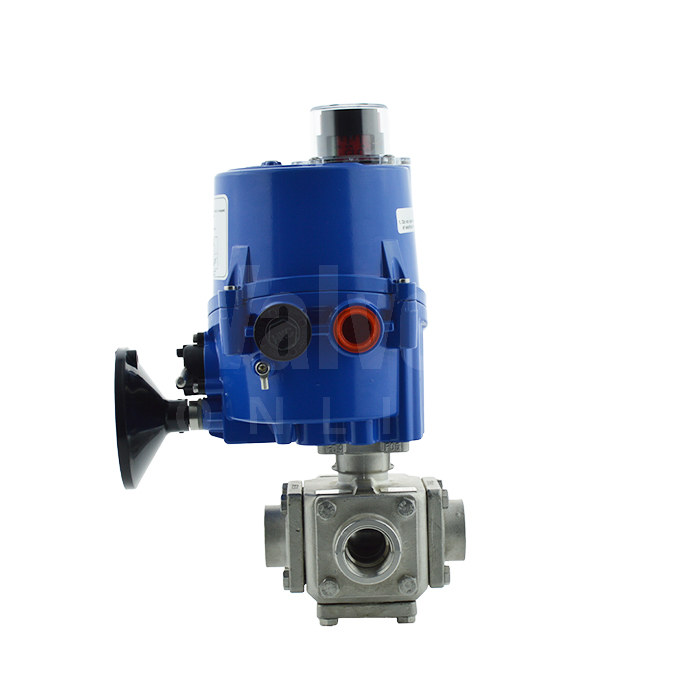

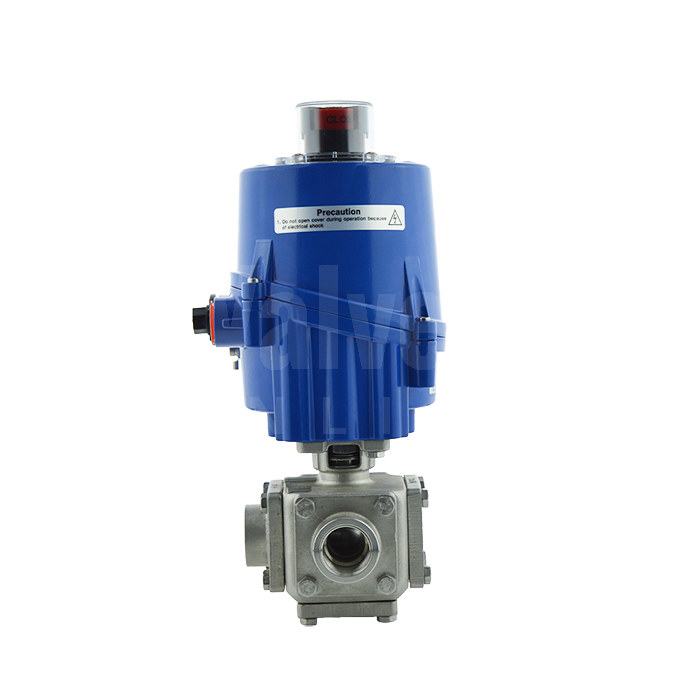

Series 33 Electric Actuated 3 Way Full Bore Stainless Steel Ball Valve
SKU EA4119
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Stainless Steel 316 (CF8M)
- Reinforced PTFE seat
- 3 Way, Full Bore
- L or T Port
- Easy to clean and maintain
- Screwed BSP
- Sizes 1/4" to 4"
- Pressure range: Up to 1000 PSI
- Temperature range: -20°C to 200°C
Description
The Series 33 is a multi-ported, stainless steel ball valve that offers superior performance and reliability. Fitted with our electric rotary actuator, the valve offers L or T 3 way porting of flowing media.
High quality electrical components and alloy gearing ensure reliability and extended life span of the actuator.
The valve is offered with screwed BSP end connections (NPT, Butt or Socket Weld available on request).
Available voltage: 24V DC, 24V, 110V, 230V AC.
All VOLT Electric Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSP
- Body Material
- Stainless Steel
- Seat Material
- Reinforced PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Way, Full Bore
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to: 1000 PSI
- Actuator
- HQ Electric Actuator
- Actuator Voltages
- 24V DC, 24V AC, 110V AC, 230V AC
- Actuator Features
- On / Off, Manual Override, Limit Switches, Optical Indicator
