VOLT

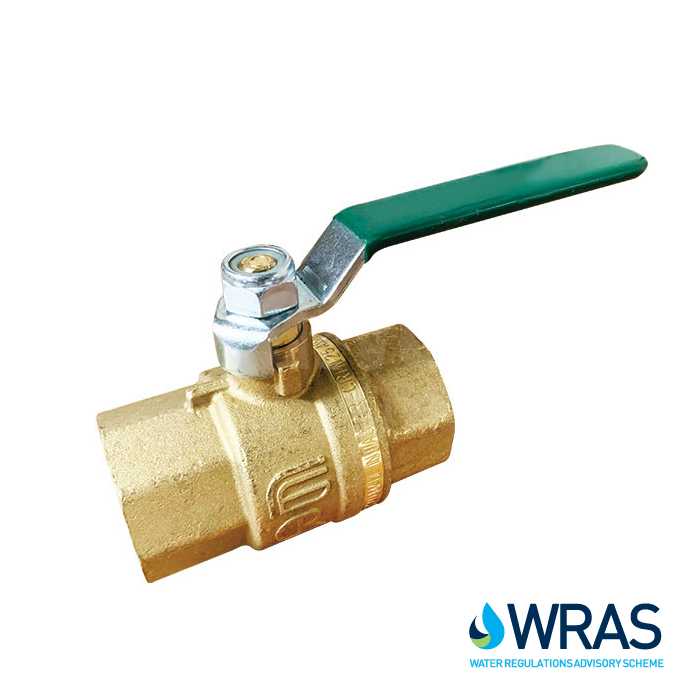

Screwed DZR Brass Ball Valve
SKU BV4230
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- BSPP DRZ Brass Ball Valve
- Lever Operated
- DRZ Brass Body
- PTFE Seats
- Full Bore
- Screwed BSPP End Connections
- Sizes: 1/4" to 2"
- Temperature: -15°C to 120°C
- Pressure: PN40 ¼” to 2”
- WRAS Approved
Description
A WRAS Approved DZR ball valve, offered in screwed BSPP threads.
This full‑bore ball valve is constructed from durable DZR Brass and features BSPP threaded ends, PTFE seats, and EPDM seals. It incorporates a chrome‑plated DZR Brass ball, a DZR Brass anti–blow‑out stem, and is operated via a zinc‑plated steel lever.
Typical Applications For HVAC, Domestic water supply.
When using brass in domestic water supply application, we recommend using DZR Brass. DZR stands for Dezincification Resistant, it is an alloy of copper and zinc, designed to resist corrosion.
DZR Brass has all the strength of normal brass that other comparable alloys such as bronze lack, whilst having the added benefit of corrosion resistance to the dezincification.
Technical specification
- End Connection
- BSP, BSPP
- Body Material
- Brass, DZR Brass
- Seal Material
- EPDM
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 2 Piece, Full Bore, Female x Female
- Industry / Approvals
- WRAS
- Lever
- Manual Lever
- Temperature Range
- -15°C to 120°C
- Pressure
- Rated: PN40 ¼” to 2”
- Actuatable?
- No - Manual Only
