Images are illustrative and may not show every size or variation.
VOLT

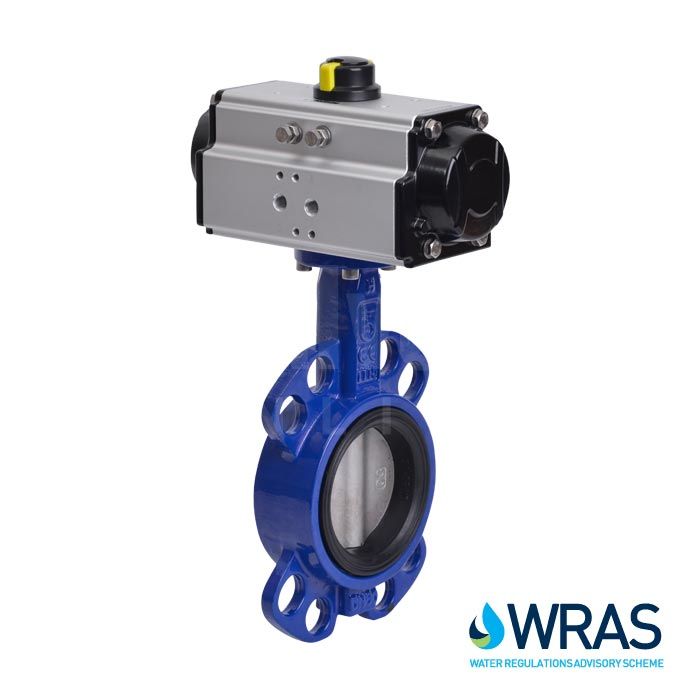

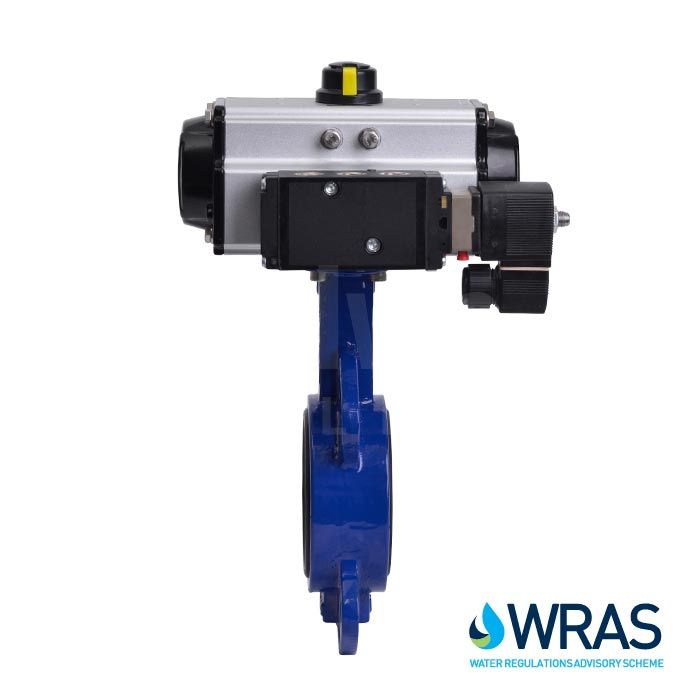

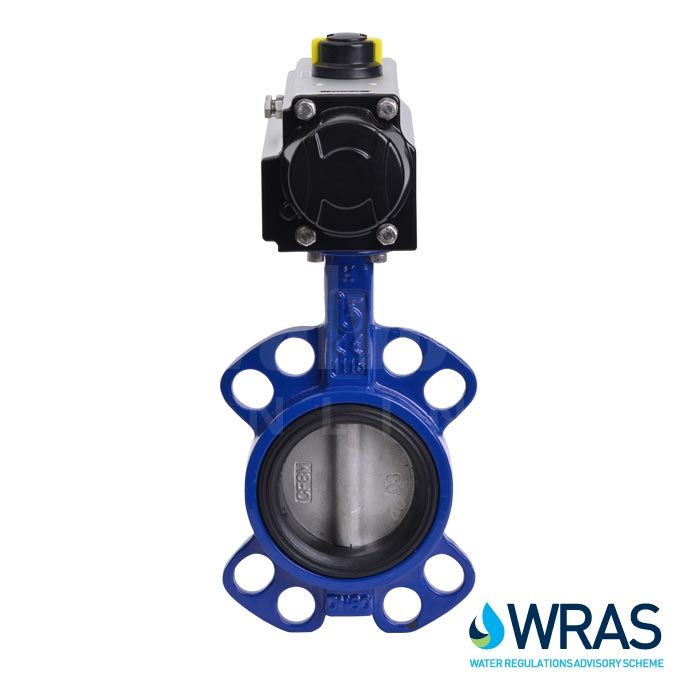

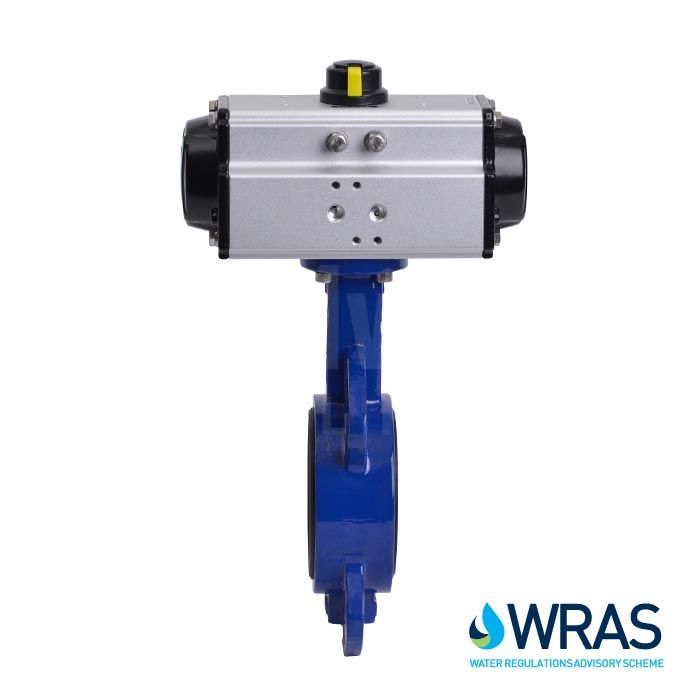

Pneumatic Actuated WRAS Approved Wafer Pattern Butterfly Valve
SKU PA4686
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description
The VOLT pneumatic actuated butterfly valve is suitable for use on potable water and the valve carries a WRAS Approval.
The valve is a wafer pattern design which will fit between various tables of flanges. It has an epoxy coated ductile iron body, a stainless steel disc and shaft with an EPDM liner.
The actuators are manufactured from aluminium, have a hard anodised finish and are ATEX approved/CE marked. All actuators are designed to the latest ISO/NAMUR standards which allow direct mounting of pilot solenoids and switchboxes.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- Design
- Wafer
- Flange Accommodation
- PN6, PN10, PN16, ANSI 150, Table D, Table E
- Body Material
- Ductile Iron
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel
- Liner
- EPDM
- Industry / Approvals
- WRAS
