Images are illustrative and may not show every size or variation.
VOLT

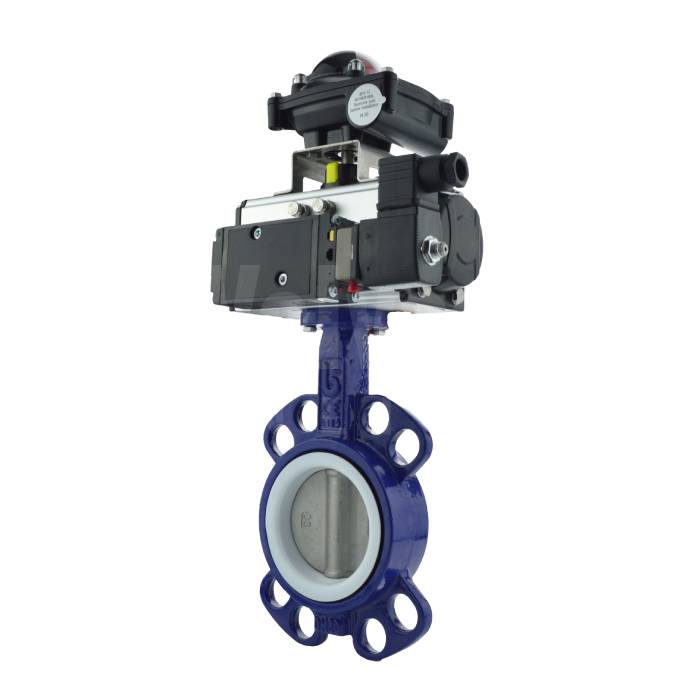

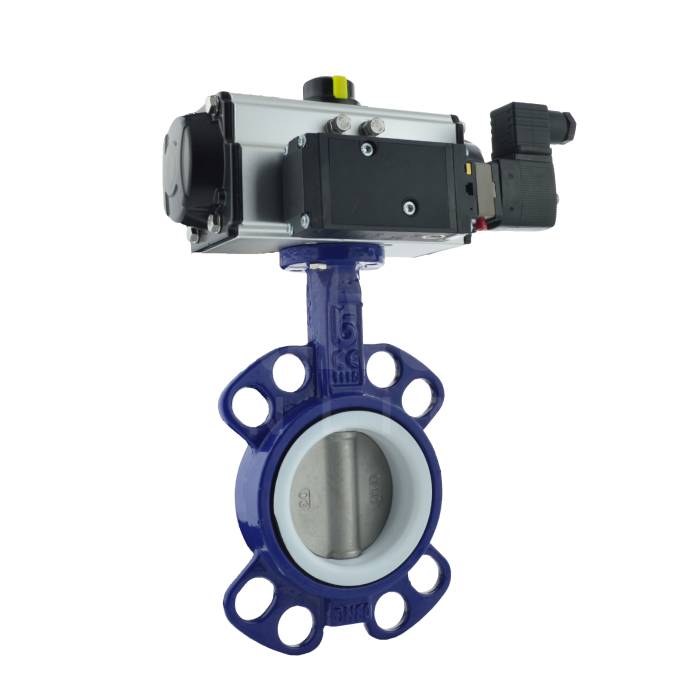

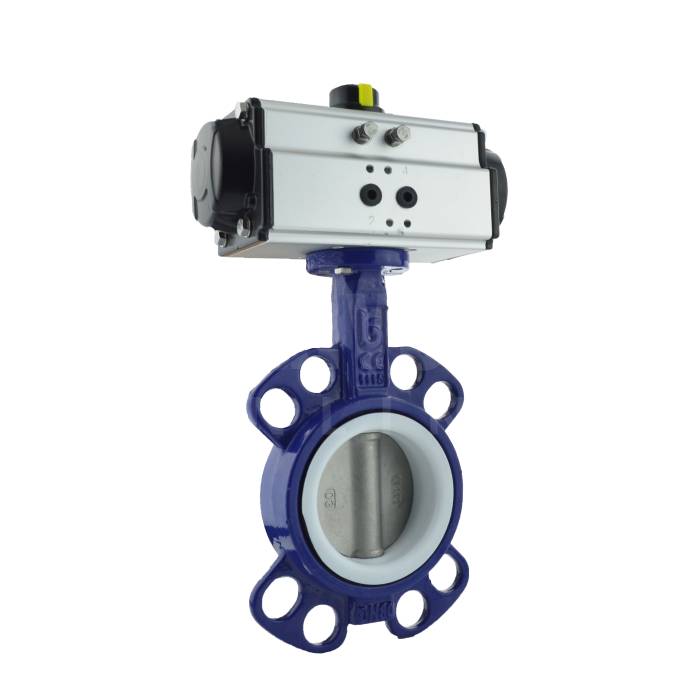

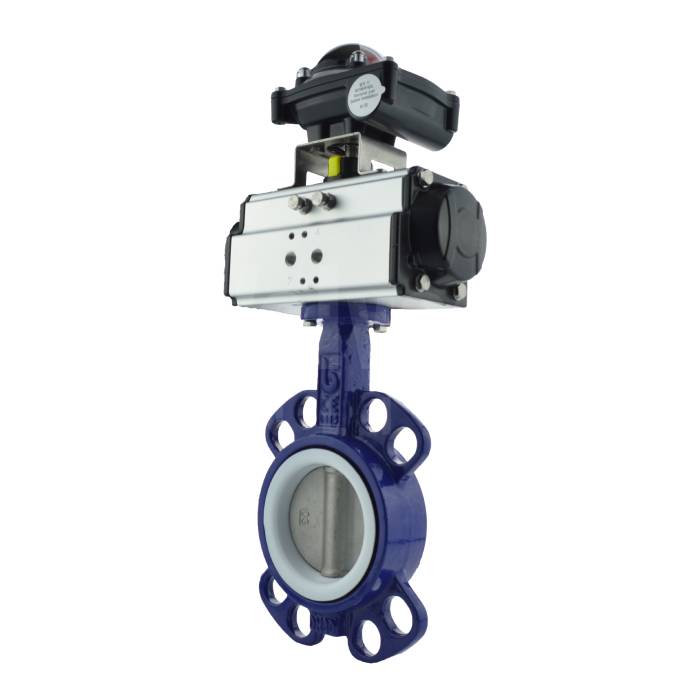

Pneumatic Actuated Wafer Pattern Butterfly Valve - PTFE Lined
SKU PA4604
from£295.83ex VAT Not the right one? Identify your valve by photo
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description
This pneumatic actuated PTFE lined butterfly valve is a wafer pattern design which will fit between various tables of flanges. It has an epoxy coated ductile iron body, a stainless steel disc and shaft with PTFE liner.
The actuators are manufactured from aluminium, have a hard anodised finish and are ATEX approved/CE marked. All actuators are designed to the latest ISO/NAMUR standards which allow direct mounting of pilot solenoids and switchboxes.
Technical specification
- Design
- Wafer
- Flange Accommodation
- PN6, PN10, PN16, ANSI 150, Table D, Table E
- Body Material
- Ductile Iron
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel
- Liner
- PTFE
