Pneumatic Actuated Series 88 Heavy Duty Ball Valve
SKU PA4109
Sizes: 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Actuated
- Stainless Steel body
- Heavy Duty, Reduced Bore, Three Piece
- Carbon filled reinforced PTFE seat and seal
- Screwed BSP, Butt Weld, Socket Weld or NPT end connections
- Sizes 3/4" to 2"
- Temperature range: -20°C to 200°C
- Pressure range: Up to 2000 PSI
Description
Pneumatic Actuated Series 88 Heavy Duty Reduced Bore Ball Valve is a fully maintainable three piece ball valve; suitable for more arduous temperatures, pressures and applications. A pneumatically actuated high performance reduced bore valve with Stainless Steel body and Carbon filled reinforced PTFE seat and seal.

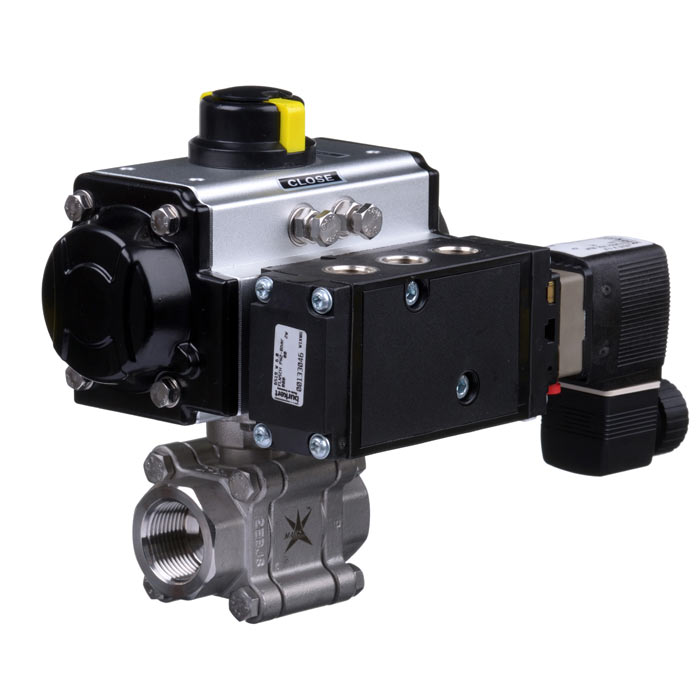

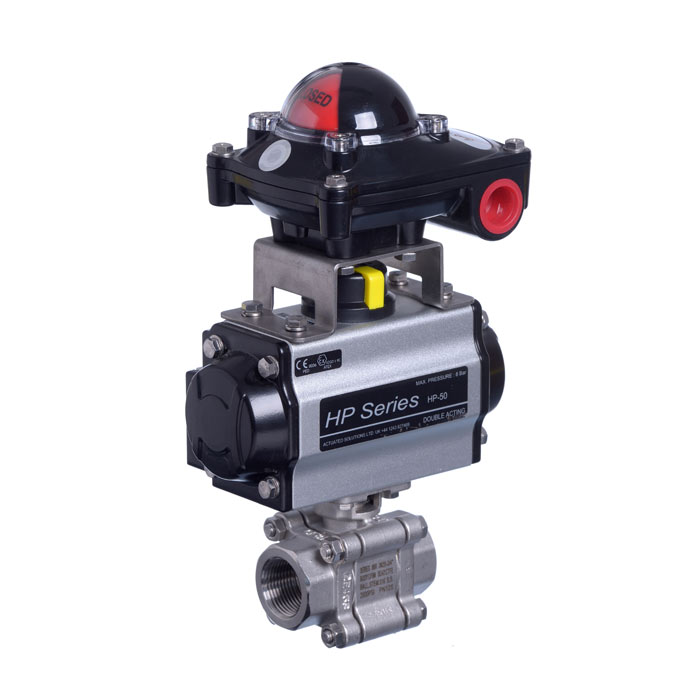

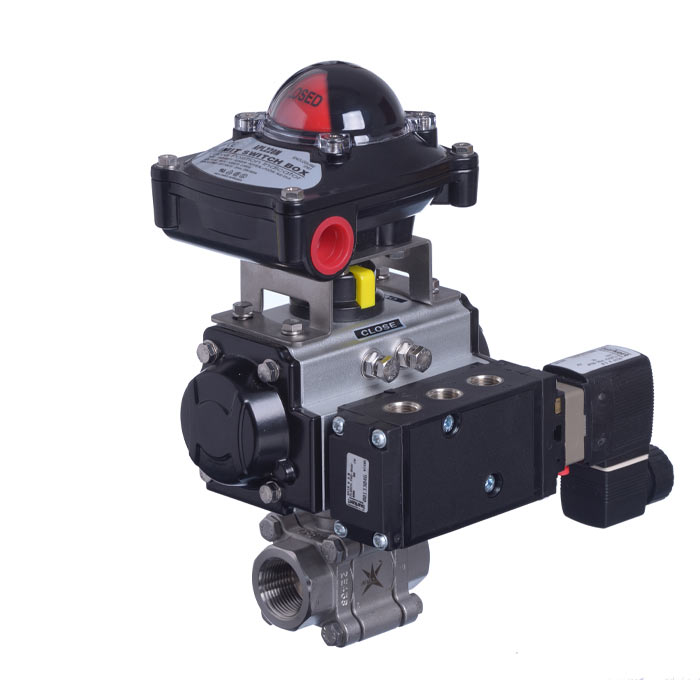

Actuation is either Electric or Pneumatic; Single or Double acting with a range of configurable options including limit switches, solenoid valves and positioners.
In addition, the pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSP, Socket Weld, Butt Weld OD, Tri-Clamp
- Body Material
- Stainless Steel
- Seat Material
- Carbon Filled Reinforced PTFE
- Size
- 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 3 Piece, Reduced Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to: 2000 PSI
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
