Pneumatic Actuated Series 77SN Hygienic Ball Valve
SKU PA4111
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Actuated
- Stainless Steel ball valve body
- Three piece, high performance, full bore
- FDA Approved Cavity filled PTFE seats
- Tri Clamp or Weld End
- Sizes 1/2" to 4"
- Temperature range: -20°C to 180°C
- Operating pressure up to 1000 PSI
- Sanitary ball valve suitable for CIP
Description
Our Pneumatic Actuated Hygienic Ball Valve is a fully maintainable three piece sanitary ball valve; particularly suited for on / off operation, food processing, pharmaceutical and high velocity sanitary applications. A pneumatically actuated high performance full bore valve with Stainless Steel body and cavity filled PTFE seats.
All materials comply with FDA requirements. Suitable for CIP / SIS in-line cleaning.

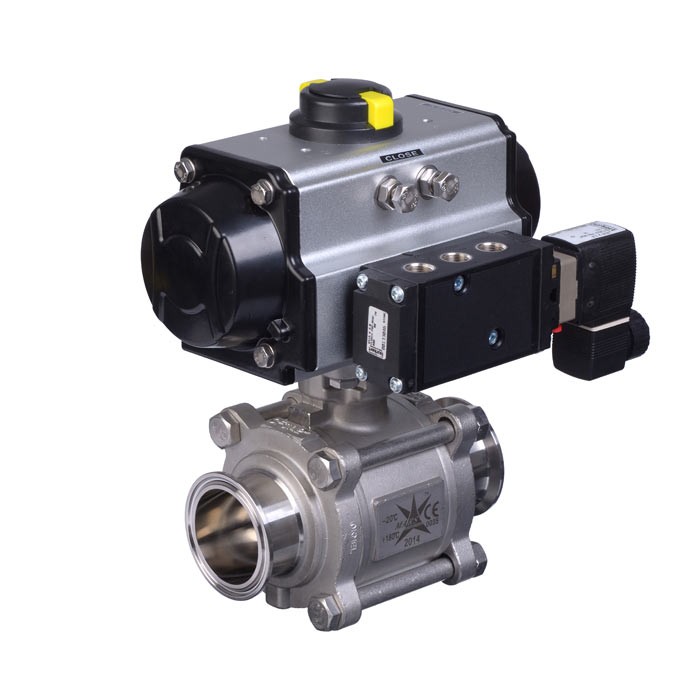

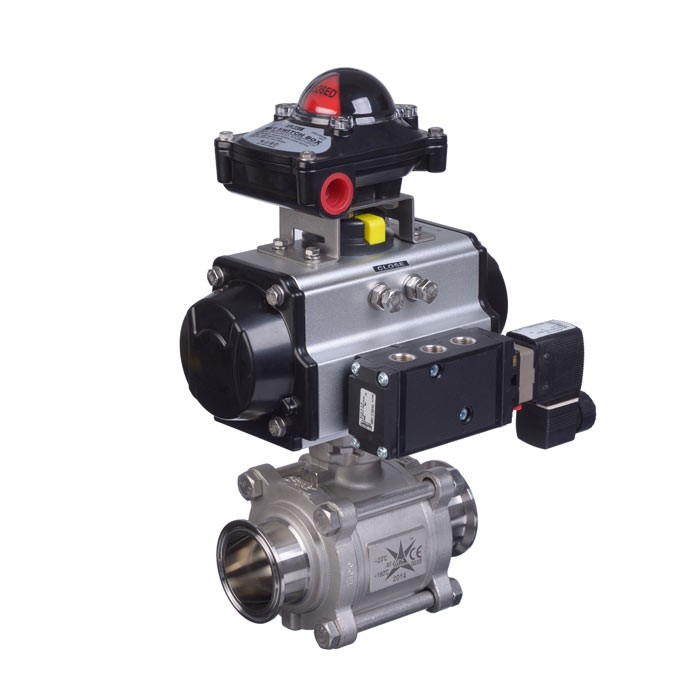

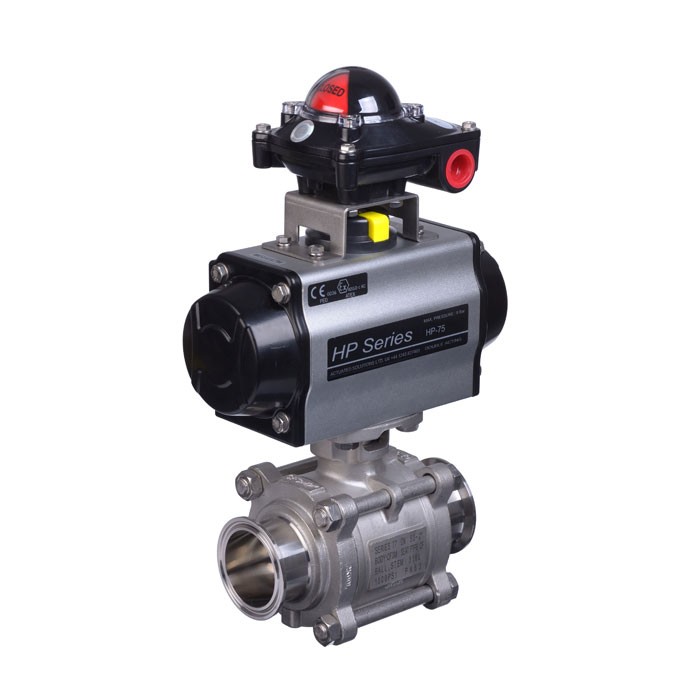

Actuation is either Single or Double acting with a range of configurable options including limit switches, solenoid valves and positioners.
In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Sanitary valve components are cleaned and inspected to ensure they are free from contamination of grease, dust and additional hydrocarbon residues.
Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- Butt Weld OD, Tri-Clamp
- Body Material
- Stainless Steel
- Seat Material
- Cavity Filled PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Full Bore
- Industry / Approvals
- Hygienic
- Temperature Range
- -20°C to 180°C
- Pressure
- Up to: 1000 PSI (1/2" to 2"), up to: 800 PSI (2 1/2" to 4")
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
