Pneumatic Actuated Series 36SN 3 Way Hygienic Ball Valve
SKU PA4112
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Actuated Sanitary 3 Way Ball Valve
- Stainless Steel ball valve body
- FDA Approved Cavity filled PTFE seat
- 3 Way, L or T Port
- High Performance
- Tri-Clamp or Butt Weld
- Sizes: 1/2" to 4"
- Temperature range: -20°C to 200°C
- Operating pressure: 800 PSI
Description
Pneumatic Actuated 3 Way Hygienic Ball Valve is a fully maintainable three port ball valve; particularly suited for on / off operation, food processing, pharmaceutical and high velocity sanitary applications. A pneumatically actuated high performance, three way multiport, sanitary Stainless Steel ball valve with cavity filled PTFE seat.
All materials comply with FDA requirements. Suitable for CIP / SIS in-line cleaning.

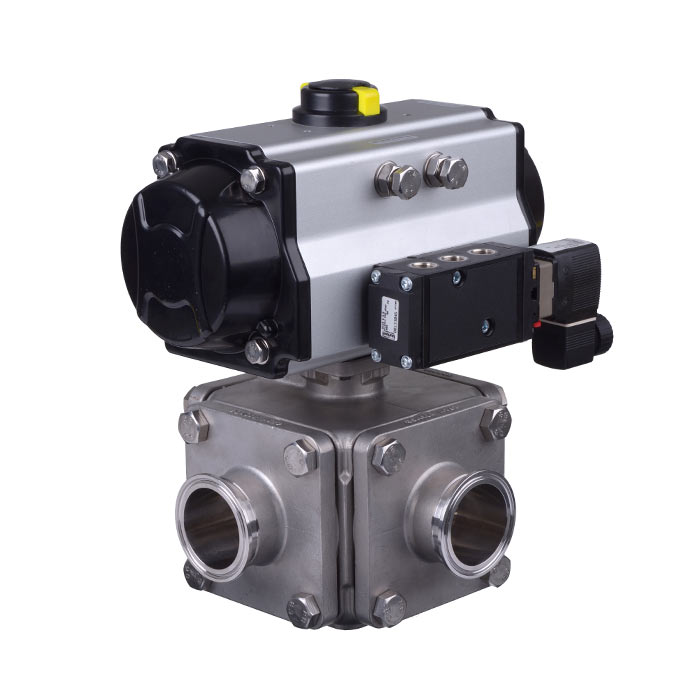

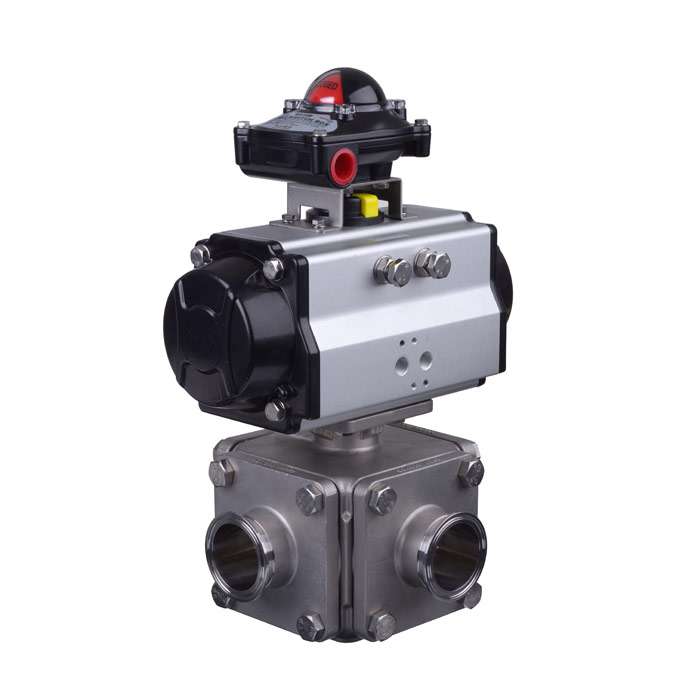

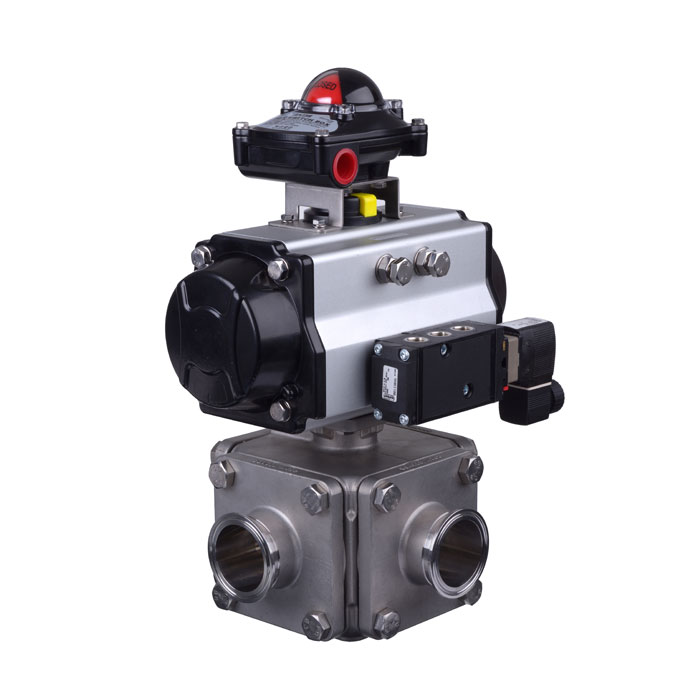

Actuation is either Single or Double acting with a range of configurable options including limit switches, solenoid valves and positioners.
In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Sanitary valve components are cleaned and inspected to ensure they are free from contamination of grease, dust and additional hydrocarbon residues.
All VOLT Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- Butt Weld OD, Tri-Clamp
- Body Material
- Stainless Steel
- Seat Material
- Cavity Filled PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Way
- Industry / Approvals
- Hygienic
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to: 800 PSI
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
