VOLT

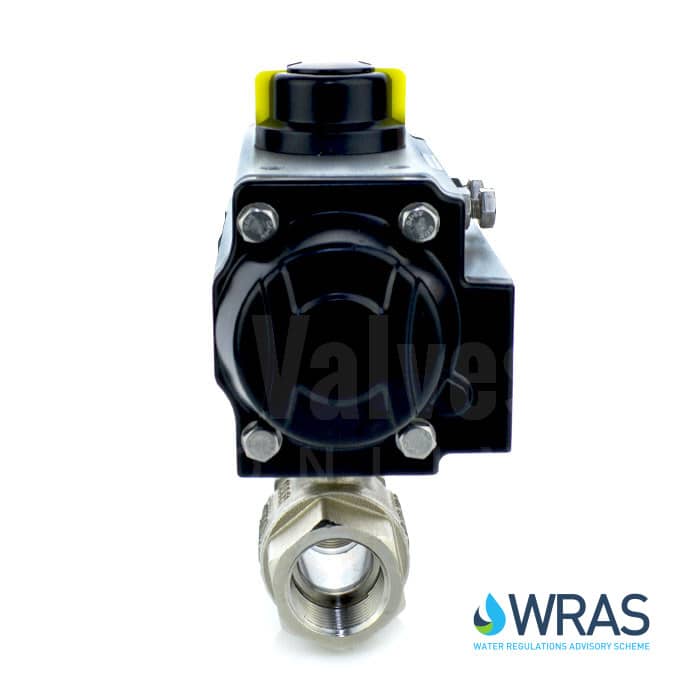

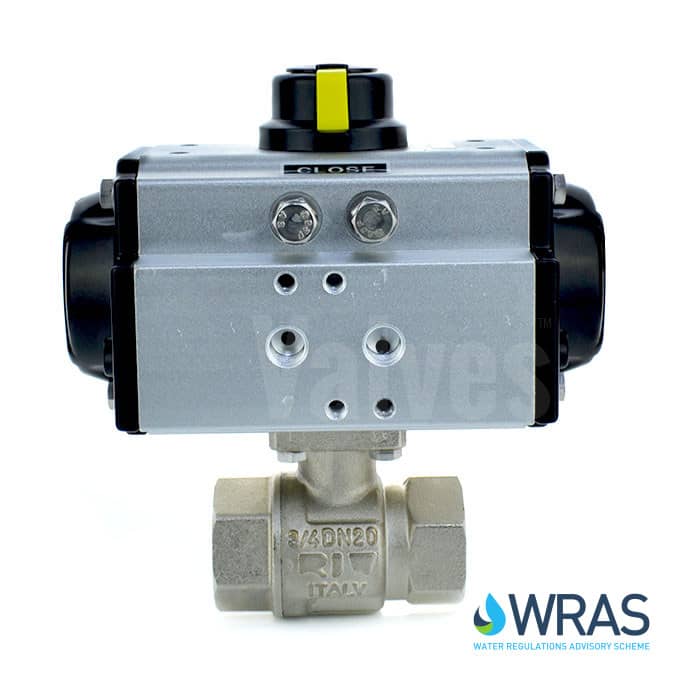

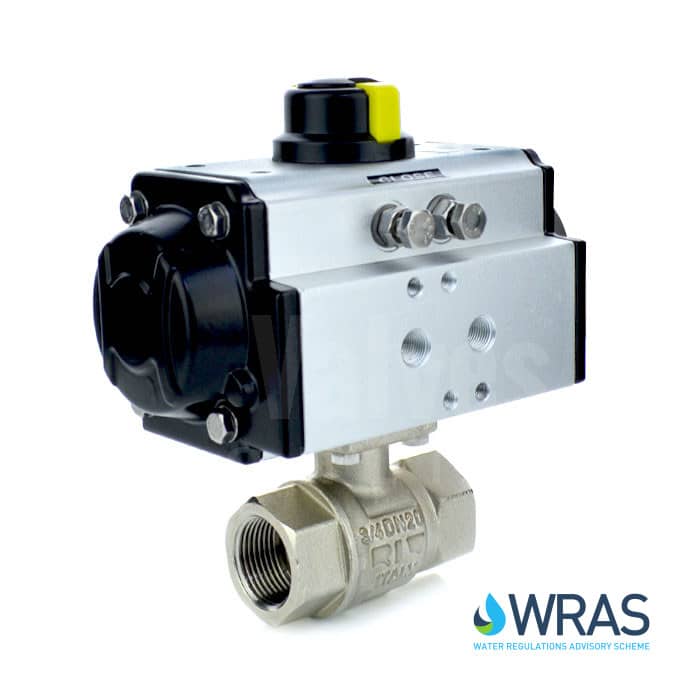

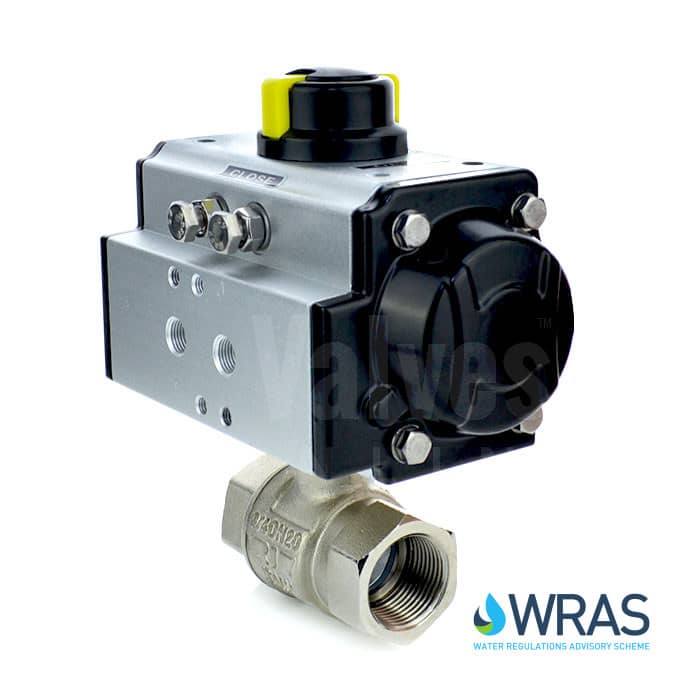

Pneumatic Actuated Screwed 2 Way Brass Ball Valve WRAS Approved
SKU PA4320
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Actuated
- Brass ball valve body
- PTFE seat
- Screwed BSPP
- Sizes 1/2" to 2"
- WRAS Approved
- Pressure range: Up to 40 Bar (subject to configuration)
- Temperature range: -20°C to 95°C
Description
Our Pneumatic Actuated Screwed 2 Way Brass Ball Valve WRAS Approved is suitable for general purpose, HVAC and industrial applications; on/off duty, water isolation, water treatment and compressed air. A pneumatically operated WRAS approved Brass ball valve with PTFE seat.
Actuation is either Single or Double acting with a range of configurable options including limit switches, solenoid valves and positioners.
In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- Female x Female
- Industry / Approvals
- WRAS, HVAC
- Temperature Range
- -20°C to 95°C
- Pressure
- Up to 40 Bar
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
