Images are illustrative and may not show every size or variation.
VOLT
Pneumatic Actuated Lugged PN16 Butterfly Valve - NBR Lined
SKU PA4601
Sizes: 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
Description

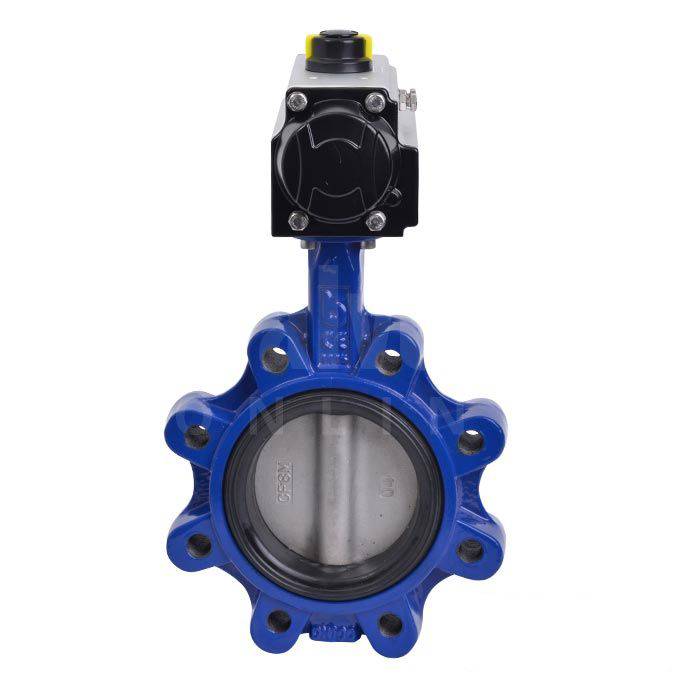

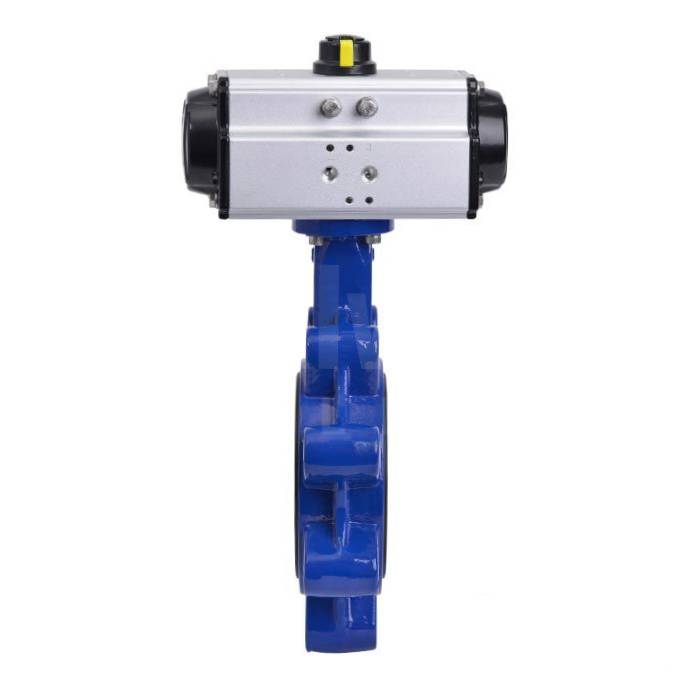

This pneumatic actuated NBR Lined Butterfly Valve is lugged and tapped to suit PN16 flanges, has an epoxy coated ductile iron body and a stainless steel disc and shaft.

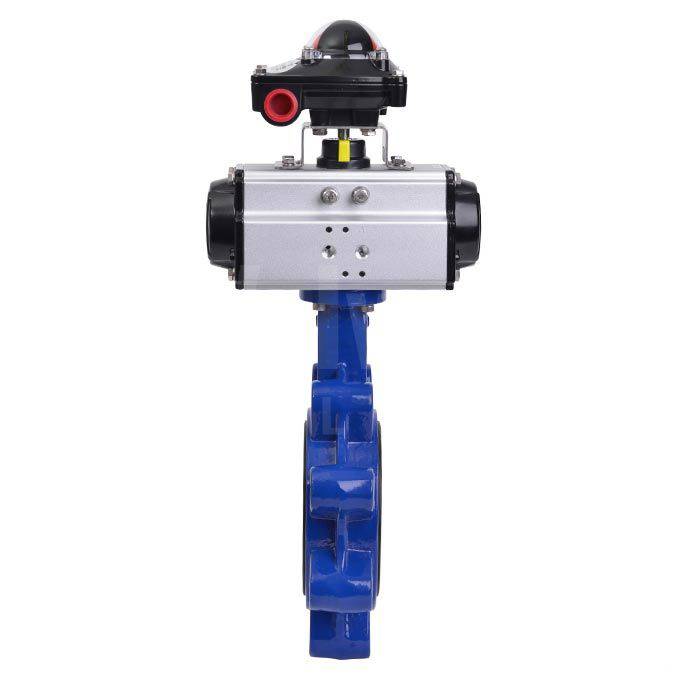

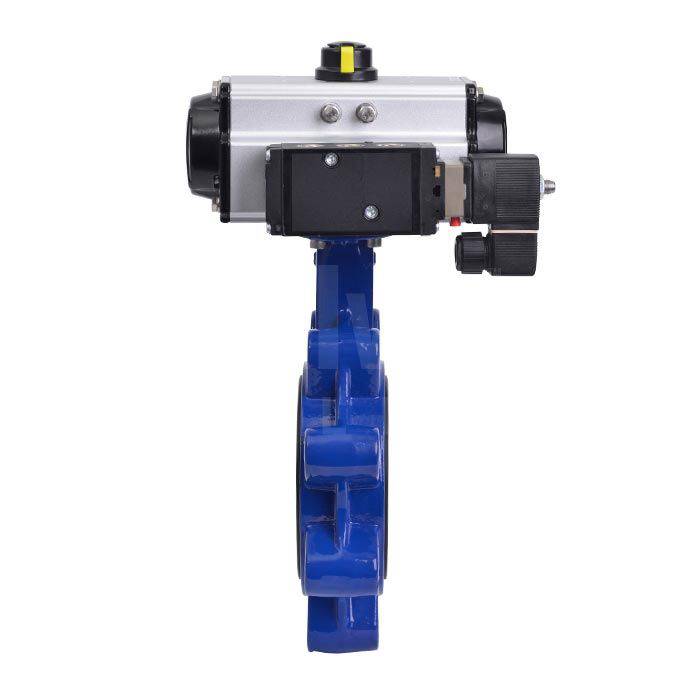

The actuators are manufactured from aluminium, have a hard anodised finish and are ATEX approved/CE marked. All actuators are designed to the latest ISO/NAMUR standards which allow direct mounting of pilot solenoids and switchboxes.
This valve is commonly used for applications such as ‘End of Line Duty’ or fitted before a pump for maintenance isolation.
Technical specification
- Design
- Lugged
- Flange Accommodation
- PN16
- Body Material
- Ductile Iron
- Size
- 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
- Disc Material
- Stainless Steel
- Liner
- NBR (BUNA)
