VOLT
Pneumatic Actuated High Temperature Ball Valve
SKU PA4291
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Actuated
- Stainless Steel ball valve body
- Carbon filled reinforced PTFE seat and seal
- Three piece, high performance, full bore
- TSM extension
- Screwed BSP, Socket Weld or NPT end connections
- Sizes 1/2" to 2"
- Suitable for Steam applications
Description
A high temperature Pneumatically actuated ball valve suitable for more arduous applications. The full bore, 3 piece valve comes in stainless steel with options for various end connections, Carbon filled reinforced PTFE seat and seal.
The valve is fitted to a powerful pneumatic spring return or double acting actuator via a heat dissipating extension (TSM).

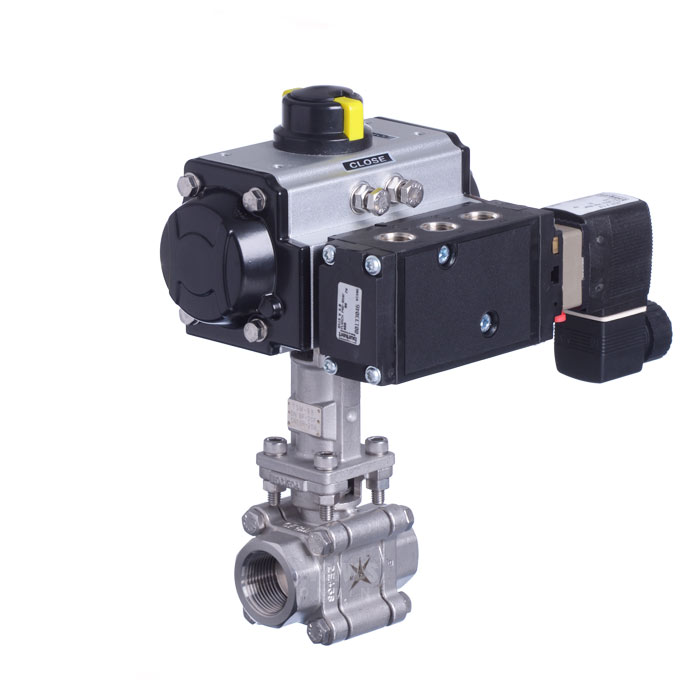

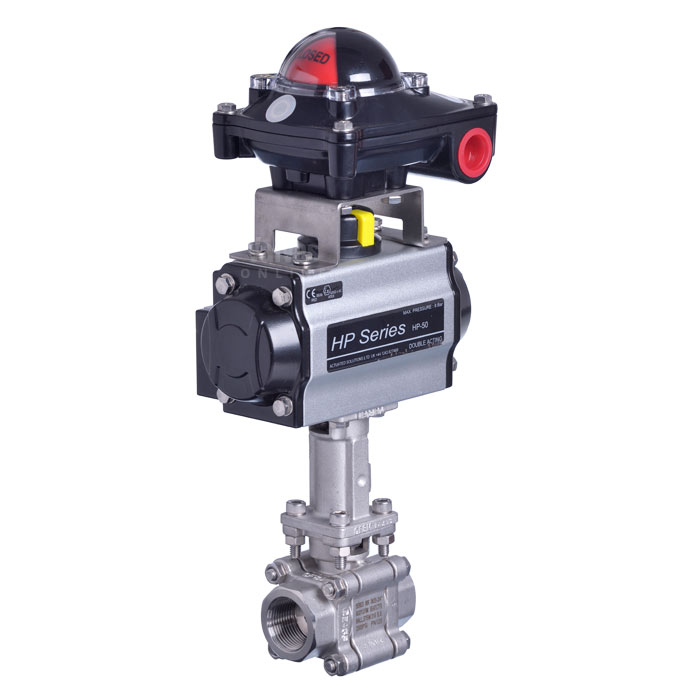

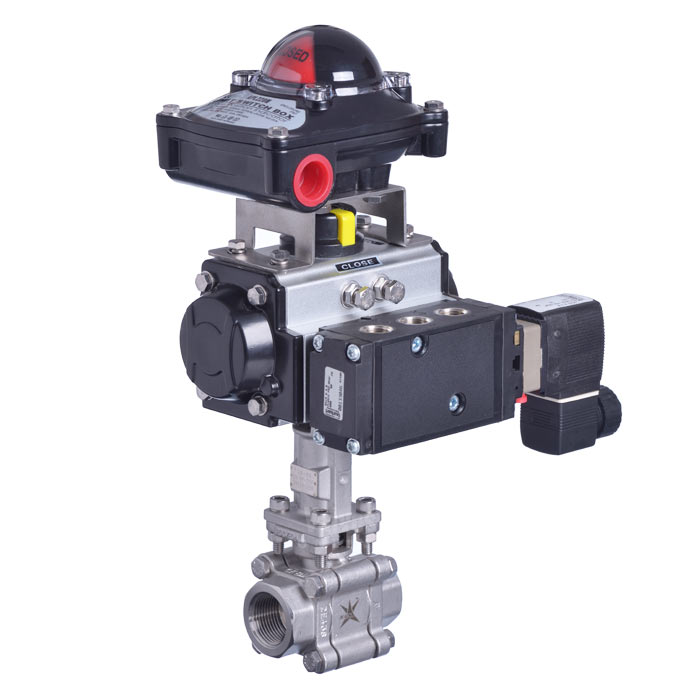

Configurable options include limit switches, solenoid valves and positioners.
In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSP, NPT, Socket Weld
- Body Material
- Stainless Steel
- Seat Material
- Carbon Filled Reinforced PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 3 Piece, Full Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to: 2000 PSI
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
