Images are illustrative and may not show every size or variation.
VOLT

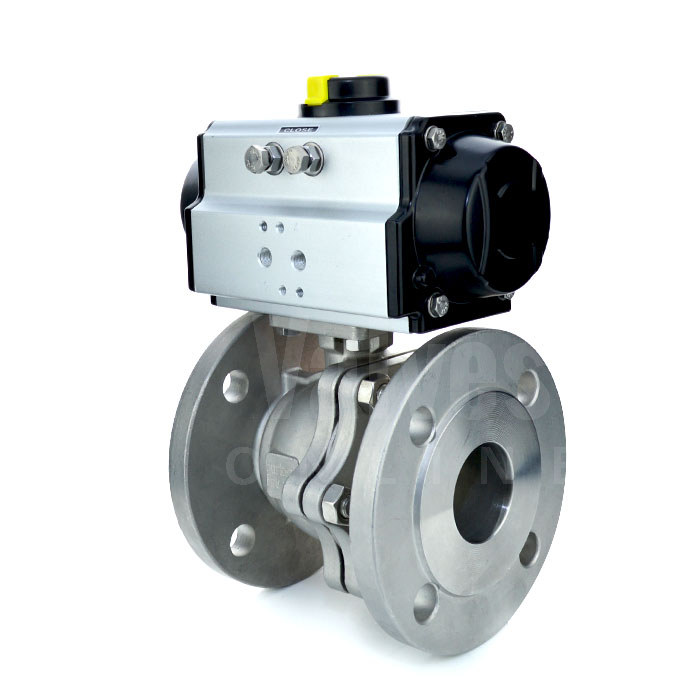

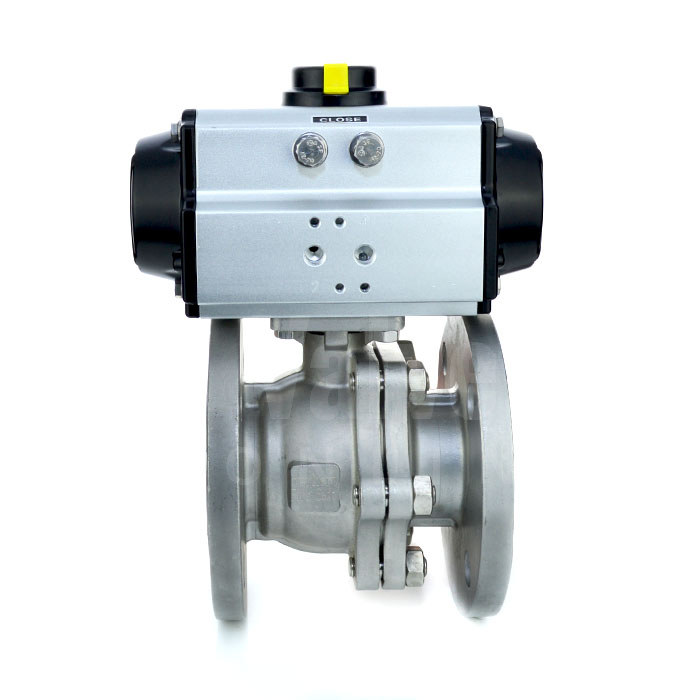

Pneumatic Actuated Economy PN16 Flanged Ball Valve
SKU PE5245
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Air Operated Economy Flanged Ball Valve
- Pneumatic Actuated
- PN16 Flanged, Full Bore
- Stainless Steel Valve Body
- PTFE seat
- Sizes 1/2" to 4"
Description
Our Pneumatic Actuated PN16 Flanged Ball Valve provides safe operation for isolation, general and industrial chemical applications, offering value for money, performance and reliability. A pneumatically actuated flanged full bore valve with Stainless Steel two piece body design and PTFE seat.

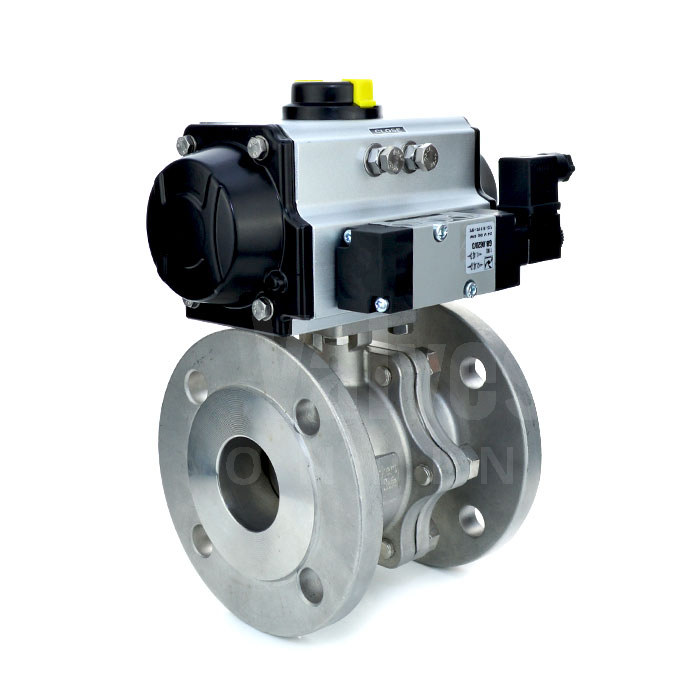

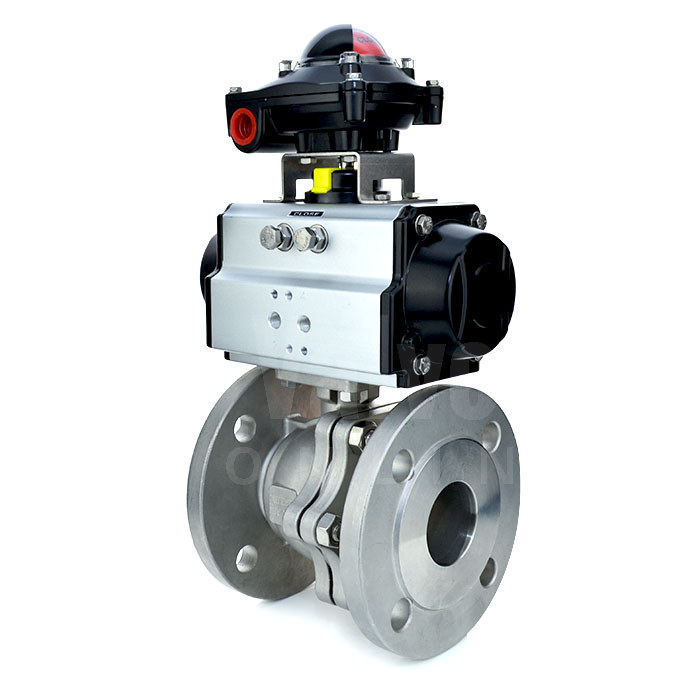

Actuation is either Single or Double acting with a range of configurable options including limit switches, solenoid valves and positioners.
In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Pneumatic Actuated Economy PN16 Flanged Ball Valve Datasheet
Pneumatic Actuator Datasheet
Pilot Solenoid Datasheet
Switchbox Datasheet
Manual Ball Valve Datasheet
Technical specification
- End Connection
- Flanged PN16
- Body Material
- Stainless Steel
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 2 Piece, Full Bore
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- -20°C to 180°C
- Pressure
- PN16 Rated
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
