Images are illustrative and may not show every size or variation.
VOLT

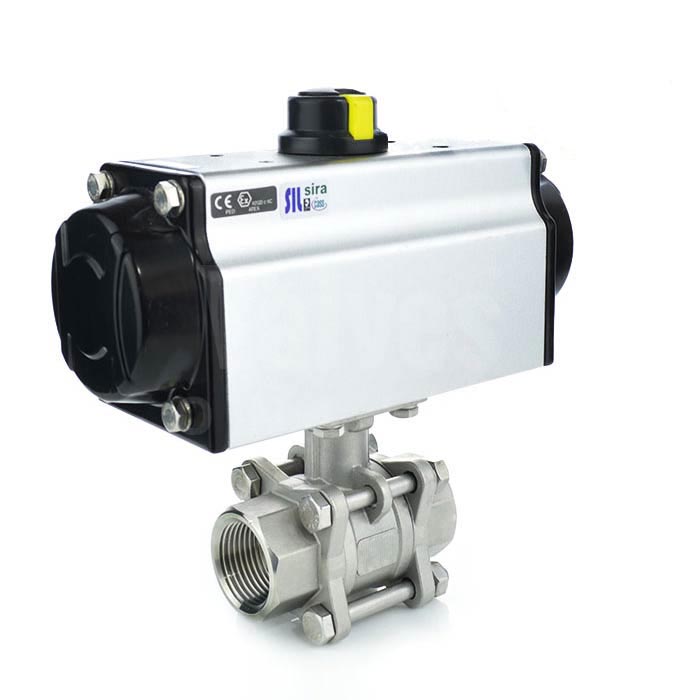

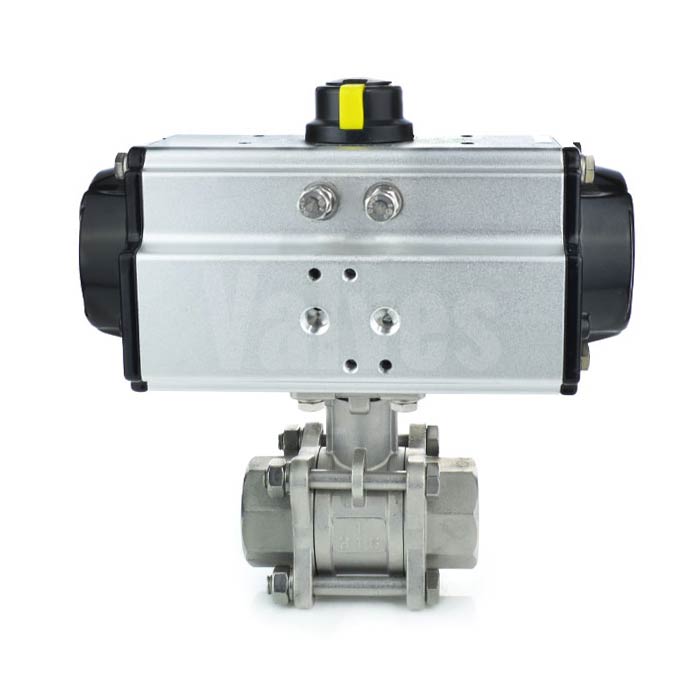

Pneumatic Actuated Economy 3 Piece Stainless Steel Ball Valve
SKU PE4107
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Actuated
- Stainless Steel Ball Valve body
- Three piece, full bore
- Screwed BSPT
- Sizes 1/4" to 4"
- Temperature range: -20°C to 200°C
- Pressure range: 1000 PSI
Description
Our Pneumatic Actuated Economy 3 Piece Stainless Steel Ball Valve is a fully maintainable three piece, full bore isolating valve; providing a cost-effective solution for the 'shut-off' of medium flows on semi aggressive fluids. A pneumatically actuated reliable valve with Stainless Steel body and PTFE seat.

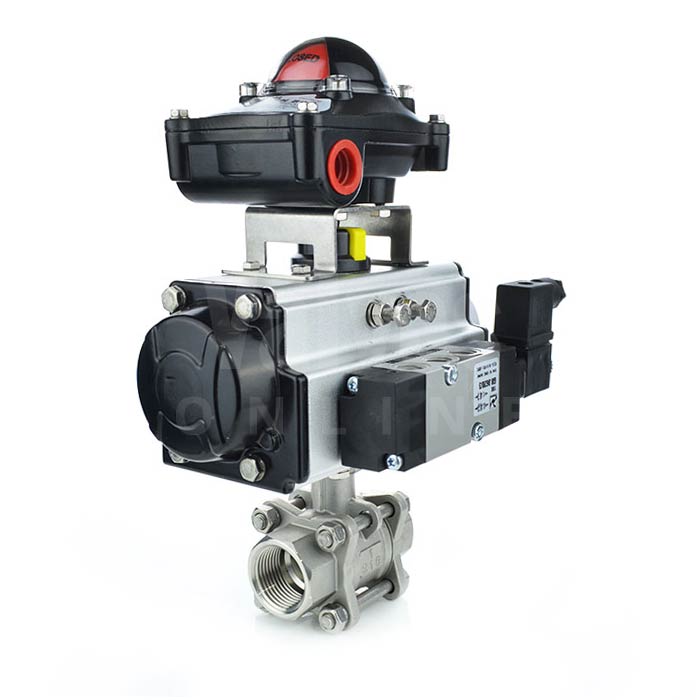

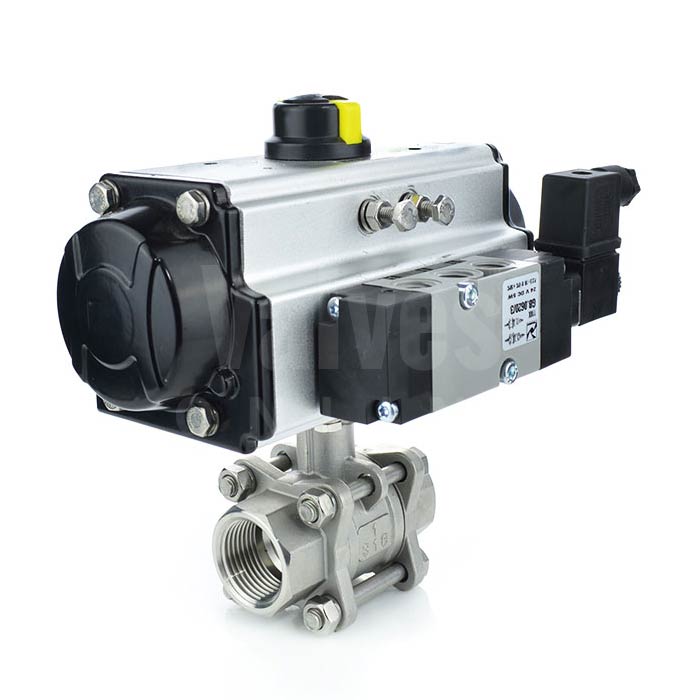

Actuation is either Single or Double acting with a range of configurable options including limit switches, solenoid valves and positioners.
In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Pneumatic Actuated Economy 3 Piece Stainless Steel Ball Valve Datasheet
Mechanical Limit Switchbox Operation Datasheet
Namur Pilot Solenoid Valve Datasheet
Pneumatic Actuator Datasheet
Technical specification
- End Connection
- BSPT
- Body Material
- Stainless Steel
- Seat Material
- RPTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Full Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to: 1000 PSI
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
