Pneumatic Actuated Economy 3 Piece Ball Valve for Steam
SKU PE8809
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Economy Actuated Steam Ball Valve
- 1/2” to 2"
- TFM 4215 High Temperature Seats
- Stainless steel Body
- BSP or Socket Weld
- Double Acting and Single acting
- Up to 185°C at 10 Bar
- Fully Maintainable Valve
- Spare kits available
Description
Our economic automatic steam valve is a pneumatically actuated ball valve designed for low cost plant automatic isolation. Supplied in sizes from 1/2" - 2".
Fully maintainable, with full bore internals and is rated for steam at 10 Bar. Comprising of a three piece stainless steel investment cast body with TFM 4215 Sealing.

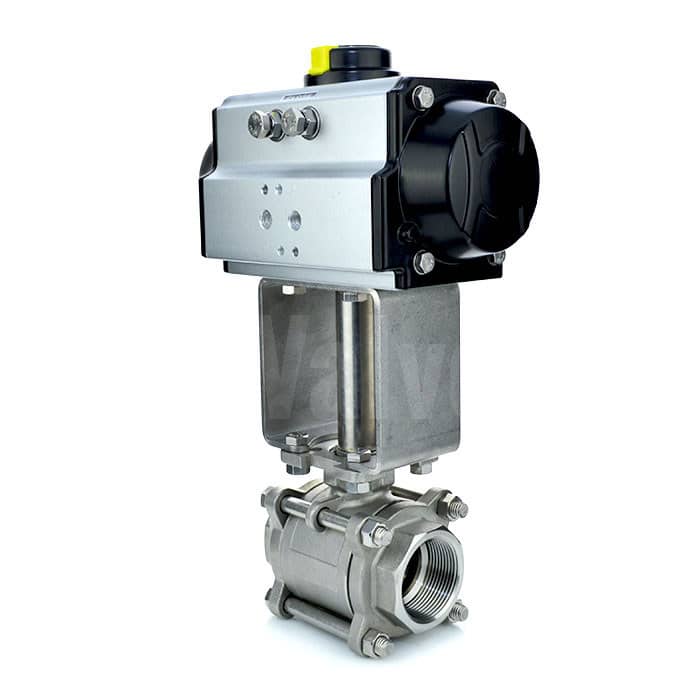

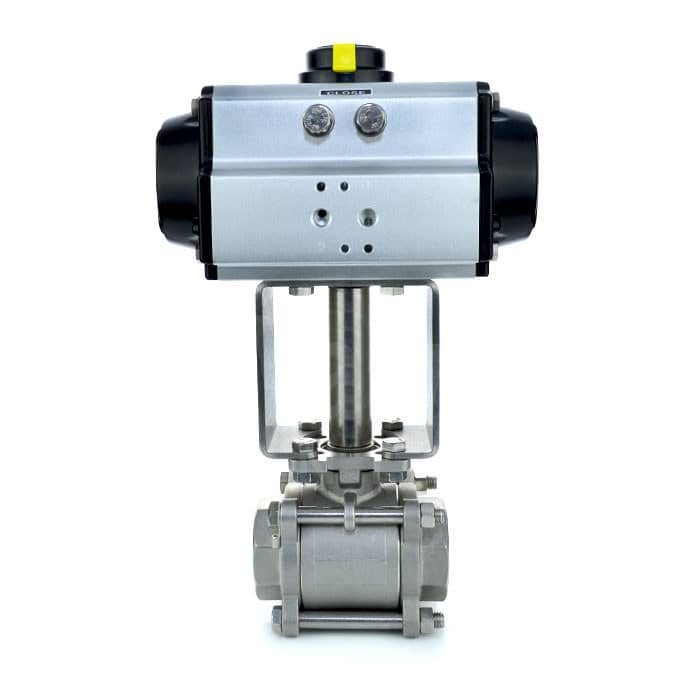

The valve offers a high cycle life and has self-adjusting packing glands, fitting directly onto a powerful pneumatic actuator, via a universal mounting pad ISO 5211 and a 4” heat dissipating bracket.

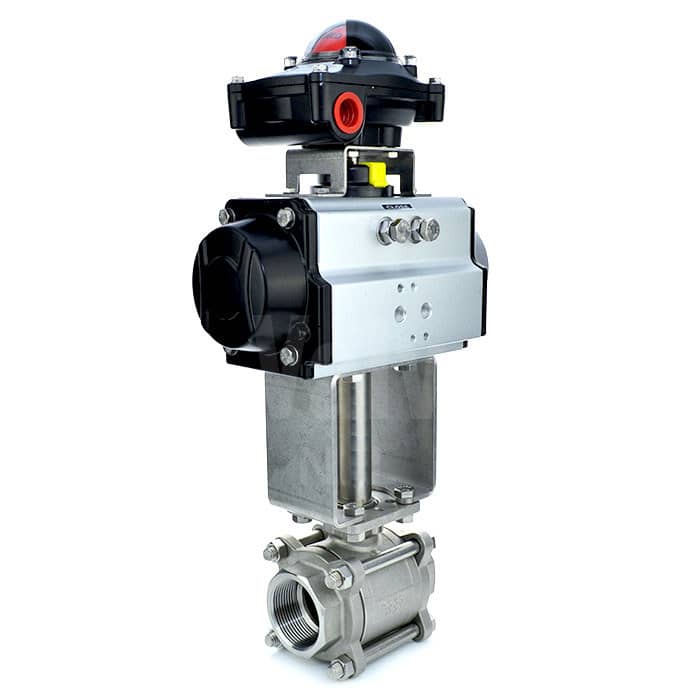

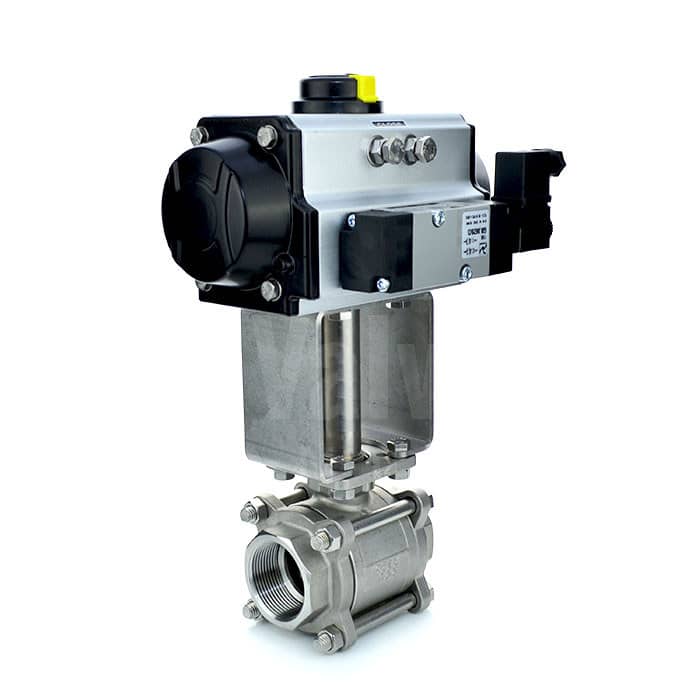

Offered in both single and double acting actuator functions, with the addition of universal mounting platforms on the actuator for position feedback switchbox, Namur pilot solenoids and gearbox override.
Supplied in various End Connections: - BSP, Socket.
Typical applications include:
What is TFM 4215
TFM-4215 is classed as the second-generation of modified polytetra-fluoro-ethylene (PTFE). This seal material maintains all the chemical and heat resistance characteristics of conventional PTFE, but has a significantly lower melt viscosity.
Pneumatic Actuated Economy 3 Piece Ball Valve for Steam Datasheet
Pneumatic Actuator Datasheet
Economy Pilot Solenoid Datasheet
Switchbox Datasheet
Technical specification
- End Connection
- BSP, Socket Weld
- Body Material
- Stainless Steel
- Seat Material
- TFM 4215
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 3 Piece, Female x Female
- Industry / Approvals
- High Temperature
- Temperature Range
- Up to: 185°C at 10 Bar
- Pressure
- Up to: 1000 psi
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
