VOLT
Pneumatic Actuated 3 Way Economy Brass Ball Valve
SKU PE4321
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Actuated
- Brass Ball Valve
- PTFE seat
- 3 Way, L or T port , reduced bore
- Screwed BSP
- Sizes 1/2" to 2"
- Temperature range: up to 100°C
- Pressure rating: PN40
Description
Our Pneumatic Actuated 3 Way Economy Brass Ball Valve is suitable for general and industrial chemical applications, offering value for money, performance and reliability. A pneumatically actuated 3 way L or T port ,reduced bore valve with Brass body and PTFE seat. Available in Screwed BSP, sizes 1/2" to 2".

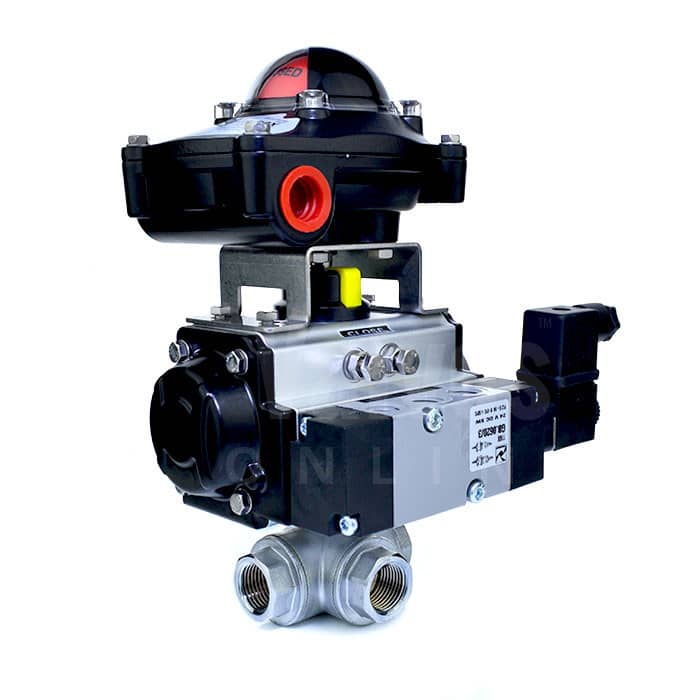

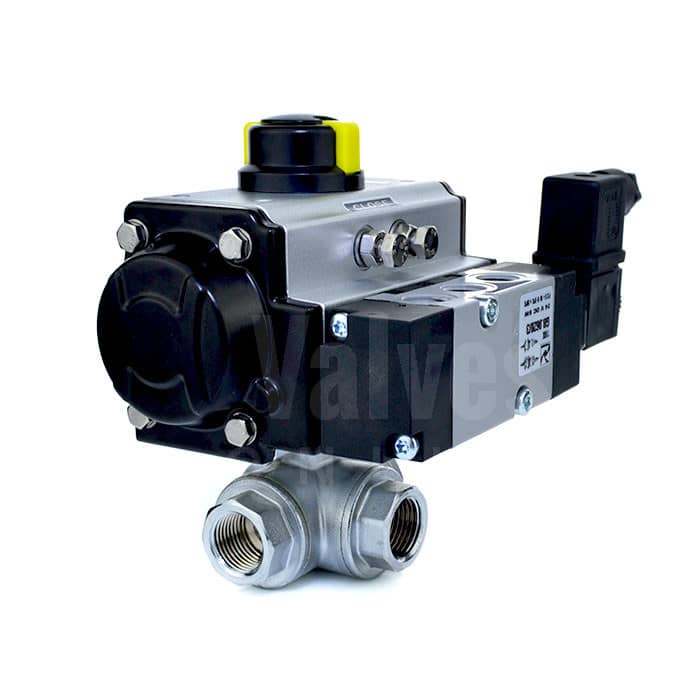

Actuation is either Single or Double acting with a range of configurable options including limit switches, solenoid valves and positioners.

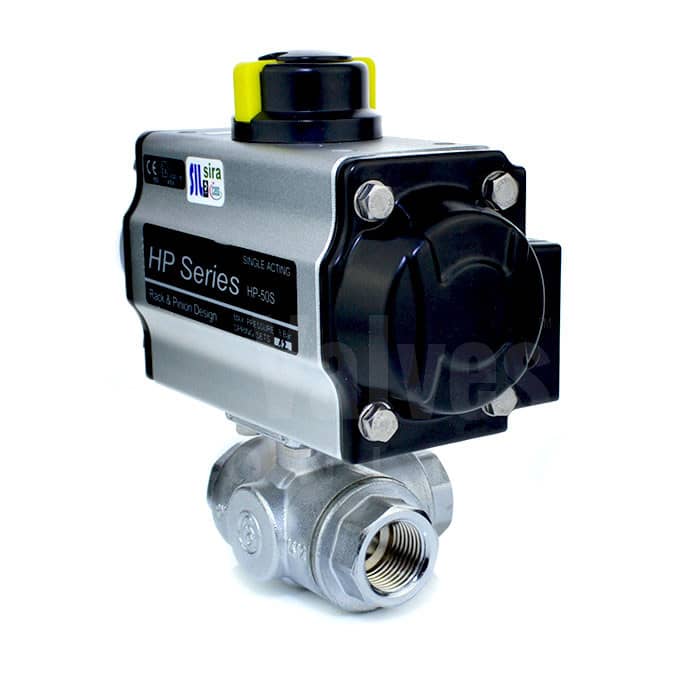

In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Pneumatic Actuated 3 Way Economy Brass Ball Valve Datasheet
Pneumatic Actuator Datasheet
Economy Pilot Solenoid Datasheet
Switchbox Datasheet
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 3 Way, Reduced Bore
- Industry / Approvals
- General / Industrial / Process
- Temperature Range
- Up to: 100°C
- Pressure
- PN40 Rated
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
