Images are illustrative and may not show every size or variation.
VOLT
Pneumatic Actuated 3 Way Brass Ball Valve
SKU PA4321
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Pneumatic Actuated 3 Way Brass Ball Valve
- Brass Body
- PTFE Seat
- L or T Port
- Reduced Bore
- Screwed BSP
- Sizes: 1/2" to 2 1/2"
Description
Our Pneumatic Actuated 3 Way Brass Ball Valve is suitable for general and industrial chemical applications, offering value for money, performance and reliability. A pneumatically actuated 3 way L or T port ,reduced bore valve with Brass body and PTFE seat. Available in Screwed BSP, sizes 1/2" to 2 1/2".

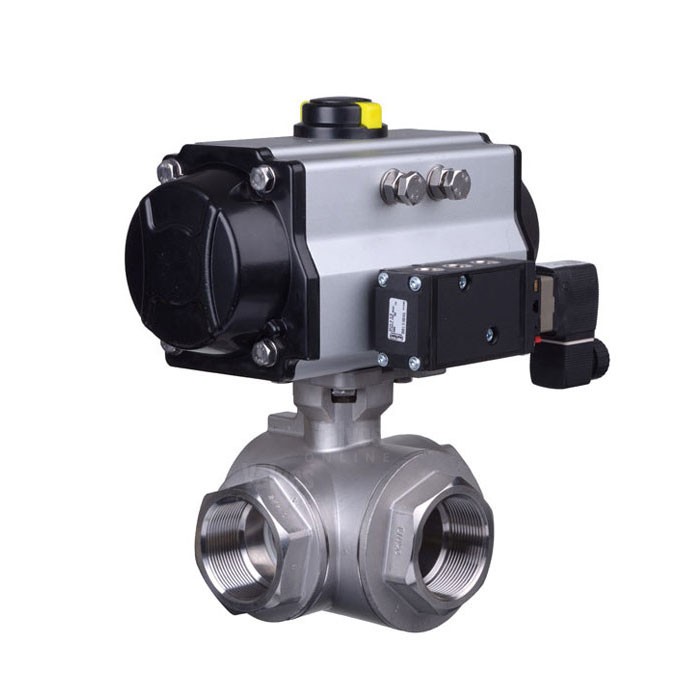

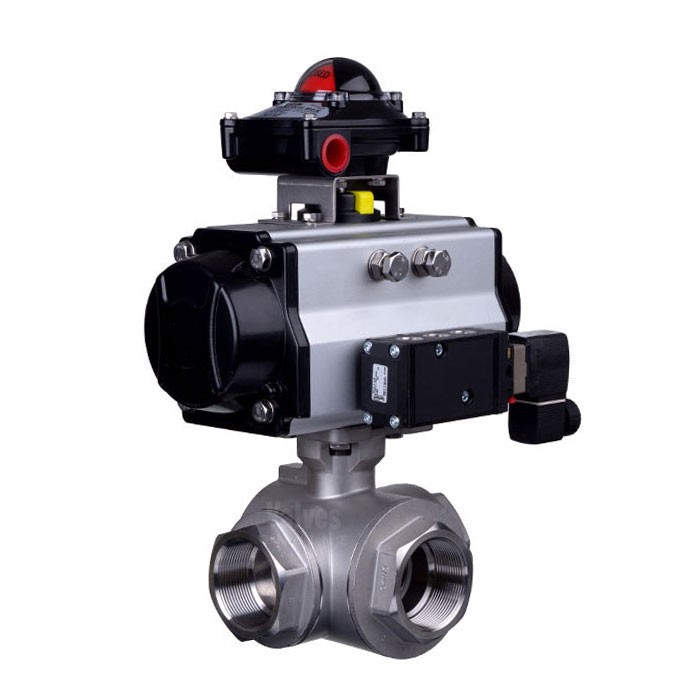

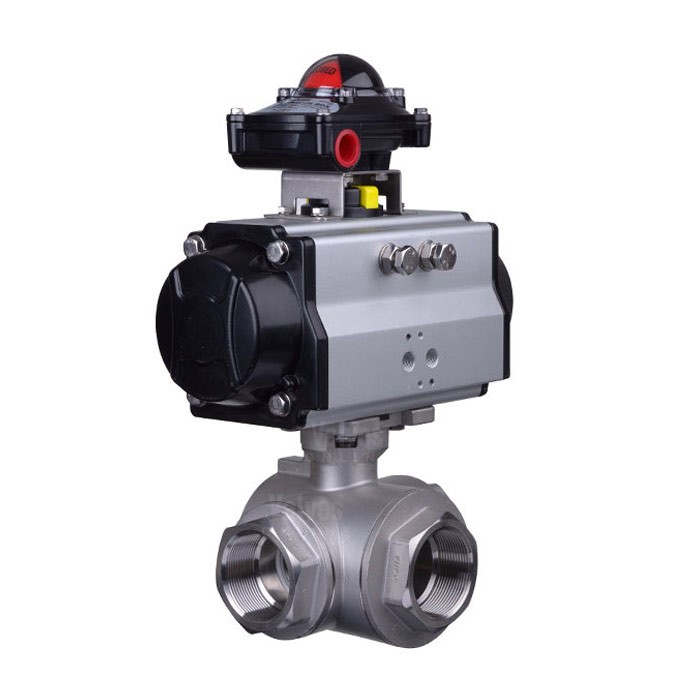

Actuation is either Single or Double acting with a range of configurable options including limit switches, solenoid valves and positioners.
In addition, our pneumatic quarter turn rack and pinion actuator is sized with a 30% safety factor built-in, requiring a pilot pressure of 5.5 Bar and benefits from a Namur interface for both pilot solenoid valve and switchbox.
Pneumatic Actuated Ball Valves are designed to meet the demanding needs of today's process flow control requirements. During build up all actuated packages are rigorously inspected and 100% factory tested prior to dispatch.
Technical specification
- End Connection
- BSP
- Body Material
- Brass
- Seat Material
- PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65)
- Design
- 3 Way, Reduced Bore
- Industry / Approvals
- HVAC
- Temperature Range
- Up to 100°C
- Pressure
- PN40 Rated
- Actuator
- HP Pneumatic Actuator
- Actuator Features
- Spring Return or Double Acting
