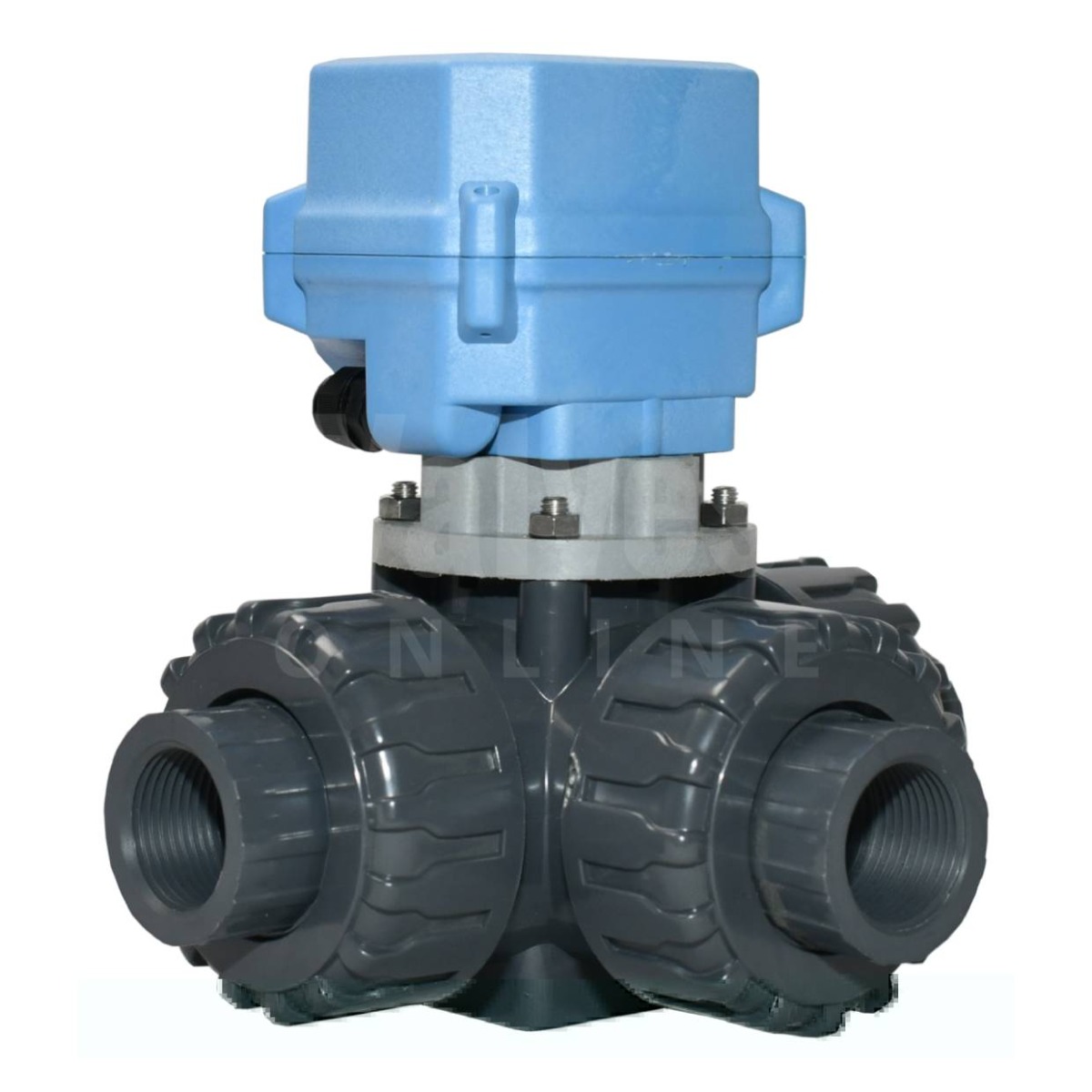

Images are illustrative and may not show every size or variation.
VOLT
Motorised 3 Way Electric Ball Valve
SKU EA4103
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- 304 stainless steel body
- 3-way: L-port, and T-port
- FKM, and PTFE seals
- Floating, no leakage design
- Sizes available: ¼”, 3/8”, and ½”
- Media temperature range: -15°C to +100°C
- Ambient temperature range: -15°C to +50°C
- Pressure range: 0 to 10 BAR
- Fitted with an ABVM actuator
- IP67 ABS case, metal gears
Description
A compact, electrically actuated ball valve suitable for air, water, gases and liquids. The valve features a 3-way, 304 stainless steel body, and FKM and PTFE seals.
Available in sizes ¼”, 3/8”, and ½” with BSP end connections. Offered as either L-port or T-port valves; with 4 configuration options A, B, C, and D, for the T-port version.
Supplied pre-fitted with an electrically operated ABVM actuator with 24V AC/DC, and 110-240V AC voltage options. Supplied as standard with a visual position indication, failsafe return, and manual override – lift and turn for the 24V option.
The ball valve has a media temperature range of -15°C to +100°C, ambient temperature range of -15°C to +50°C, and a working pressure range of 0 to 10 BAR.
Technical specification
- End Connection
- BSP
- Body Material
- Stainless Steel
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15)
- Design
- 3 Way
