Mars

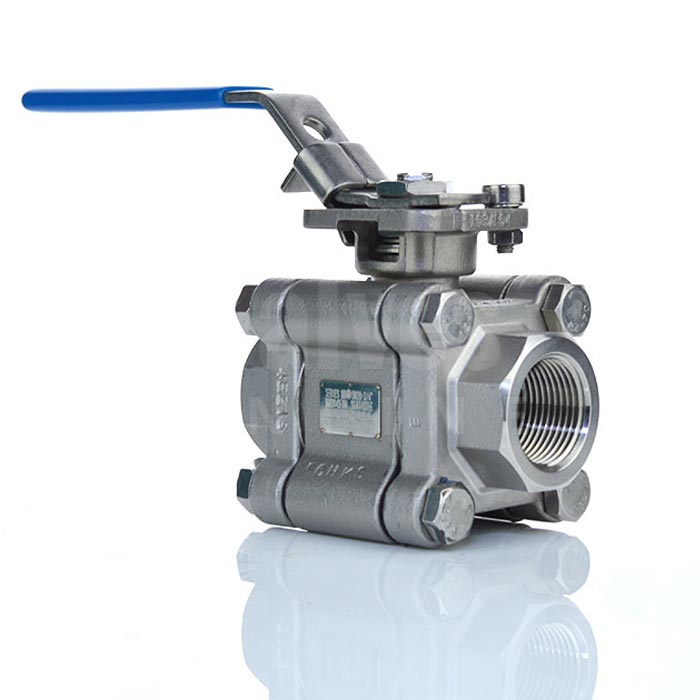

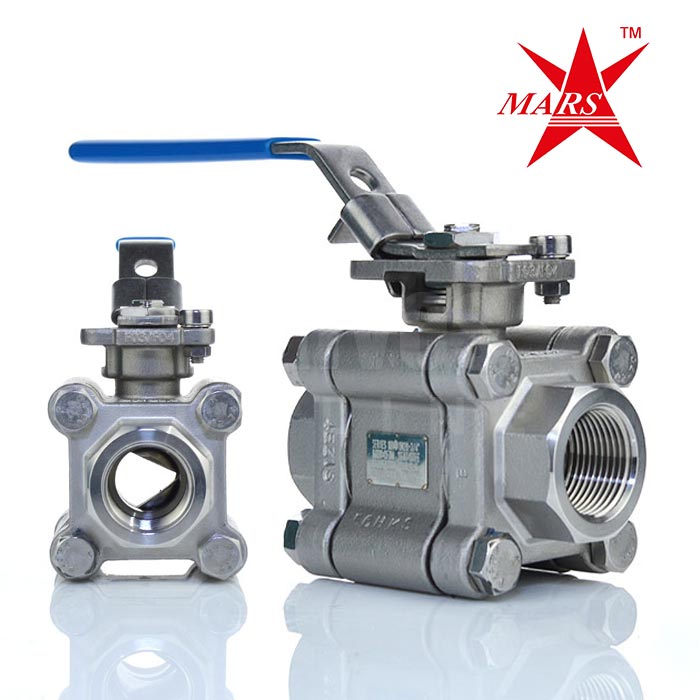

Mars V Sector Control Ball Valve Series 88
SKU BV4700
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Manual V Port Ball Control Valve
- 30°, 60° or 90° V Ball Control Options
- Heavy Duty
- Stainless Steel CF8M Body
- ISO Direct Mounting Pad
- BSP, NPT, Socket Weld or Butt Weld End Connections
- Sizes: 1/2" to 2"
- Supplied with Handle
Description

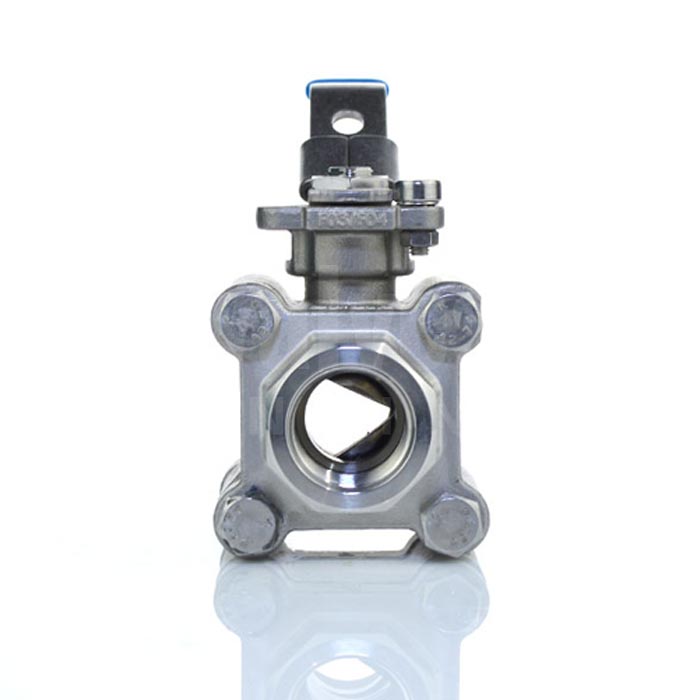

This V Control ball valve offers an excellent choice for modulating service. The series 88 ball valve has an encapsulated stainless steel three piece body, which offers easy maintenance. The V sector balls come in 30°, 60° and 90° options, designed to suit your exacting flow requirement.
Smaller, lighter and lower in cost than conventional globe or segmented valves, this high performance V sector ball valve offers consistent and accurate control.
V Control ball valves are used over conventional ball valves, giving greater control through the V segment.
Used to control temperature, flow, level and PH. The valve is easy to service, allowing maintenance to be undertaken whilst the valve is still in situ. Another important fact is the seat material is 50% stainless steel filled PTFE, allows greater life over soft seats. The machined ball and stem provide the best possible hysteresis.
The Mars Series 88 benefits from a direct mount ISO mounting top for actuation. When combined with electric or pneumatic actuation it offers low cost and light weight, easy automation.
Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.
Technical specification
- End Connection
- BSP, NPT, Socket Weld, Butt Weld OD
- Body Material
- Stainless Steel
- Seat Material
- 50% Stainless Steel / 50% PTFE filled
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 3 Piece, Full Bore, Female x Female
- Lever
- Manual Lockable Lever
- Temperature Range
- 20°C to +200°C
- Pressure
- 2000 PSI (1/2" to 1"), 1500 PSI (1 1/4" to 2")
- Actuatable?
- Yes - ISO Mounting Top
