Images are illustrative and may not show every size or variation.
Mars

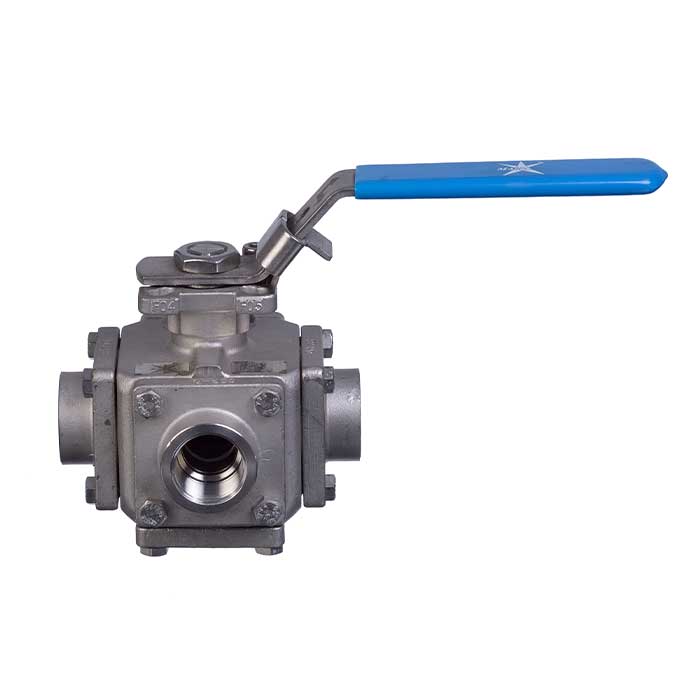

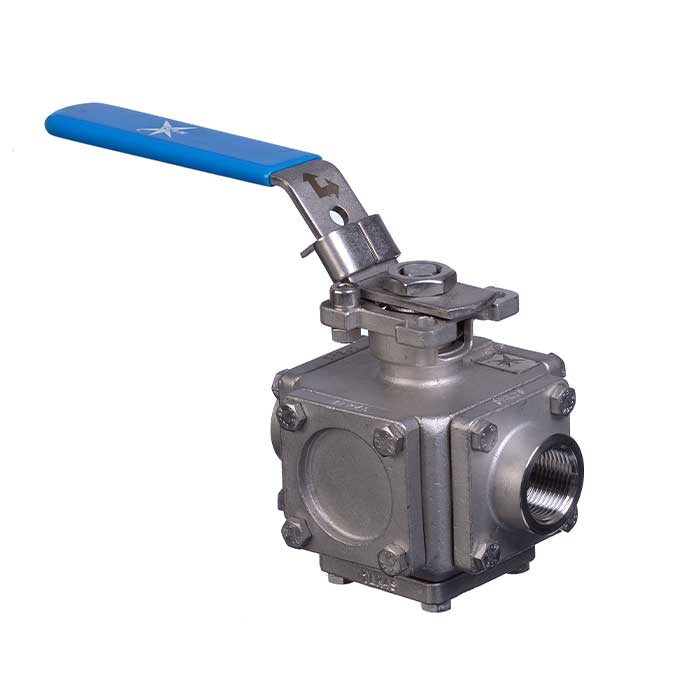

Mars Ball Valve Series 33 3 Way Full Bore Direct Mount
SKU BV5130
from£383.50ex VAT Not the right one? Identify your valve by photo
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars Ball Valve Series 33 3 Way Full Bore Direct Mount
- For general and industrial chemical applications
- Body material: Stainless Steel
- End connection: Screwed BSP, Socket Weld, Butt Weld or NPT
- Three way, L or T port, full bore
- Reinforced PTFE seat and ISO mounting top for actuation
- Sizes: 1/4" to 4"
- Temperature range: -20 °C to 200°C.
- Operating pressure: 1/4" to 1" 1000 PSI, 1 1/4" to 2" 800 PSI and 2 1/2" to 4" 600 PSI
- ATEX Approved
Description
Our Mars Ball Valve Series 33 3 Way Full Bore Direct Mount provides safe operation for both general and industrial chemical applications, offering superior performance and reliability. A 3 way full bore valve with Stainless Steel body, reinforced PTFE seat and ISO mounting top for actuation.
Features live-loaded chevron PTFE gland packing.
Investment cast with low torque.
Technical specification
- End Connection
- BSP, NPT, Socket Weld, Butt Weld OD
- Body Material
- Stainless Steel
- Seat Material
- Reinforced PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Way, Full Bore
- Industry / Approvals
- ATEX
- Lever
- Lockable Manual Lever
- Temperature Range
- -20 °C to 200°C
- Pressure
- Up to: 1000 PSI (1/4" to 1"), 800 PSI (1 1/4" to 2") & 600 PSI (2 1/2" to 4")
- Actuatable?
- Yes - features ISO Direct Mounting Pad
Related products
MarsSKU BV5131
Mars 3 Way Series 33 PN16 & ANSI 150 Ball Valve
from£478.19ex VATView →
MarsSKU BV5108
Mars Ball Valve Series 22 2 Piece Full Bore Stainless Steel Ball Valve
from£54.01ex VATView →
MarsSKU BV5109
Mars Ball Valve Series 22 with Spring Return Handle
from£173.27ex VATView →
MarsSKU BV5137

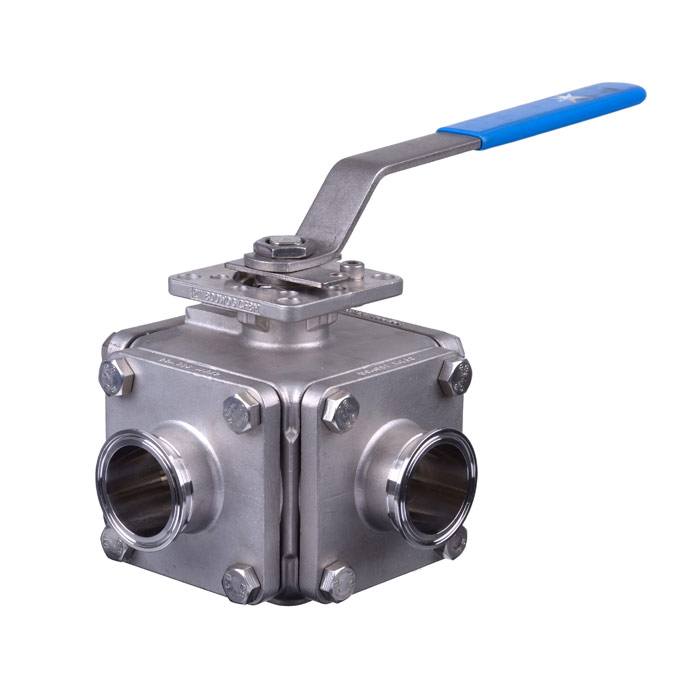

Mars Ball Valve Series 36SN 3 Way Hygienic Direct Mount OD Weld End
