Images are illustrative and may not show every size or variation.
Mars

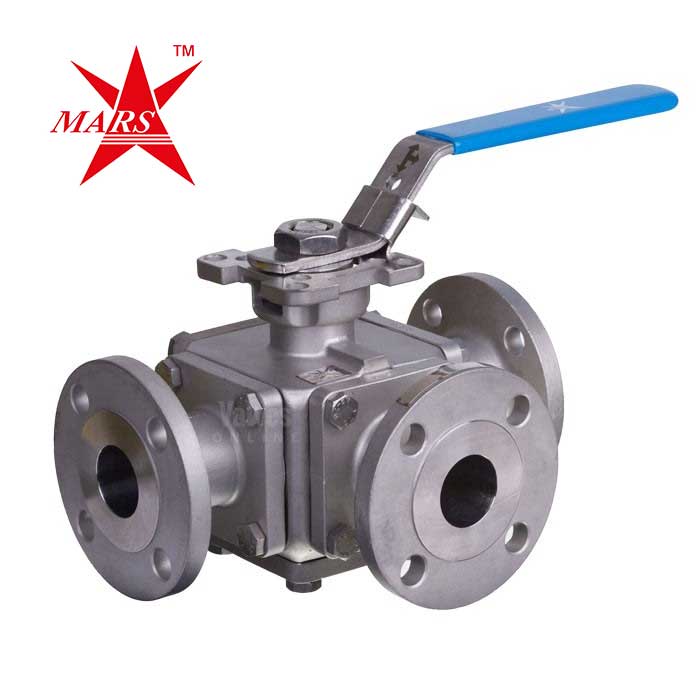

Mars 3 Way Series 33 PN16 & ANSI 150 Ball Valve
SKU BV5131
from£478.19ex VAT Not the right one? Identify your valve by photo
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- 3 Way Mars Series 33
- Stainless Steel body
- Reinforced PTFE seat
- 3 way, L or T Port, full bore, direct mount
- Flanged PN16 or ANSI 150 end connection
- Sizes: 1/4" to 4"
- ATEX Approved
Description
Our Mars Ball Valve Series 33 3 Way Flanged Full Bore Direct Mount provides safe operation for both general and industrial chemical applications, offering superior performance and reliability. A 3 way full bore valve with Stainless Steel body, reinforced PTFE seat and ISO mounting top for actuation in PN16 or ANSI 150.
Features live-loaded chevron PTFE gland packing.
Investment cast with low torque.
Technical specification
- End Connection
- Flanged PN16, Flanged ANSI 150
- Body Material
- Stainless Steel
- Seat Material
- Reinforced PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Way, Full Bore
- Industry / Approvals
- General / Industrial / Process
- Lever
- Manual Lockable Lever
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to: 1000 PSI (1/4" to 1"), 800 PSI (1 1/4" to 2"), 600 PSI (2 1/2" to 4")
- Actuatable?
- Yes - ISO Mounting Pad
