Images are illustrative and may not show every size or variation.
Mars

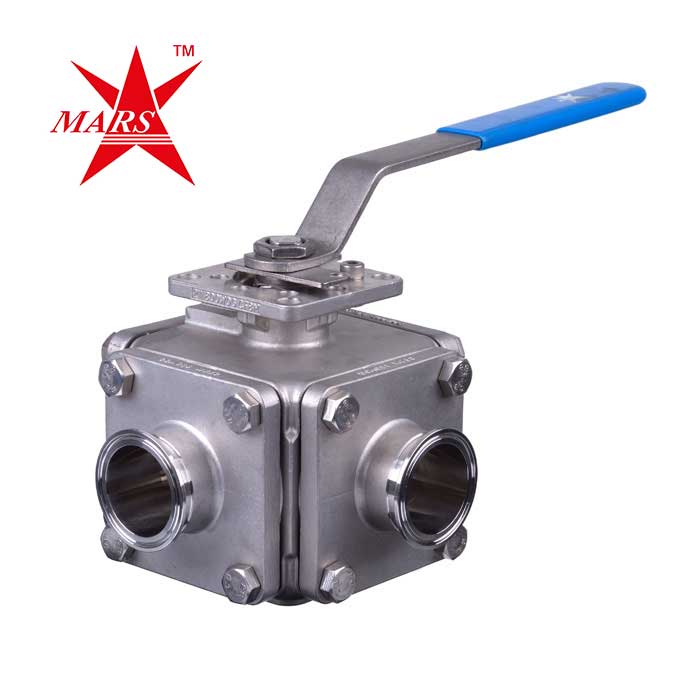

Mars Ball Valve Series 36SN 3 Way Hygienic Direct Mount OD Weld End
SKU BV5137
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars 36SN 3 Way Sanitary Ball Valve OD Weld End
- Stainless Steel body
- Cavity filled PTFE seat
- Three Way, L or T Port, ISO mounting top
- OD Weld End
- Sizes: 1/2" to 4"
- Temperature range: -20°C to 200°C
- Operating pressure: 800 PSI
Description
Our Mars Ball Valve Series 36SN 3 Way Hygienic Direct Mount OD Weld End is a fully maintainable hygienic ball valve; particularly suited for on / off operation, food processing, pharmaceutical and high velocity sanitary applications. A high performance full bore three way multiport valve with Stainless Steel body, cavity filled PTFE seats and ISO mounting top for actuation.
Live loaded stem packing compensates for wear and fluctuations.
All materials comply with FDA requirements. Suitable for CIP / SIS in-line cleaning.
All sanitary valve components are cleaned and inspected to ensure they are free from contamination of grease, dust and additional hydrocarbon residues.
Technical specification
- End Connection
- Butt Weld OD
- Body Material
- Stainless Steel
- Seat Material
- Cavity Filled PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Way, Full Bore
- Industry / Approvals
- Hygienic
- Lever
- Manual Lockable Lever
- Temperature Range
- -20°C to 200°C
- Pressure
- Up to: 800 PSI
- Actuatable?
- Yes - ISO Mounting Pad
