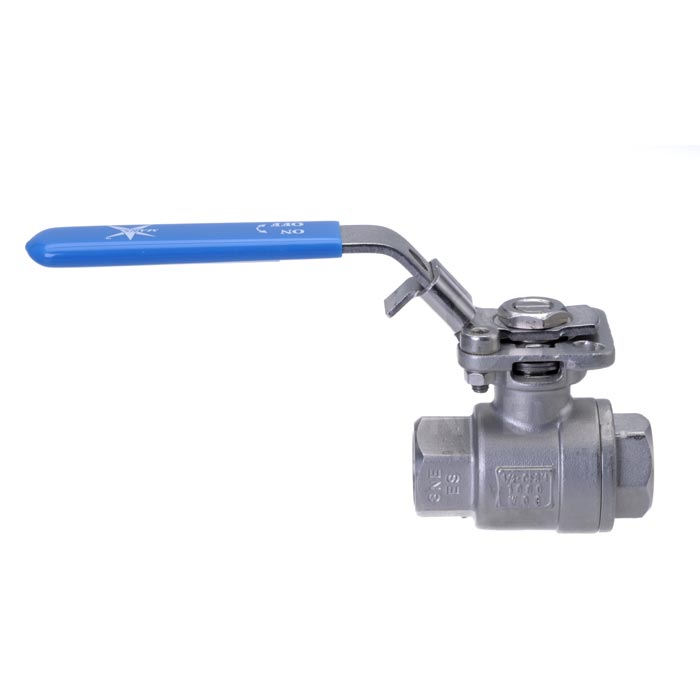

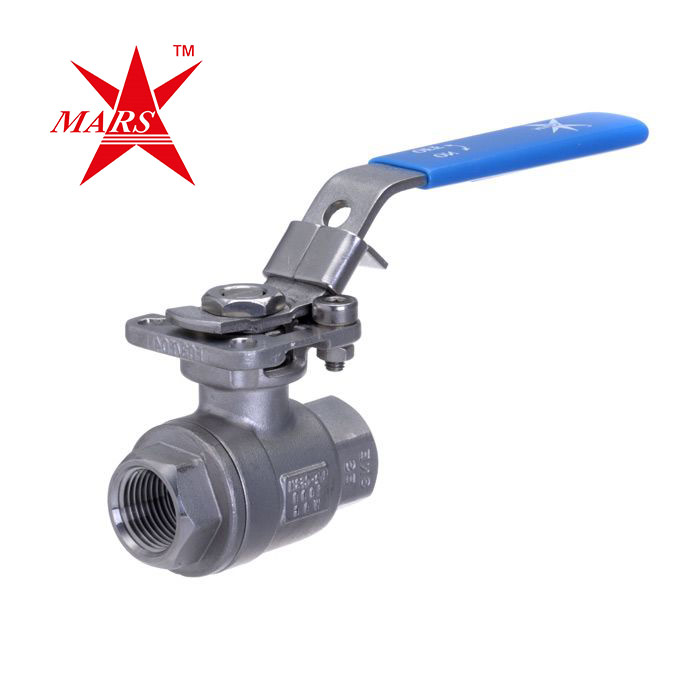

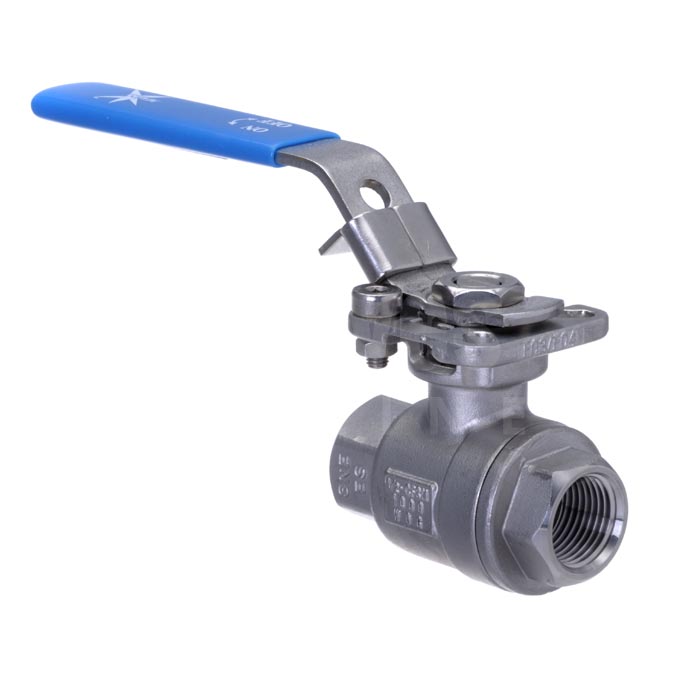

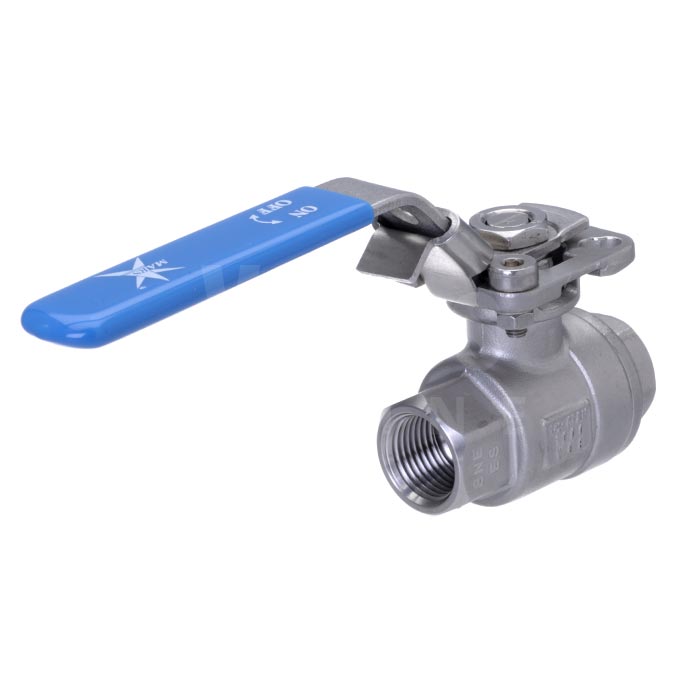

Images are illustrative and may not show every size or variation.
Mars
Mars Ball Valve Series 22 2 Piece Full Bore Stainless Steel Ball Valve
SKU BV5108
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Full Bore, Two Piece Ball Valve
- Stainless Steel Body
- Screwed BSPP or NPT
- PTFE Seat
- Direct Mount Pad
- Sizes: 1/4" to 3"
- Temperature range: -20°C to +180°C
- Operating pressure: 1000 PSI
- ATEX approved
Description
Mars Ball Valve Series 22 Full Bore 2 Piece Stainless Steel Ball Valve with a Direct Mount ISO 5211 mounting top; providing safe operation for both general and industrial chemical applications.
A reliable ball valve with Stainless Steel body and PTFE seat.
The ISO mounting top (direct mount pad) allows an actuator to be directly mounted to the valve, simplifying the assembly process when compared to conventional mounting brackets.
Features a blow-out proof stem and insulated grip, lockable lever handle.
Investment cast with low torque.
Technical specification
- End Connection
- BSP, BSPP, NPT
- Body Material
- Stainless Steel
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
- Design
- 2 Piece, Full Bore, Female x Female
- Industry / Approvals
- ATEX
- Lever
- Lockable Manual Lever
- Temperature Range
- -20°C to +180°C
- Pressure
- Up to 1000 PSI
- Actuatable?
- Yes - features ISO Direct Mounting Pad
