Mars

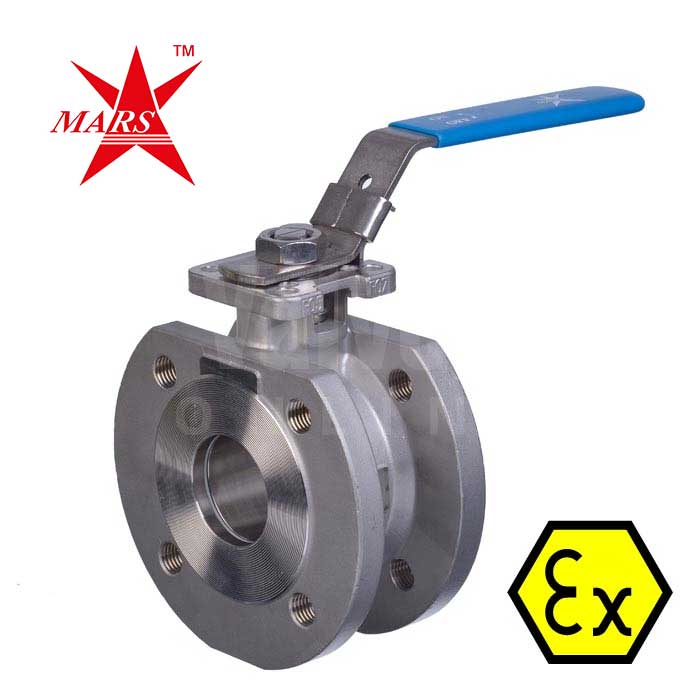

Mars Series 99 Wafer Pattern Ball Valve - ANSI 150
SKU BV5128
from£270.56ex VAT Not the right one? Identify your valve by photo
Sizes: 1" (DN25), 1 1/2" (DN40), 2" (DN50), 3" (DN80), 4" (DN100)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars 99 Wafer Pattern Ball Valve ANSI 150
- Stainless Steel Body
- Wafer Pattern
- Reinforced RTFE seat
- Graphite filled body and neck seals
- 1 Piece, Full Bore, High Performance
- Sizes 1" to 4"
- ATEX Approved
- Anti Static
Description
Mars Series 99 Wafer Pattern Ball Valve, Anti Static, ANSI 150 for both general and industrial chemical applications and hazardous environments.
A 1 piece full bore high performance ATEX approved valve with Stainless Steel body, reinforced RTFE ball seat, Graphite filled body and neck seals and ISO mounting top.
Benefiting from a one piece design the Mars Series 99 is ATEX approved with an antistatic spring loaded 'stem-to-ball' and 'stem-to-body' fitted as standard.
Investment cast with low torque.
Technical specification
- End Connection
- Wafer Pattern
- Body Material
- Stainless Steel
- Seat Material
- Reinforced RTFE
- Size
- 1" (DN25), 1 1/2" (DN40), 2" (DN50), 3" (DN80), 4" (DN100)
- Design
- 1 Piece, Full Bore, Fire Safe
- Industry / Approvals
- ATEX
- Lever
- Manual Lockable Lever
- Temperature Range
- -20°C to 180°C
- Pressure
- ANSI 150 Rated
- Actuatable?
- Yes - ISO Mounting Pad
