Mars

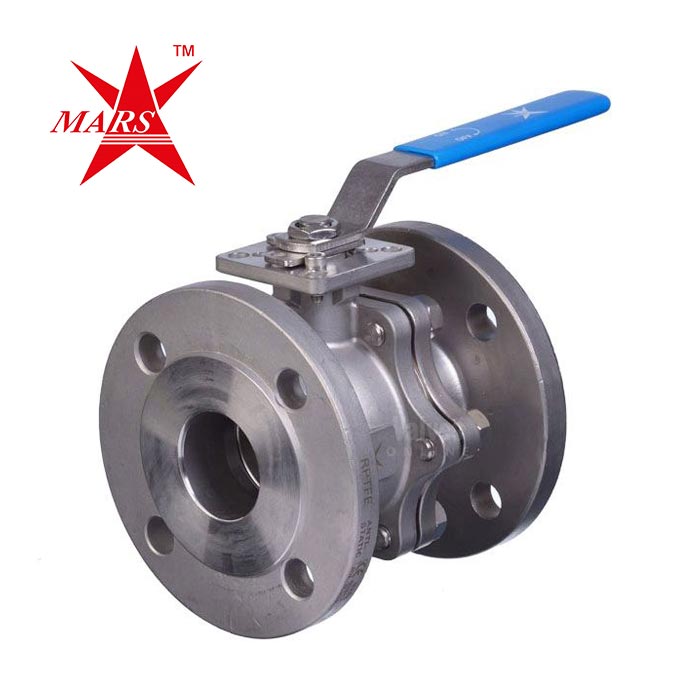

Mars Series 94D Flanged ANSI 150 Ball Valve
SKU BV5181
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars 94D-10 ANSI 150 Ball Valve
- Stainless Steel Body
- Flanged ANSI 150
- Full Bore, Two Piece
- RPTFE Seats
- Sizes: 1/2" to 4"
- Temperature range: -20 °C to 180°C
- ISO Moutning Pad for Actuation
Description
The Mars Series 94D-10 is probably one of the most popular and commonly requested flanged ball valves we offer and one that is used throughout many different industries.
Offering both quality and economy this 2 piece full flow ball valve is manufactured in stainless steel and flanged to ANSI 150. The valve is equipped with an ISO mounting top for ease of actuation but is also supplied with a lockable lever handle.
RPTFE Seats, self adjusting stem sealing and anti blow out stem are among the added benefits of this valve. Sizes range from 1/3" up to 4" (DN15 – DN100).
Technical specification
- End Connection
- Flanged ANSI 150
- Body Material
- Stainless Steel
- Seat Material
- RPTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 2 Piece, Full Bore
- Lever
- Manual Lever
- Temperature Range
- -20°C to 180°C
- Pressure
- ANSI 150 Rated
- Actuatable?
- Yes - features ISO Top Mounting Pad
