Mars

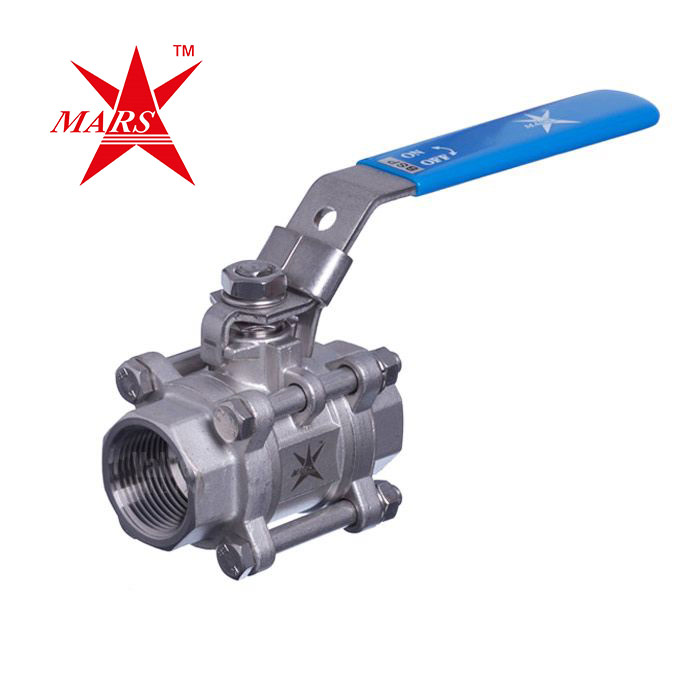

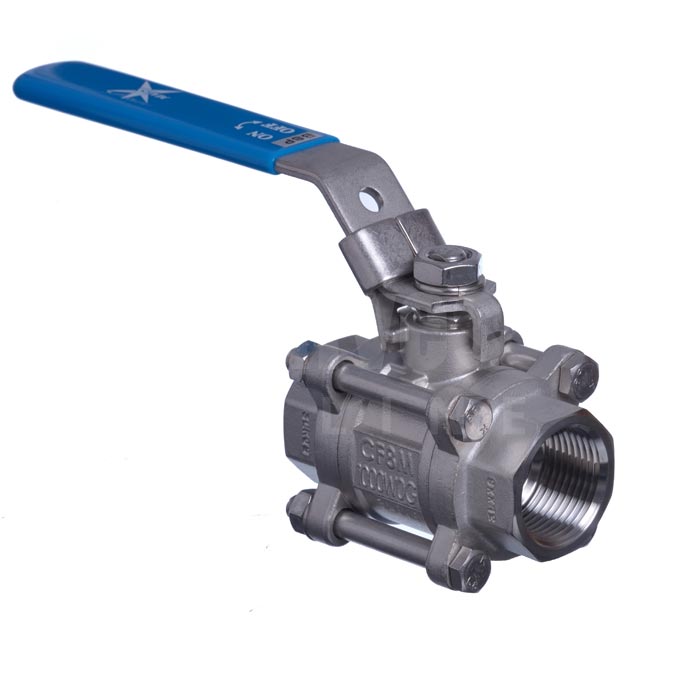

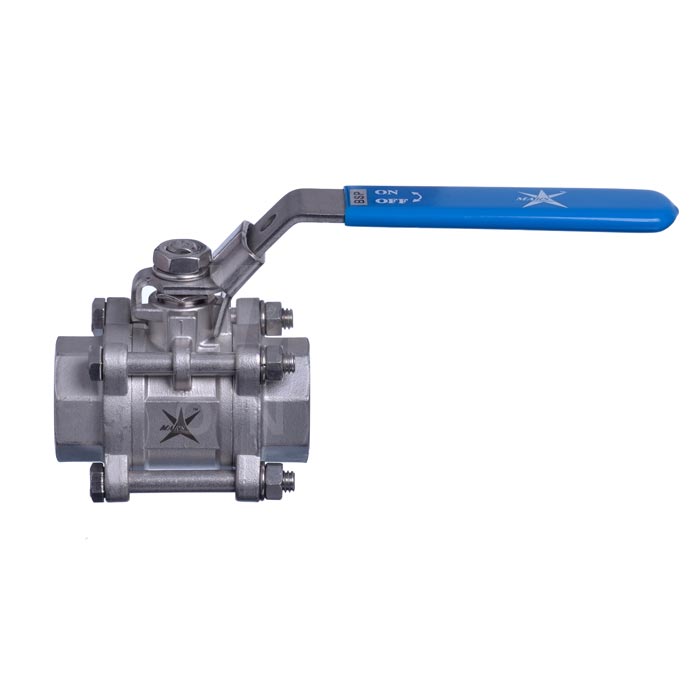

Mars Series 50 Stainless Steel Steam Isolation Ball Valve
SKU BV5111
from£29.02ex VAT Not the right one? Identify your valve by photo
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
1
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars Series 50
- Steam Rated Carbon Filled R-PTFE Seats
- Full Bore, with Lockable Manual Lever
- Stainless Steel CF8M 316 Body
- Screwed BSP, Socket Weld, Butt Weld or NPT
- Three piece, fully maintainable
- Sizes: 1/4" to 4"
- Temperature range: -20°C to +200°C
- Max pressure: 1000 PSI (1/4" to 2") and 800 PSI (2 1/2" to 4")
Description
Mars Series 50 High Temperature Ball Valve is a fully maintainable three piece, full bore ball valve; providing a cost-effective solution for 'shut-off' and isolation of low temperature steam duty and medium flows.
A general purpose ball valve that’s reliable. Stainless Steel body and Carbon Filled PTFE seat.
Features a blow-out proof stem and insulated grip, lockable lever handle.
Technical specification
- End Connection
- BSP, NPT, Socket Weld, Butt Weld OD
- Body Material
- Stainless Steel
- Seat Material
- Carbon Filled R-PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Full Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process, High Temperature
- Lever
- Lockable Manual Lever
- Temperature Range
- -20°C to +200°C
- Pressure
- Up to 1000 PSI (1/4" to 2") & 800 PSI (2 1/2" to 4")
- Actuatable?
- No - Manual Operation Only
