Mars

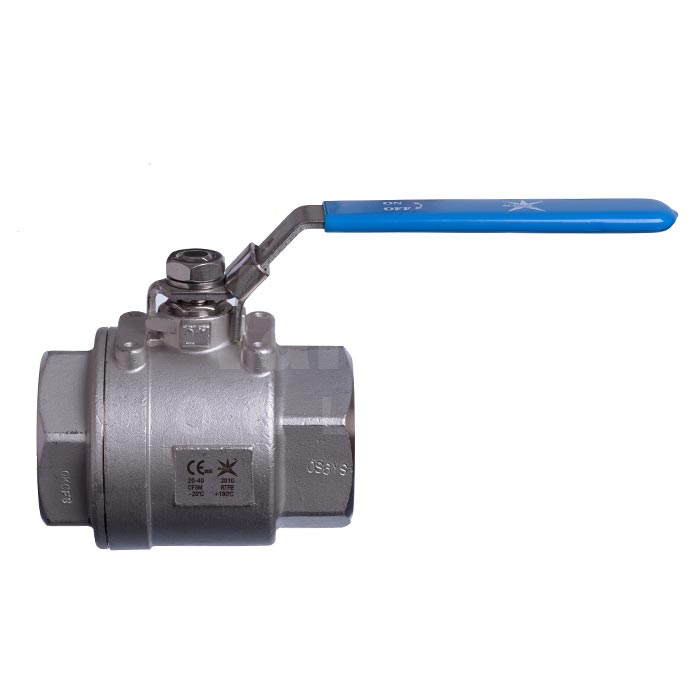

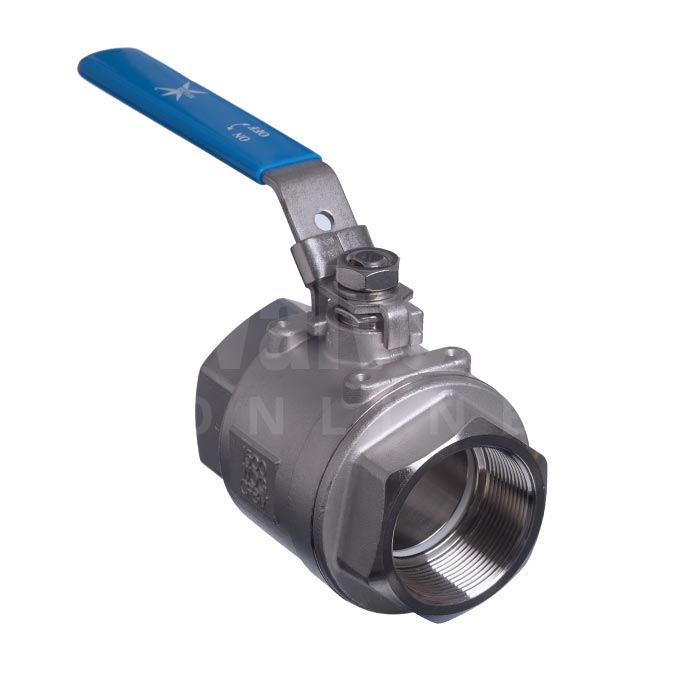

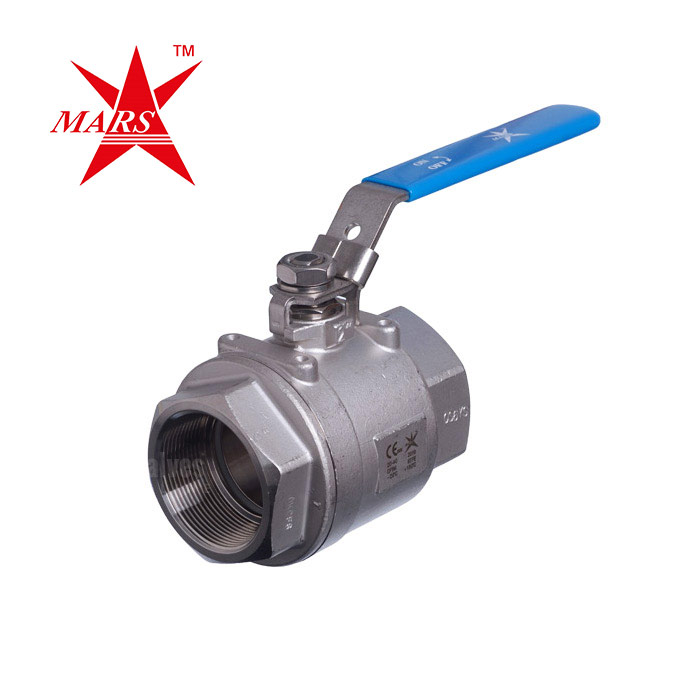

Mars Series 20-40 2 Piece Stainless Steel Ball Valve
SKU BV5107
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- 2 Piece, Heavy Duty Ball Valve
- CF8M Stainless Steel Body
- Screwed BSP or NPT
- 1/4" to 2"
- Full Bore
- On/Off Operation
- Lockable Lever
- Temperature: -20°C to +200°C
- Pressure: 2000 PSI (1/4" to 1") & 1500 PSI (1 1/4" to 2")
- ATEX Approved
Description
Mars Ball Valve Series 20-40 is a non-maintainable heavy duty two piece, full bore, stainless steel ball valve with screwed end connections.
Suitable for general isolating valve, providing safe operation for both general and industrial chemical applications.
A reliable screwed ball valve with CF8M Stainless Steel body and reinforced PTFE seat.
Reinforced seat ensures tight 'shut-off' and versatility over a wide range of media.
Features a blow-out proof stem and insulated grip, lockable lever handle.
Investment cast with low torque.
Technical specification
- End Connection
- BSP, BSPP, NPT
- Body Material
- Stainless Steel
- Seat Material
- Reinforced PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 2 Piece, Full Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process
- Lever
- Lockable Manual Lever
- Temperature Range
- -20°C to +200°C
- Pressure
- Up to 2000 PSI (1/4" to 1") & 1500 PSI (1 1/4" to 2")
- Actuatable?
- No - Manual Operation Only
