Mars

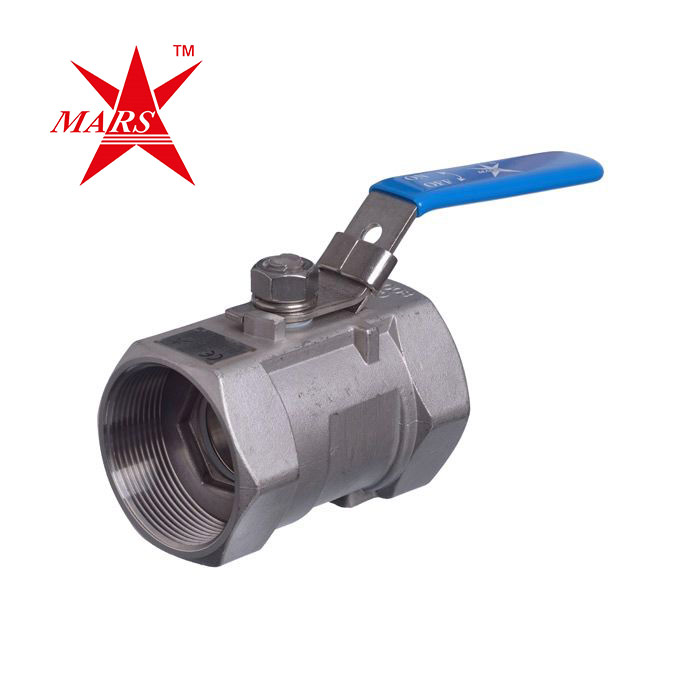

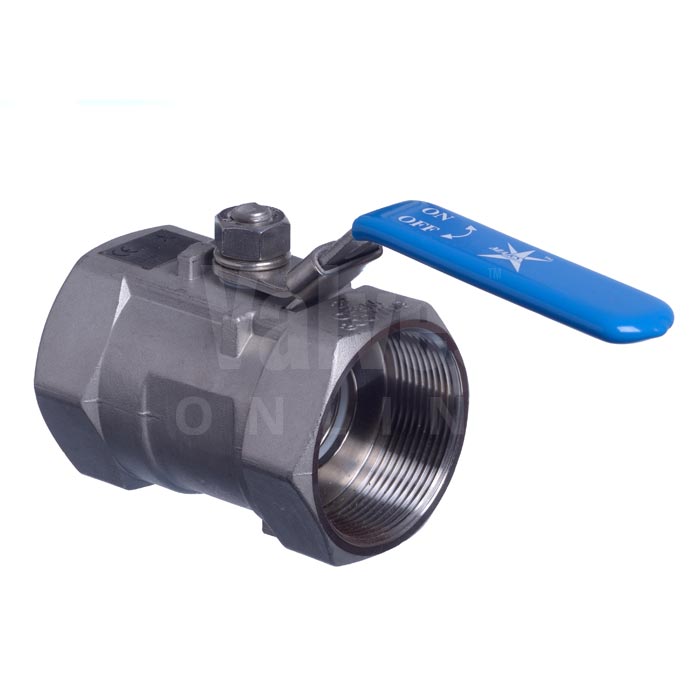

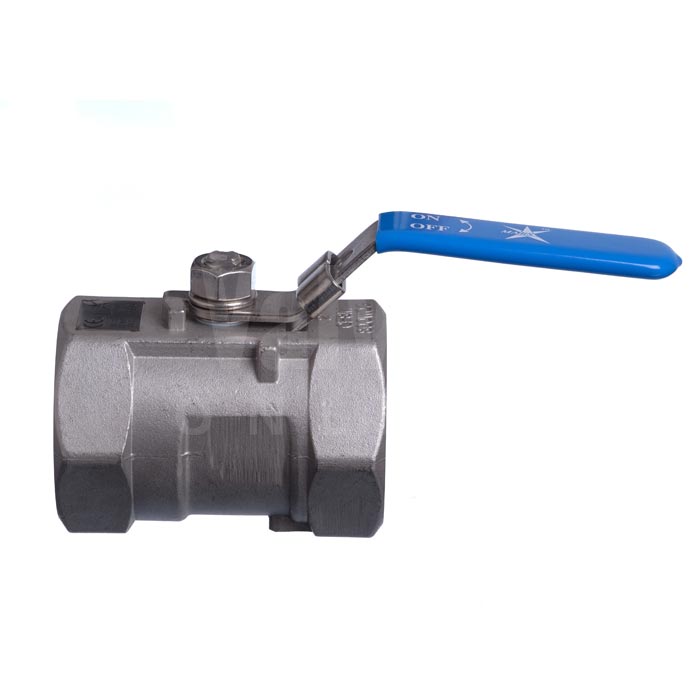

Mars Series 10-10 1 Piece Stainless Steel Ball Valve
SKU BV5106
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- 1 Piece Mars Series 10-10 Ball Valve
- Sizes: 1/4" to 2"
- Reduced bore, Locking Lever
- CF8M Stainless Steel body
- Screwed BSP or NPT end connections
- Temperature range: -20°C to +180°C
- Operating pressure: 800 PSI WOG
Description
Mars Ball Valve Series 10-10 1 Piece stainless steel ball valve is a non-maintainable one piece, reduced bore, female/female ball valve; providing safe operation for both general and industrial chemical applications.
An economical, compact and reliable ball valve with CF8M Stainless Steel body and PTFE seat.
Used to 'shut-off' medium flows on a wide range of liquid and gaseous duties including drain and blow down, gauge isolation and test points.
Features a blow-out proof stem and insulated grip, lockable lever handle.
Investment cast with low torque.
Technical specification
- End Connection
- BSP, NPT
- Body Material
- Stainless Steel
- Seal Material
- PTFE
- Seat Material
- PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 1 Piece, Reduced Bore, Female x Female
- Industry / Approvals
- General / Industrial / Process
- Lever
- Lockable Manual Lever
- Temperature Range
- -20°C to +180°C
- Pressure
- Up to 800 PSI WOG
- Actuatable?
- No - Manual Operation Only
