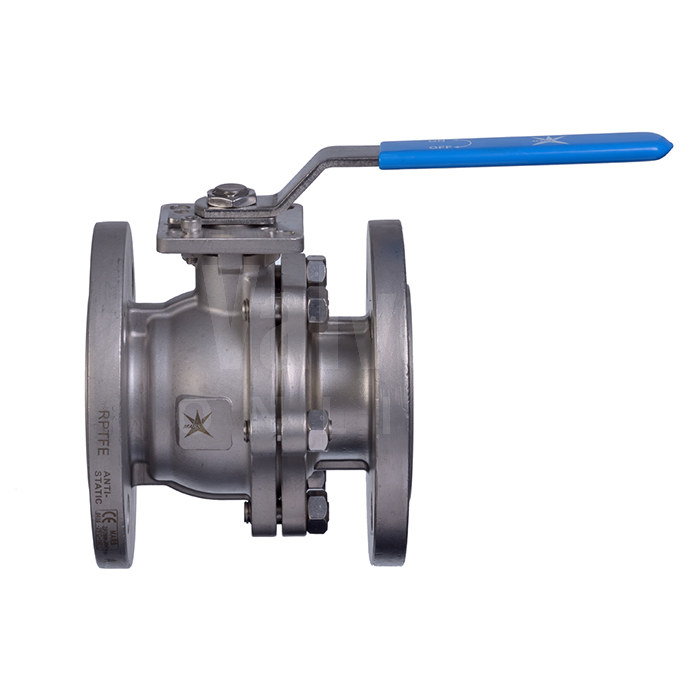

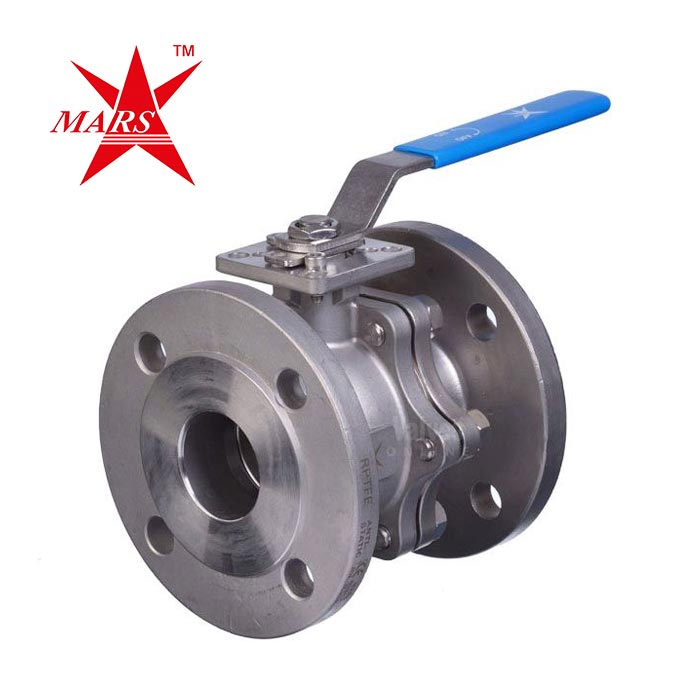

Mars Ball Valve Series 94D Flanged PN16 Direct Mount
SKU BV5120
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars 94D Ball Valve
- Stainless Steel Body
- Flanged PN16 End Connection
- Full Bore, Two Piece
- Reinforced PTFE Seat
- Sizes: 1/2" to 4"
- Temperature range: -20 °C to 180°C
- Operating pressure: PN16 Rated
- ISO Moutning Pad for Actuation
Description
The Mars Series 94D-40 is probably one of the most popular and commonly requested flanged ball valves we offer and one that is used throughout many different industries.
Offering both quality and economy this 2 piece full flow ball valve is manufactured in stainless steel and flanged to PN16. The valve is equipped with an ISO mounting top for ease of actuation but is also supplied with a lockable lever handle.
RPTFE Seats (50% SS Filled PTFE Seats Option on request), self adjusting stem sealing and anti blow out stem are among the added benefits of this valve. Sizes range from ½” up to 4" (DN15 – DN100).
Our Mars Ball Valve Series 94D Flanged PN16 Direct Mount provides safe operation for both general and industrial chemical applications. A PN16 flanged, full bore, two piece valve with split Stainless Steel body, reinforced PTFE seat and ISO mounting top for actuation.
Technical specification
- End Connection
- Flanged PN16
- Body Material
- Stainless Steel
- Seat Material
- Reinforced PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 2 Piece, Full Bore
- Industry / Approvals
- General / Industrial / Process
- Lever
- Lockable Manual Lever
- Temperature Range
- -20°C to 180°C
- Pressure
- PN16 Rated
- Actuatable?
- Yes - features ISO Top Mounting Pad
