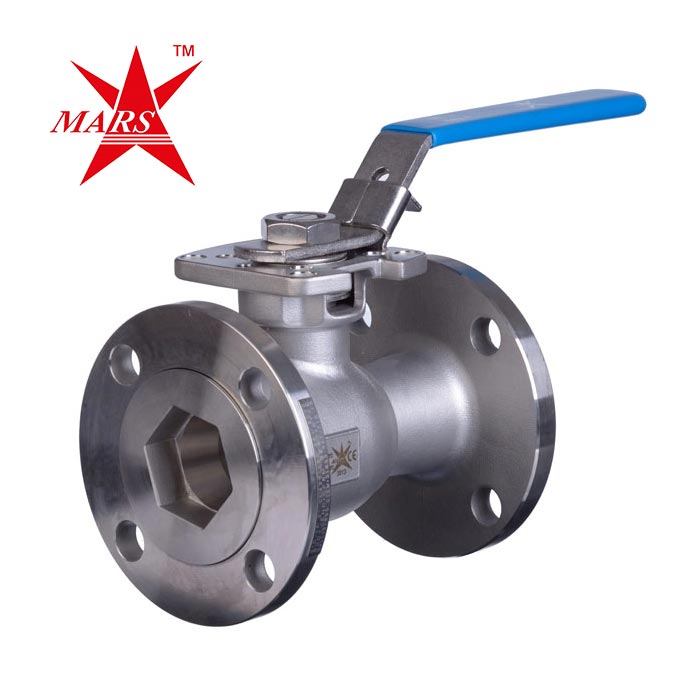

Mars Ball Valve Series 91D 1 Piece Reduced Bore Flanged ANSI 150
SKU BV5121
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Body material: Stainless Steel
- End connection: Flanged ANSI 150
- Reduced bore, high performance
- Reinforced PTFE seat, graphite seal and ISO mounting top.
- Sizes: 1/2" to 6"
- Temperature range: -20 °C to 200°C
- Operating pressure: Class 150
- ATEX approved
- Fire safe
Description
Our Mars Ball Valve Series 91D ball valve is a 1 piece, reduced bore, high performance ATEX approved valve with Flanged ANSI 150 end connections, stainless steel body, reinforced PTFE seat, graphite seal and ISO mounting top for actuation. Provides safe operation for both general and industrial chemical applications and hazardous environments.
Benefiting from a one piece design the Mars Series 91D is ATEX approved, Fire Safe certified to API607 4th edition with an antistatic spring loaded 'stem-to-ball' and 'stem-to-body' fitted as standard.
Investment cast with low torque.
Technical specification
- End Connection
- Flanged ANSI 150
- Body Material
- Stainless Steel
- Seal Material
- Graphite
- Seat Material
- Reinforced PTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 6" (DN150)
- Design
- 1 Piece, Reduced Bore, Fire Safe
- Industry / Approvals
- ATEX, Firesafe / Antistatic
- Lever
- Lockable Manual Lever
- Temperature Range
- -20 °C to 200°C
- Pressure
- ANSI 150 Rated
- Actuatable?
- Yes - features ISO Direct Mounting Pad
