Mars

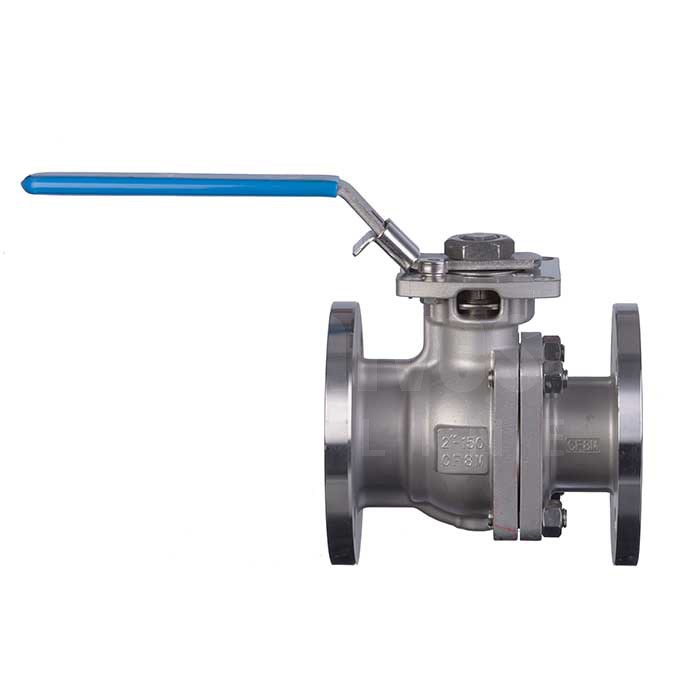

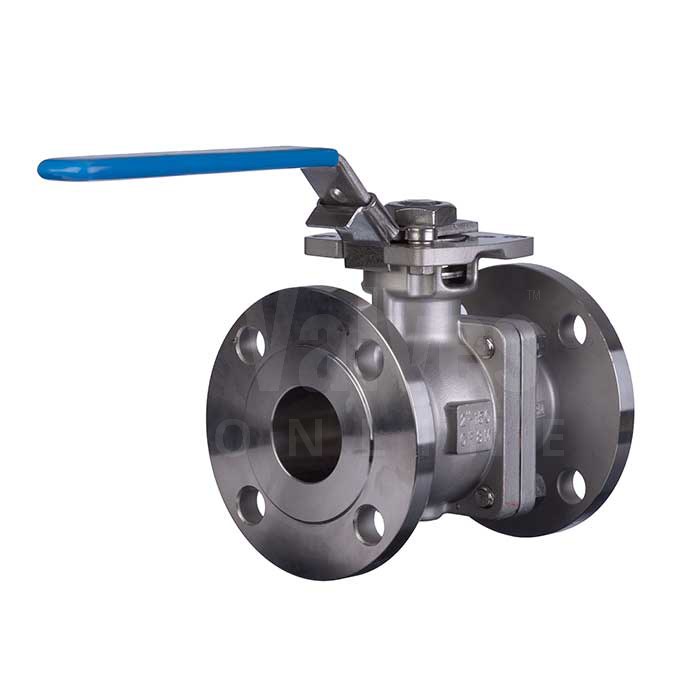

Mars Ball Valve Series 90D Fire Safe Anti Static Flanged PN40
SKU BV5125
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars 90D PN40 Ball Valve
- Stainless Steel Body
- Reinforced RTFE seat
- Flanged PN40
- Sizes: 1/2" to 6"
- Temperature range: -20 °C to 180°C
- ATEX Approved
- Fire Safe, Anti Static
Description
Our Mars Ball Valve Series 90D Fire Safe Anti Static Flanged PN40 provides safe operation for both general and industrial chemical applications and hazardous environments. A full bore high performance ATEX approved valve with Stainless Steel body, reinforced RTFE ball seat, Graphite filled body and neck seals and an ISO mounting top for actuation.
Benefiting from a split body, two piece design the Mars Series 90D is ATEX approved, Fire Safe certified to API607 4th edition with an antistatic spring loaded 'stem-to-ball' and 'stem-to-body' fitted as standard.
Investment cast with low torque.
Technical specification
- End Connection
- Flanged PN40
- Body Material
- Stainless Steel
- Seal Material
- Graphite
- Seat Material
- Reinforced RTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 6" (DN150)
- Design
- 2 Piece, Full Bore, Fire Safe
- Industry / Approvals
- ATEX
- Lever
- Manual Lockable Lever
- Temperature Range
- -20°C to 180°C
- Pressure
- PN40 Rated
- Actuatable?
- Yes - ISO Mounting Pad
