Mars

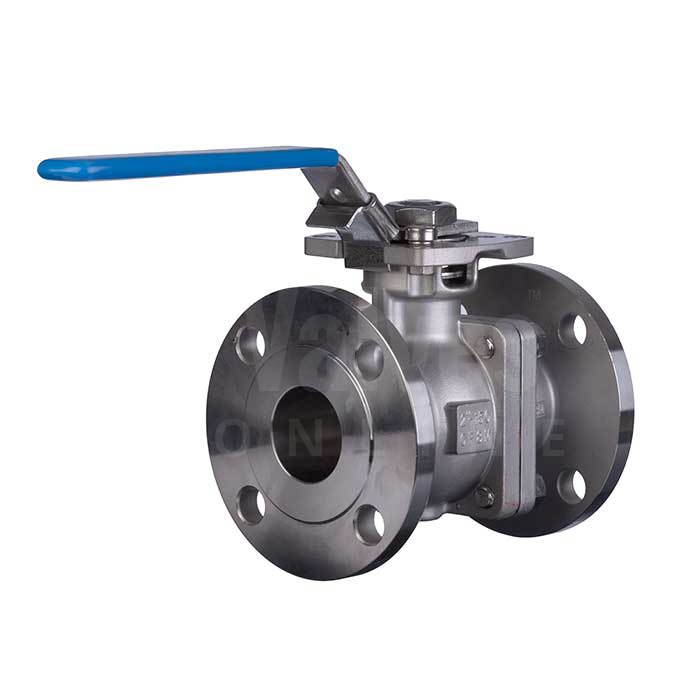

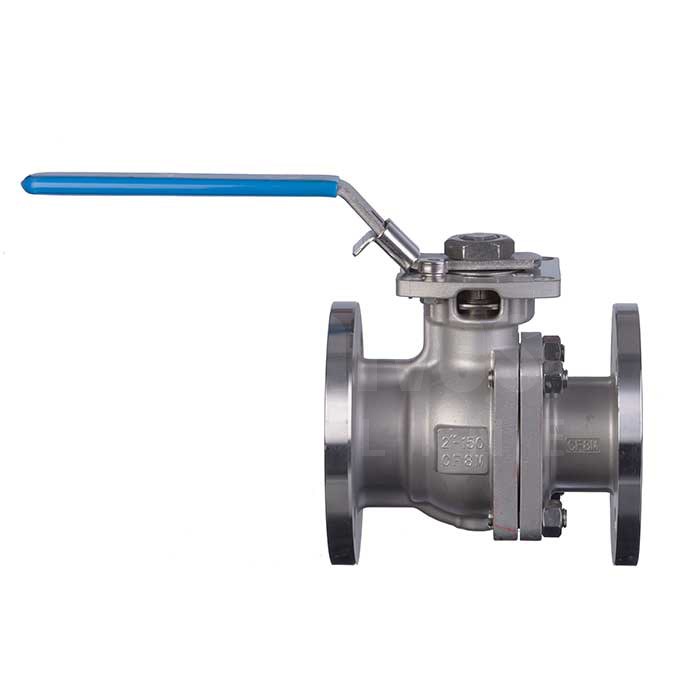

Mars Ball Valve Series 90D Fire Safe Anti Static Flanged ANSI 150
SKU BV5126
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 6" (DN150)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars 90D ANSI 150 Ball Valve
- Stainless Steel Body
- Reinforced RTFE seat
- Flanged ANSI 150
- Sizes: 1/2" to 6"
- Temperature range: -20 °C to 180°C
- ATEX Approved
- Fire Safe, Anti Static
Description
Our Mars Ball Valve Series 90D Fire Safe Anti Static Flanged ANSI 150 provides safe operation for both general and industrial chemical applications and hazardous environments. A full bore high performance ATEX approved valve with Stainless Steel body, reinforced RTFE ball seat, Graphite filled body and neck seals and an ISO mounting top for actuation.
Benefiting from a split body, two piece design the Mars Series 90D is ATEX approved, Fire Safe certified to API607 4th edition with an antistatic spring loaded 'stem-to-ball' and 'stem-to-body' fitted as standard.
Investment cast with low torque.
Technical specification
- End Connection
- Flanged ANSI 150
- Body Material
- Stainless Steel
- Seal Material
- Graphite
- Seat Material
- Reinforced RTFE
- Size
- 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 6" (DN150)
- Design
- 2 Piece, Full Bore, Fire Safe
- Industry / Approvals
- ATEX
- Lever
- Manual Lockable Lever
- Temperature Range
- -20°C to 180°C
- Pressure
- ANSI 150 Rated
- Actuatable?
- Yes - ISO Mounting Pad
