Mars

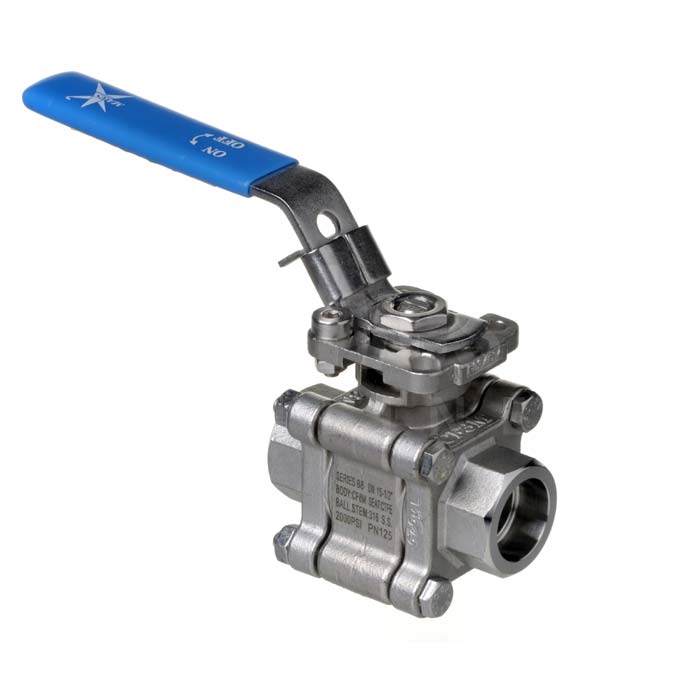

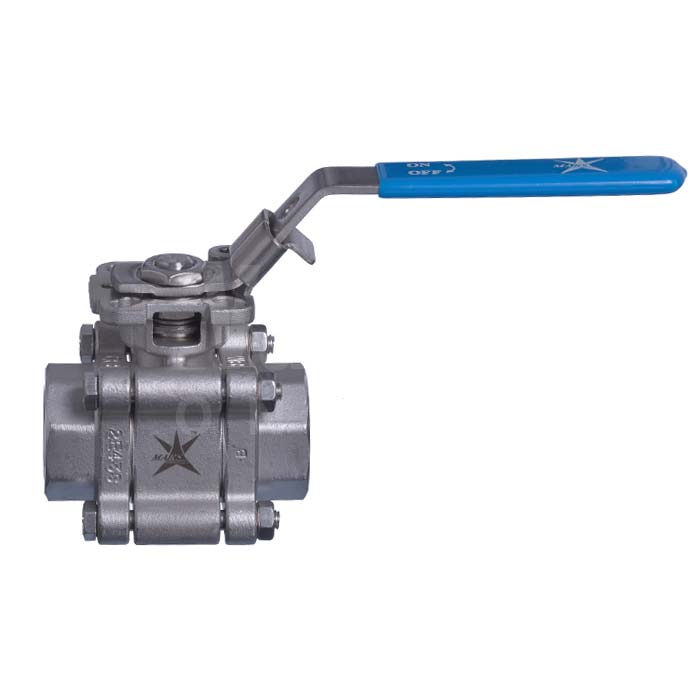

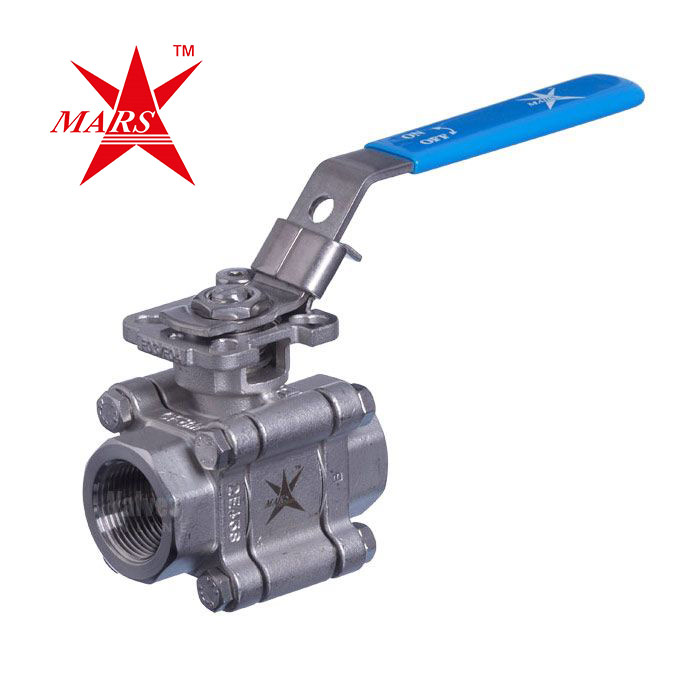

Mars Ball Valve Series 88 Heavy Duty Ball Valve
SKU BV5114
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars Series 88
- Heavy Duty, Three Piece, Direct Mount Ball Valve
- Stainless Steel Body
- Screwed BSPP, Socket Weld, Butt Weld or NPT
- Carbon filled reinforced PTFE seat and seal
- Sizes: 1/4" to 4"
- Temperature range: -20°C to +200°C
- Operating pressure: 2000 PSI (1/4" to 1"), 1500 PSI (1 1/4" to 2") and 1000 PSI (2 1/2" to 4")
- ATEX approved
Description
Mars Ball Valve Series 88, 3 Piece, Heavy Duty, Direct Mount Ball Valve; particularly useful for manual isolation.
A high performance, fully maintainable ball valve with Stainless Steel body and Carbon filled reinforced PTFE seat and seal. Available in full or reduced bore.
The Mars Series 88 benefits from a unique encapsulated body bolt design and direct mount ISO mounting top for actuation.
Body seals are easy to replace and / or maintain in-line without the need for disassembly, simply by dropping the swing out body.
Suitable for manual on / off or V control.
Technical specification
- End Connection
- BSP, NPT, Socket Weld, Butt Weld OD
- Body Material
- Stainless Steel
- Seat Material
- Carbon Filled Reinforced PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
- Design
- 3 Piece, Reduced Bore, Full Bore, Fire Safe, Female x Female
- Industry / Approvals
- ATEX
- Lever
- Lockable Manual Lever
- Temperature Range
- -20°C to +200°C
- Pressure
- Up to 2000 PSI (1/4" to 1"), 1500 PSI (1 1/4" to 2") & 1000 PSI (2 1/2" to 4")
- Actuatable?
- Yes - features ISO Direct Mounting Pad
