Images are illustrative and may not show every size or variation.
Mars

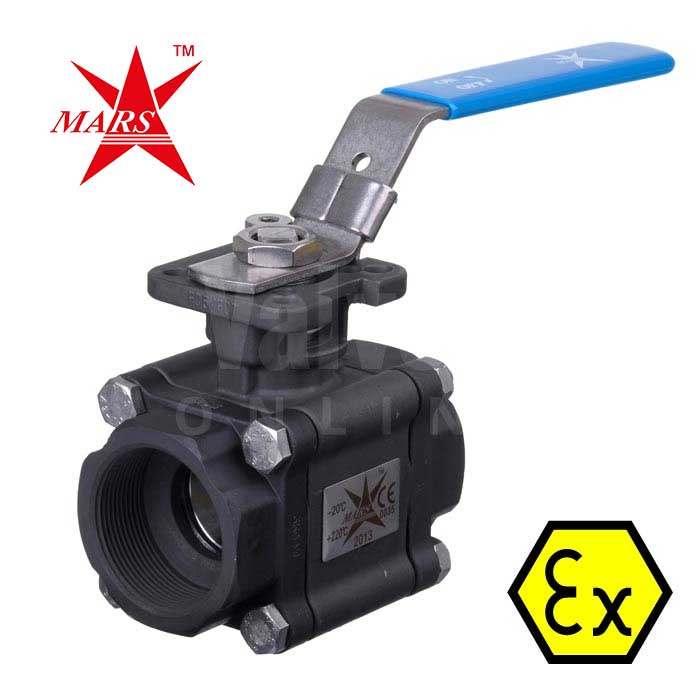

Mars Ball Valve Series 88 Fire Safe Anti Static Carbon Steel
SKU BV5168
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars Series 88 Carbon Steel Ball Valve
- Carbon Steel body
- Reinforced RTFE ball seat
- Graphite filled body and neck seals
- Three Piece, Full Bore
- Screwed BSP, Socket Weld, Butt Weld or NPT end connections
- Sizes: 1/4" to 3"
- ATEX Approved
- Fire Safe, Anti Static
Description
Our Mars Ball Valve Series 88 Fire Safe Anti Static Carbon Steel is a heavy duty, fully maintainable three piece ball valve; for use in hazardous areas. A high performance full bore valve with Carbon Steel body with reinforced RTFE ball seat and Graphite filled body and neck seals.
The Mars Series 88 benefits from a unique encapsulated body bolt design. Body seals are easy to replace and / or maintain in-line without the need for disassembly, simply by dropping the swing out body.
Fire safe certified to API607 (4th edition). Antistatic PED approval. ANSI B16.34. Test to EN10204.
Technical specification
- End Connection
- BSP, NPT, Socket Weld, Butt Weld OD
- Body Material
- Carbon Steel
- Seal Material
- Graphite Filled
- Seat Material
- Reinforced RTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80)
- Design
- 3 Piece, Full Bore, Fire Safe, Female x Female
- Industry / Approvals
- ATEX
- Lever
- Manual Lockable Lever
- Temperature Range
- -20°C to +200°C
- Pressure
- Up to: 2000 PSI (1/4" to 1"), 1500 PSI (1 1/4" to 2"), 1000 PSI (2 1/2" to 4")
- Actuatable?
- Yes - ISO Mounting Pad
