Images are illustrative and may not show every size or variation.
Mars

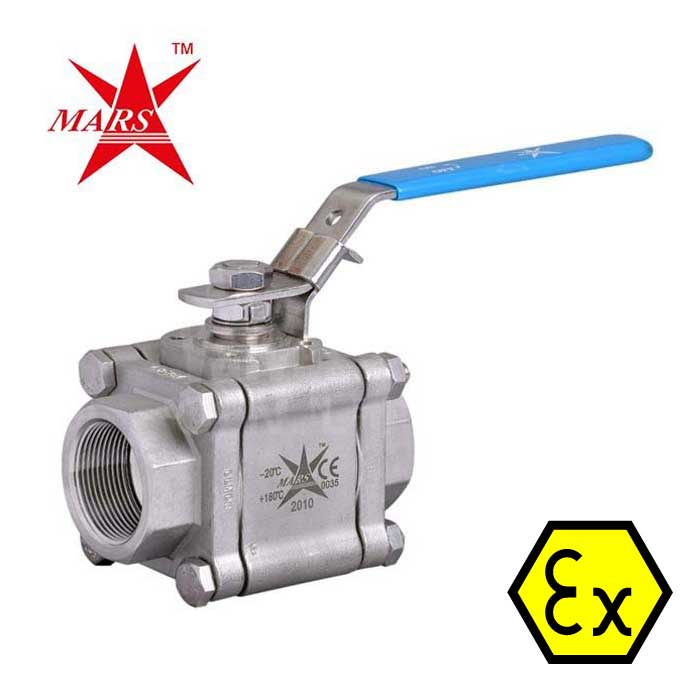

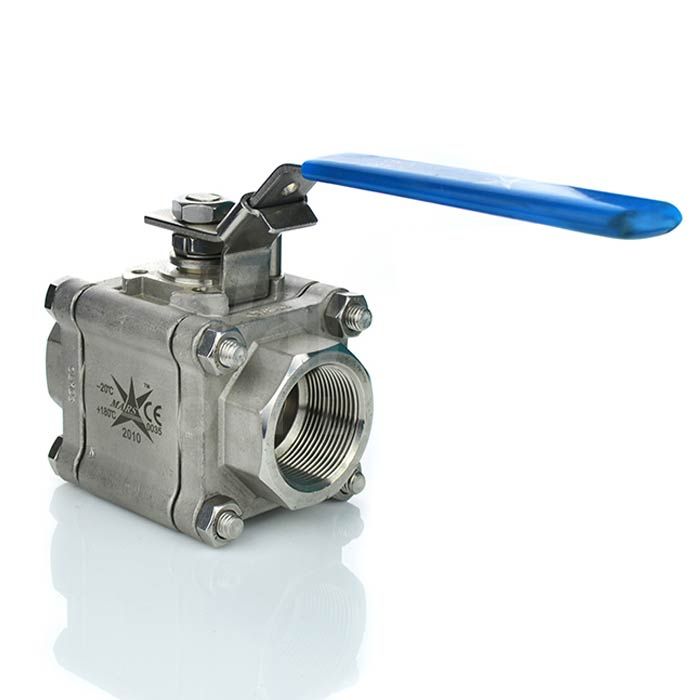

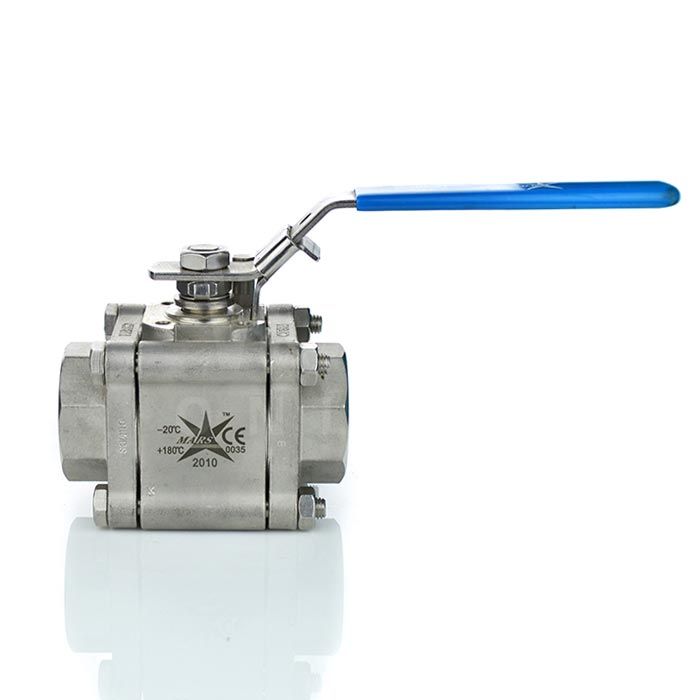

Mars Ball Valve Series 83 Fire Safe Anti Static Stainless Steel
SKU BV5165
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars Series 83 Ball Valve
- Stainless Steel body
- Reinforced RTFE ball seat
- Graphite Filled Body & Neck Seals
- Three Piece, Full or Reduced Bore
- Screwed BSP, Socket Weld, Butt Weld or NPT End Connections
- Sizes: 1/4" to 2 1/2"
- ATEX Approved
- Fire Safe, Anti Static
Description
Our Mars Ball Valve Series 83 Fire Safe Anti Static Stainless Steel is a heavy duty, fully maintainable three piece ball valve; for use in hazardous areas. A high performance full or reduced bore valve with Stainless Steel body with reinforced RTFE ball seat and Graphite filled body and neck seals.
The Mars Series 83 benefits from a unique encapsulated body bolt design. Body seals are easy to replace and / or maintain in-line without the need for disassembly, simply by dropping the swing out body.
This valve has a fire-safe certificate by SwRI (South West research institute TX USA), TUV (Germany) and the latest API 607 4th Edition (reflecting the conditions of a fire in the field). A tremendous advantage throughout the oil and gas, refinery and chemical industries.
Suitable for manual on / off or V control.
Firesafe certified to API607 Rev 6. Antistatic PED approval. ANSI B16.34. Test to EN10204.
Technical specification
- End Connection
- BSP, NPT, Socket Weld, Butt Weld OD
- Body Material
- Stainless Steel
- Seal Material
- Graphite Filled
- Seat Material
- Reinforced RTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65)
- Design
- 3 Piece, Reduced Bore, Full Bore, Fire Safe, Female x Female
- Industry / Approvals
- ATEX, Firesafe / Antistatic
- Lever
- Manual Lockable Lever
- Temperature Range
- -20°C to +200°C
- Pressure
- Up to: 2000 PSI (1/4" to 1"), 1500 PSI (1 1/4" to 2 1/2")
- Actuatable?
- No - Manual Only
