Images are illustrative and may not show every size or variation.
Mars

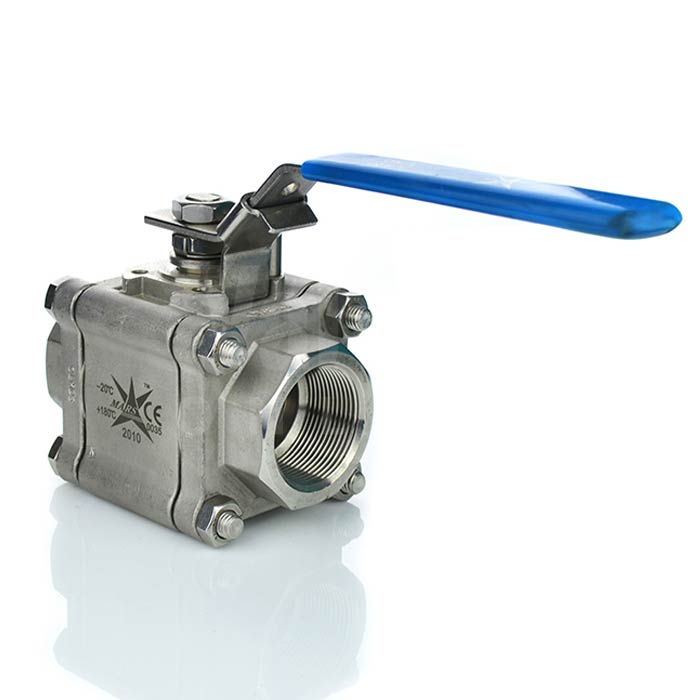

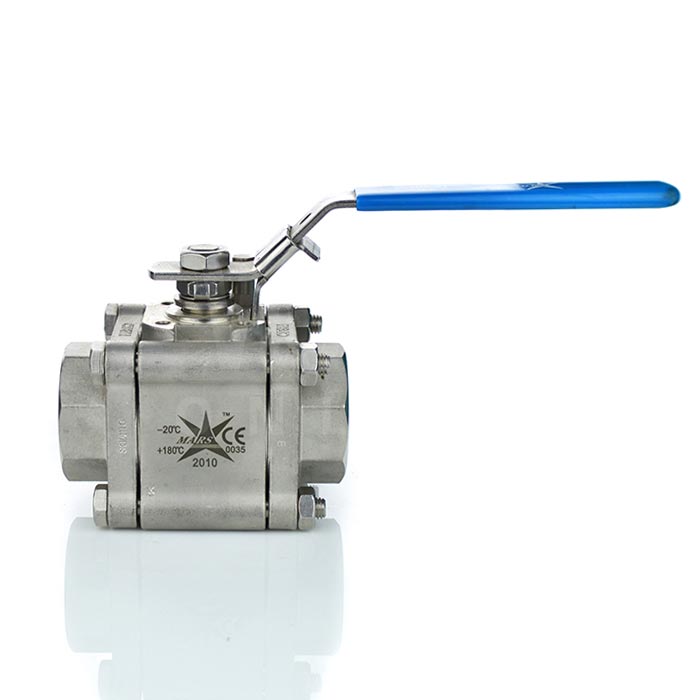

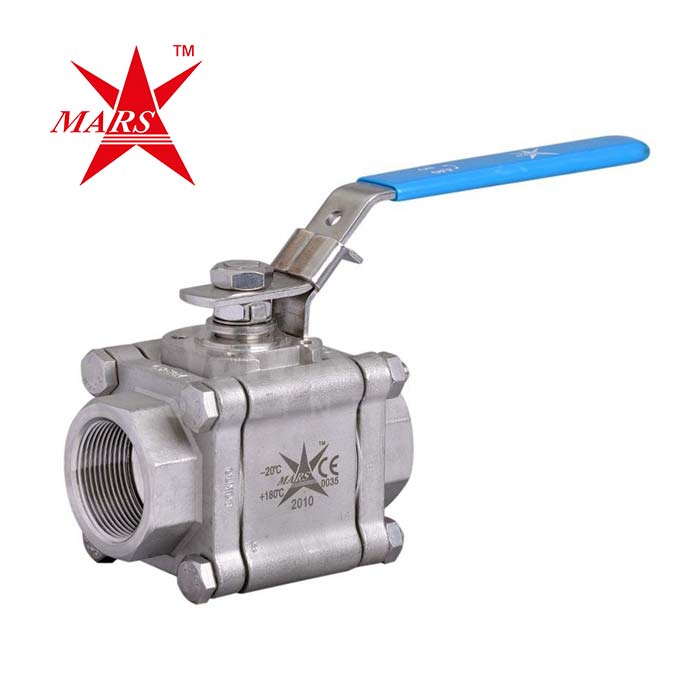

Mars Ball Valve Series 83 3 Piece Heavy Duty Manual Only
SKU BV5113
Sizes: 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Checking online availability…
- Next-day UK delivery on stock items
- Trade and bulk pricing available on request
- Mars Series 83 Heavy Duty Ball Valve
- Stainless Steel Body
- For Manual Operation, Lever Included
- BSP, Socket Weld, Butt Weld or NPT
- Heavy Duty, Three Piece
- RPTFE Seat
- Sizes: 1/4" to 2 1/2"
- Temperature range: -20°C to +200°C
- Operating pressure: 1/4" to 1" 2000 PSI and 1 1/4" to 2 1/2" 1500 PSI
- ATEX approved 2014/34/EU
Description
The Mars Ball Valve Series 83 in Stainless steel is a heavy duty, fully maintainable three piece full and reduced port ball valve. It is suitable for use where a higher performance is required. RPTFE seats are fitted as standard but can be fitted with firesafe seats for hazardous applications.
The Mars Series 83 benefits from a unique encapsulated body bolt design. Body seals are easy to replace and / or maintain in-line without the need for disassembly, simply by dropping the swing out body.
Technical specification
- End Connection
- BSP, NPT, Socket Weld, Butt Weld OD
- Body Material
- Stainless Steel
- Seat Material
- Carbon Filled PTFE
- Size
- 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
- Design
- 3 Piece, Reduced Bore, Full Bore, Fire Safe, Female x Female
- Industry / Approvals
- ATEX, Firesafe / Antistatic
- Lever
- Lockable Manual Lever
- Temperature Range
- -20°C to +200°C
- Pressure
- Up to 2000 PSI (1/4" to 1") & 1500 PSI (1 1/4" to 2 1/2")
- Actuatable?
- No - Manual Operation Only
